Description
Product Overview

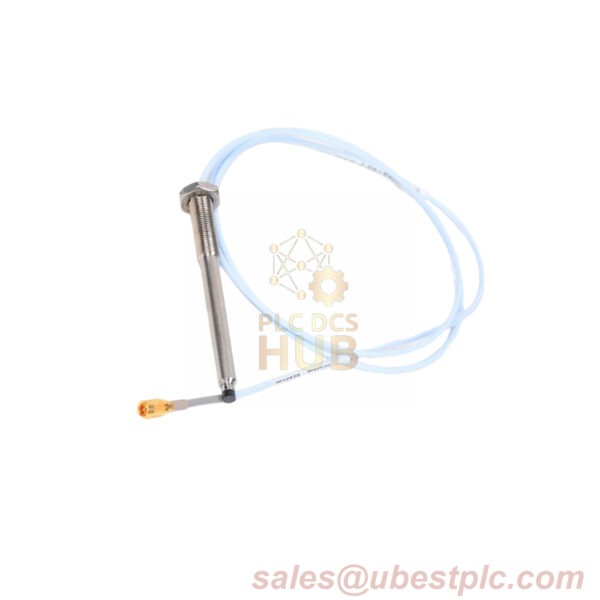

The Bently Nevada 3300 XL 8 mm Reverse Mount Probe (P/N: 330105-02-12-50-12-CN) combines extended reach, FluidLoc cable sealing, and country-specific certifications for global industrial deployments. Designed for reverse-mount installations, this 5.0-meter probe features a rugged stainless steel body, Viton® O-ring sealing, and Miniature ClickLoc connectivity. It operates in extreme temperatures (-52°C to +260°C) and complies with regional safety standards (code CN), making it ideal for fluid-sensitive environments. Optional COO documentation streamlines international logistics.
Technical Specifications for 330105-02-12-50-12-CN
| Category | Details |
|---|---|
| Brand/Model | Bently Nevada 3300 XL Reverse Mount Probe (330105) |
| Suffix Breakdown | 330105-02-12 – 3300 XL 8 mm Reverse Mount Probes 50: 5.0m Length; 12: FluidLoc Cable; CN: Country Approval |
| Electrical Performance | |
| – Settling Time | <2 ms for step input (10–90% signal stabilization) |
| – Noise Immunity | <10 mVpp noise in 1 MHz–3 GHz RF environments (EN 55011) |
| – Output Impedance | 75 Ω nominal (matched to triaxial systems) |
| Mechanical Robustness | |
| – Torsional Strength | 15 N•m (133 in•lbf) withstand without deformation |
| – Cable Crush Resistance | 500 N (112 lbf) per 100 mm length (IEC 60529) |
| – Thread Locking | Pre-applied Loctite® 243 for vibration resistance |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
