Description
Description

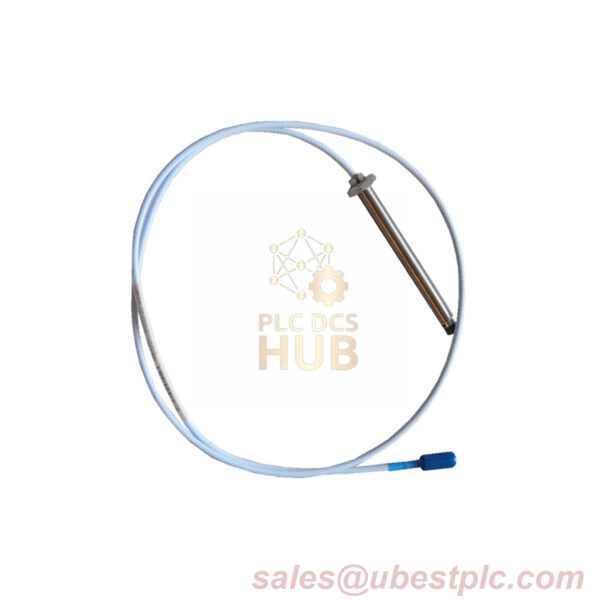

The Bently Nevada 330105-02-12-90-02-05 is an advanced Reverse Mount Probe for precision measurement in extreme industrial environments. With a 9.0-meter cable and Miniature ClickLoc coaxial connector, this probe has reliable signal integrity. Built in the USA, it complies with global safety standards, including CSA, ATEX, and IECEx, making it ideal for hazardous and high-temperature applications.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330105-02-12-90-02-05 |
| Suffix Breakdown | -90 (9.0 m cable), -02 (Miniature ClickLoc connector), -05 (CSA/ATEX/IECEx approvals) |
| Product Type | Reverse Mount Probes |
| Total Length | 9.0 meters (29.5 feet) |
| DC Resistance (RPROBE) | 9.87 ± 0.50 Ω at 9.0 m |
| Frequency Response | 10 Hz to 10 kHz (±3 dB) |
| Insulation Resistance | ≥100 MΩ at 500 V DC |
| Vibration Resistance | 10 g peak (20 Hz to 2 kHz, 3 axes) |
| Shock Resistance | 50 g (11 ms duration, half-sine wave) |
| EMC Compatibility | Compliant with EN 61326-1 (industrial electromagnetic environments) |
| Cable Material | Fluoropolymer-jacketed for chemical/abrasion resistance |
| Ingress Protection | IP67 (connector mated) |
| Temperature Range | Standard: -52°C to +177°C; Extended: Tip: -52°C to +218°C, Cable: -51°C to +260°C |
| Pressure Seal | Viton® O-ring (non-pressure-tested) |
| Weight | 323 g/m (11.4 oz/ft) |
| Hazardous Area Approvals | CSA, ATEX, IECEx (Class I/II/III, Zone 0/2) |
| Thread Engagement | 3/8-24 thread, max 0.563 in |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
