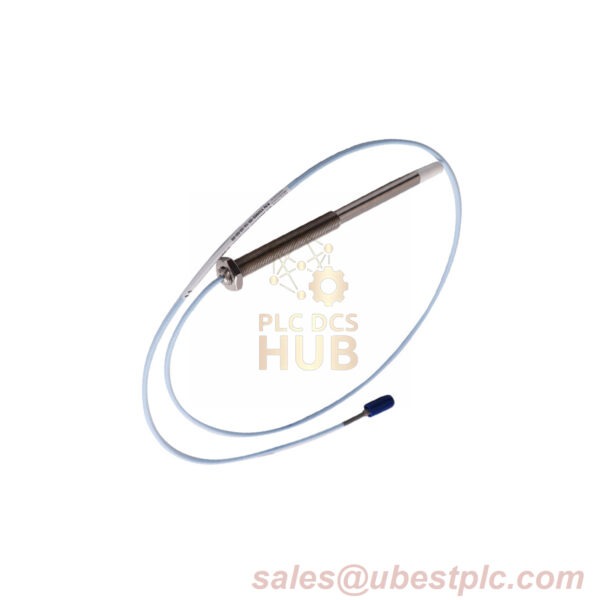

The Bently Nevada 330105-02-12-90-12-00 is a versatile Reverse Mount Probe designed for demanding industrial applications. Equipped with a 9.0-meter FluidLoc cable and Miniature ClickLoc connector, this probe combines extended reach with optional fluid-resistant protection.

Technical Data

ParameterSpecification
BrandBently Nevada
Model330105-02-12-90-12-00
Suffix Breakdown90 (9.0 m cable),

12 (FluidLoc cable + ClickLoc connector),

00 (no approvals)

Product TypeReverse Mount Probes
DC Resistance (RPROBE)9.87 ± 0.50 Ω at 9.0 m
Capacitance (Cable)85 pF/m (±10%) at 1 kHz
Inductance (Cable)0.65 µH/m (±5%)
Bend Radius6x cable diameter (minimum dynamic bending)
Tensile Strength150 N (33.7 lbf) maximum pull force
Salt Spray Resistance500 hours (per IEC 60068-2-11)
Response Time<2 ms (10% to 90% step input)
Phase Angle-45° to +45° (over operating frequency range)
Installation Torque2.5 N·m (22 in-lb) for probe thread engagement
Cable Jacket ColorBlack with laser-etched part number
EMI/RFI Shielding>90 dB attenuation (50 Hz to 1 GHz)
RoHS ComplianceYes (Directive 2011/65/EU)
Temperature RangeStandard: -52°C to +177°C; Extended: Tip: -52°C to +218°C, Cable: -51°C to +260°C
Pressure SealViton® O-ring (non-pressure-tested)
Weight323 g/m (11.4 oz/ft)
Thread Engagement3/8-24 thread, max 0.563 in

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
