Description

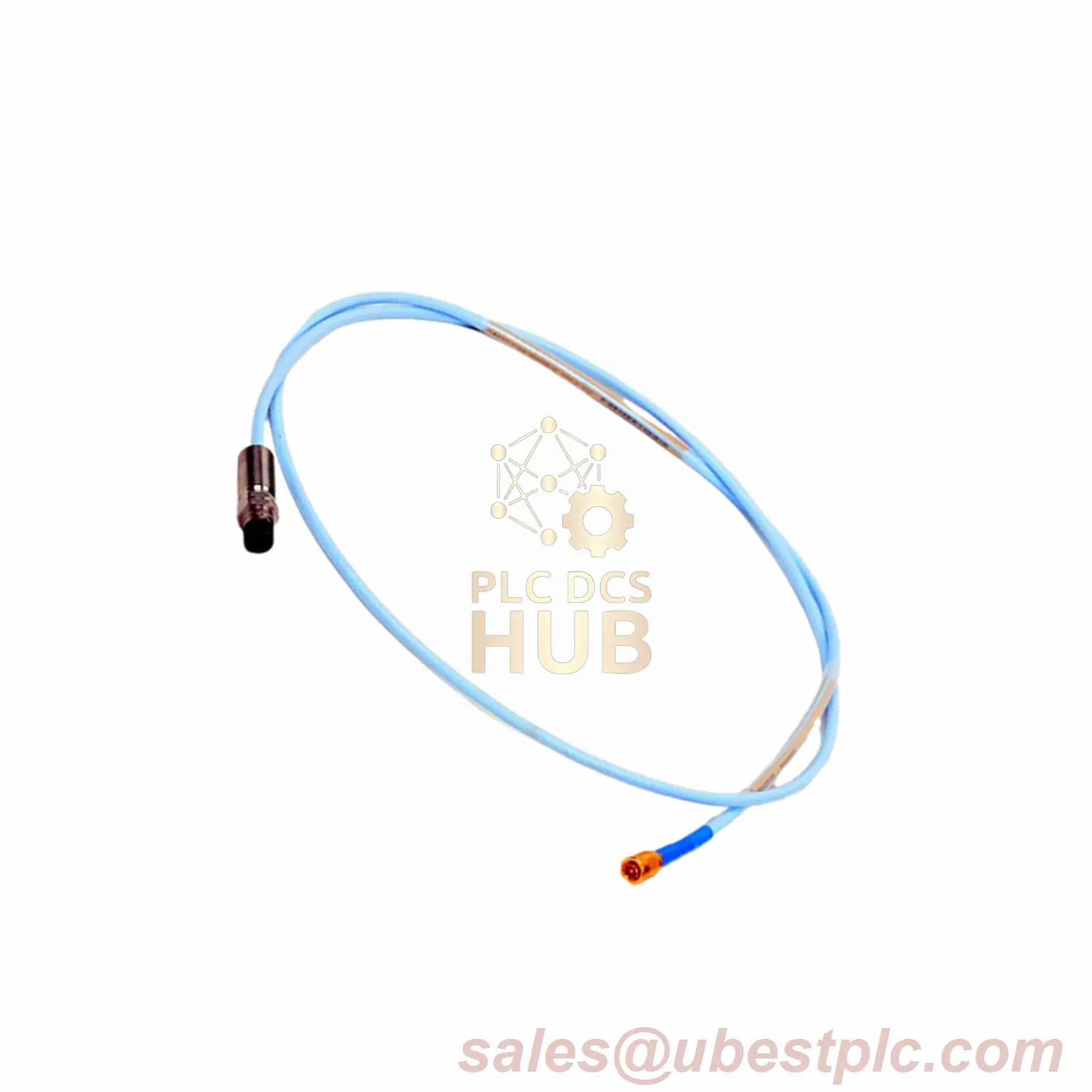

Bently Nevada 3300 XL 8mm Reverse Mount Probe: Precision Industrial Monitoring
Technical Specifications
| Brand/Model | Bently Nevada 330106-05-30-15-02-CN |
| Type | 3300 XL 8mm Reverse Mount Probe |
| Dimensions | M10x1 thread (15mm max engagement) |
| Cable Length | 1.5 meters (4.9 ft) 75Ω triaxial |
| Resistance | 7.73Ω ±0.50 |
| Weight | 323 g/m (11.4 oz) |
| Operating Temp | -52°C to +218°C (tip), -51°C to +260°C (cable) |
Installation Guide
- Max thread engagement: 15mm
- Avoid temperatures below -34°C to prevent seal damage
- Do not exceed 330N tensile strength at probe case
Compatibility & Certifications
- Connects to 75Ω triaxial monitoring systems
- CN certification (Country-Specific Compliance)
- Humidity tested per IEC 68-2-3 (93% RH for 56 days)
Package & Warranty
- 1 x Probe with pre-installed connector
- 12-month manufacturer warranty
- Worldwide shipping: FedEx, UPS, DHL (2-5 business days)
FAQ
Q: Can this probe handle high-pressure environments?
A: Features Viton® O-ring seal – consult us for custom pressure testing.
Q: Is armored cable available?
A: Optional SST armor with FEP jacket (specify when ordering).
Q: What’s the cable insulation material?
A: Standard: FEP, Extended temp: PFA
