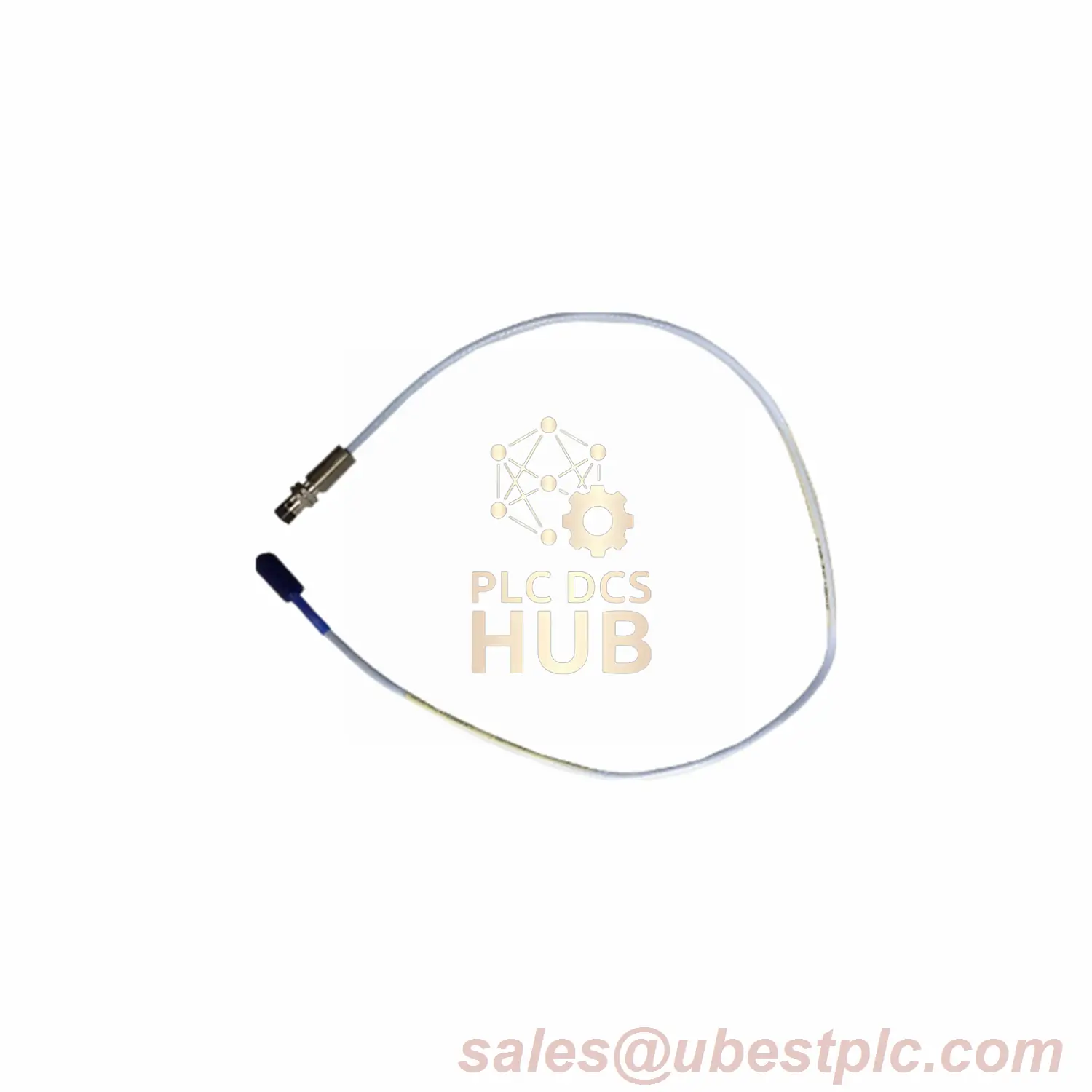

Bently Nevada 3300 XL 8mm Reverse Mount Proximity Probe (2.0m Cable)
Long-reach vibration monitoring solution for hard-to-access machinery. U.S.-manufactured with industrial-grade durability. Ideal for large equipment requiring extended cable runs.
PRODUCT IDENTIFICATION
- Manufacturer: Bently Nevada
- Part Number: 330106-05-30-20-02-00
- Series: 3300 XL Reverse Mount
- Cable Length: 2.0 meters (6.6 ft)
- Thread Specification: M10×1 metric
ELECTRICAL CHARACTERISTICS
- DC Resistance: 7.88Ω ±0.50
- Impedance: 75Ω triaxial
- Insulation: FEP standard (PFA optional)
- Connector Type: ClickLoc coaxial
MECHANICAL PROPERTIES
- Total Weight: 646g (2m assembly)
- Tip Material: PPS polymer
- Case Material: AISI 303/304 SST
- Max Thread Engagement: 15mm
- Bend Radius: Minimum 30mm
ENVIRONMENTAL RATINGS
- Operating Temperature: -52°C to +177°C
- Extended Cable Temp: +260°C (PFA)
- Humidity Tolerance: 93% RH (56 days)
- Min Install Temp: -34°C
PERFORMANCE DATA
- Tensile Strength: 330N case-to-lead
- Cable Retention: 270N at connectors
- Scale Factor Stability: <3% change
- Vibration Limit: 15g (20-2000 Hz)
PART NUMBER DECODER
| Position | Code | Configuration |
|---|---|---|
| 13-14 | 20 | 2.0 meter cable |
| 15-16 | 02 | Miniature ClickLoc |
| 17-18 | 00 | No certifications |
INSTALLATION GUIDE
- Mounting Torque: 10-15 N·m
- Clearance Requirement: 50mm behind mounting surface
- Cable Routing: Secure every 300mm
- Bend Protection: Use within 100mm of connector
MAINTENANCE PROTOCOL
- Resistance Check: Quarterly 7.88Ω±0.50
- Seal Inspection: Annual O-ring examination
- Calibration Cycle: 24 months recommended
- Failure Symptoms: >8.5Ω or <7.0Ω reading
SHIPPING DETAILS
- Package Dimensions: 120cm × 8cm × 8cm
- Shipping Weight: 0.85 kg
- Carriers: FedEx International, UPS Worldwide, DHL Express
- Lead Time: 3-5 business days
TECHNICAL FAQ
Q: Can I order different cable lengths?
A: Yes – available in 0.5m to 9m options
Q: What does the resistance value indicate?
A: Measures coil health – deviation indicates damage
Q: Is armored cable available?
A: Optional SST armor with FEP jacket
Q: How do I verify proper installation?
A: Check gap voltage with monitoring system
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
