Description
Overview

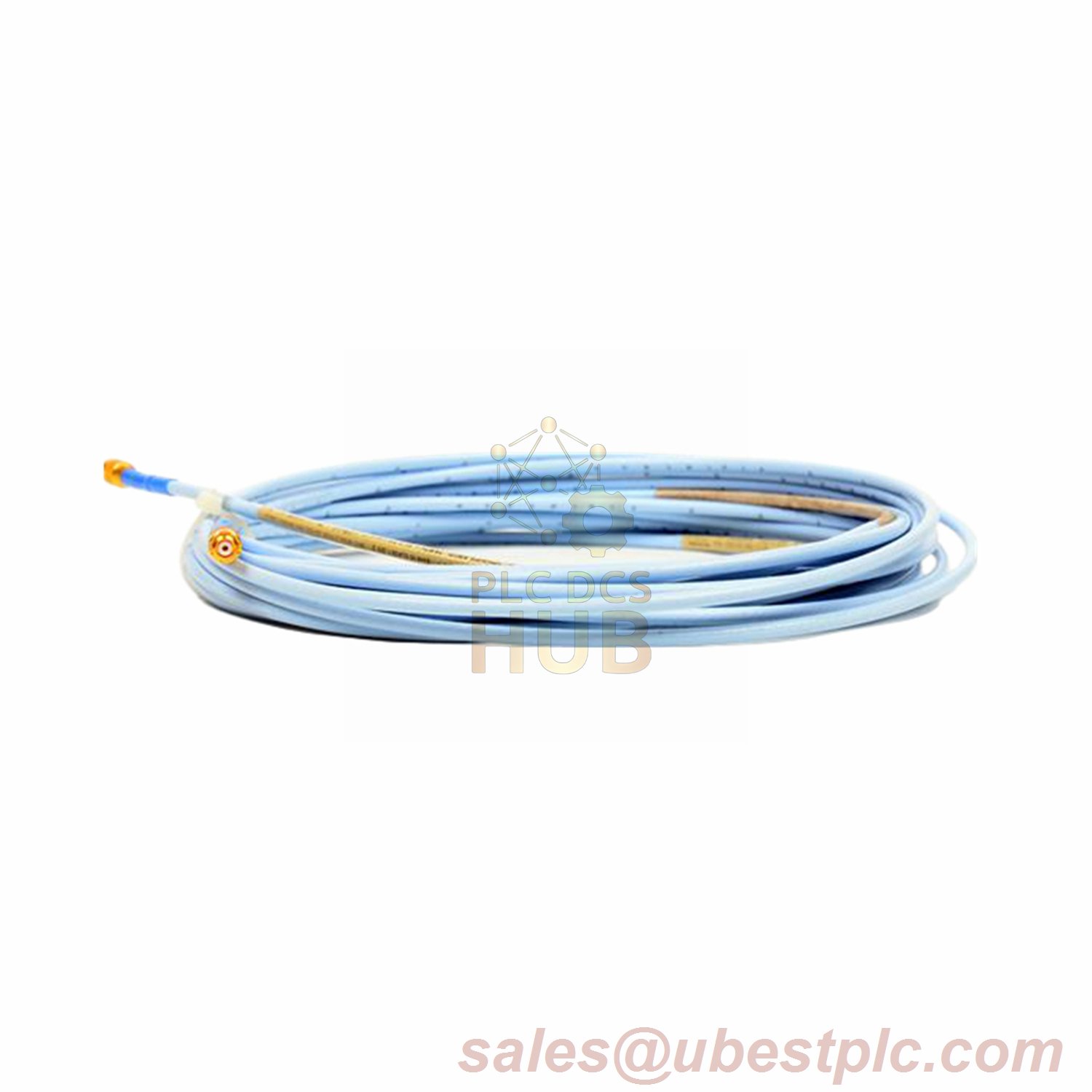

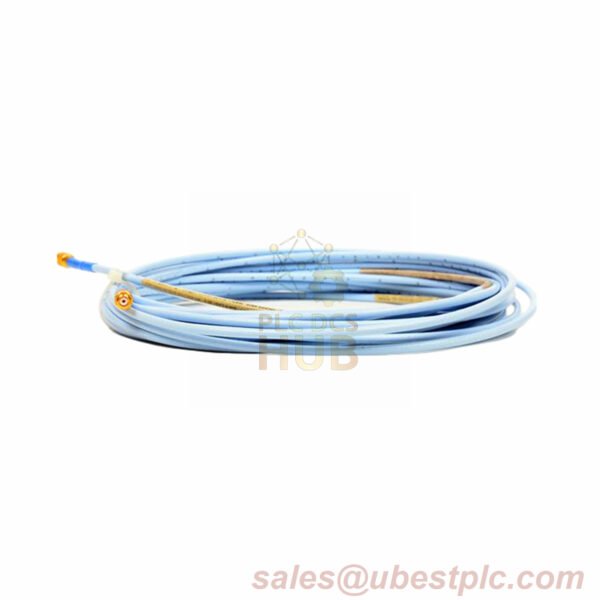

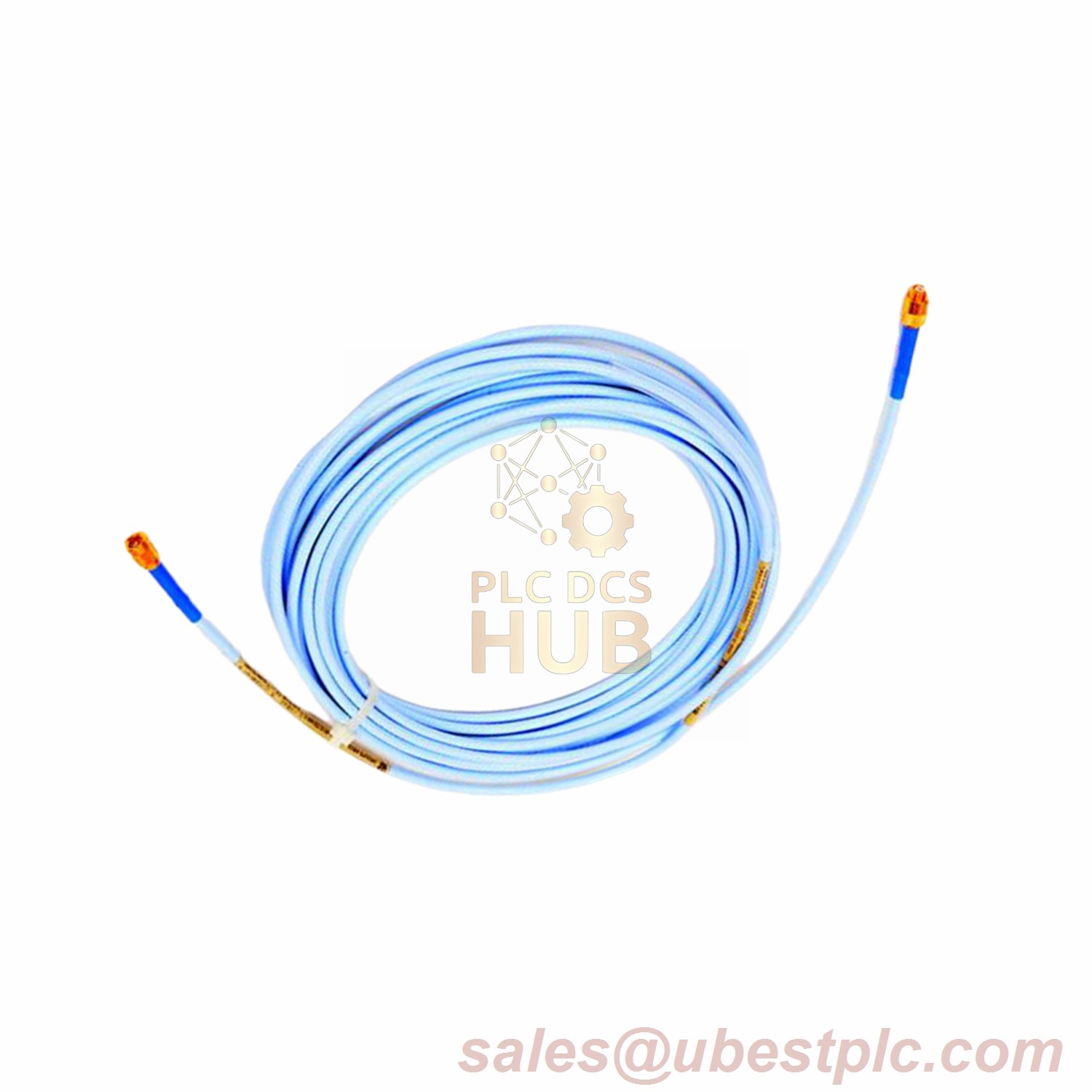

The Bently Nevada 330130-030-00-00 Extension Cable is designed for use with 3300 XL proximity probes. Manufactured in the U.S.A, this high-quality extension cable offers a length of 3.0 meters (9.8 feet) and is suitable for applications requiring robust and reliable performance in industrial environments. The cable utilizes ClickLoc™ connectors that ensure corrosion resistance and a secure connection, minimizing installation errors.
Technical Specifications
- Brand: Bently Nevada
- Model: 330130-030-00-00
- Extension Cable Length: 3.0 meters (9.8 feet)
- Connector: ClickLoc™ corrosion-resistant, gold-plated connectors
- Cable Type: Standard cable
- Capacitance: 69.9 pF/m (21.3 pF/ft)
- Power Supply: -17.5 Vdc to -26 Vdc without barriers, -23 Vdc to -26 Vdc with barriers
- Output Resistance: 50 Ohm
- Extension Cable Resistance:
- RCORE (Center Conductor to Center Conductor): 0.66 ± 0.10 Ω (for 3m length)
- RJACKET (Outer Conductor to Outer Conductor): 0.20 ± 0.04 Ω (for 3m length)
- Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils)
- Cable Weight: 34 g/m (0.4 oz/ft), Armored option: 103 g/m (1.5 oz/ft)
- Certifications: No specific approvals required
