Description
Description

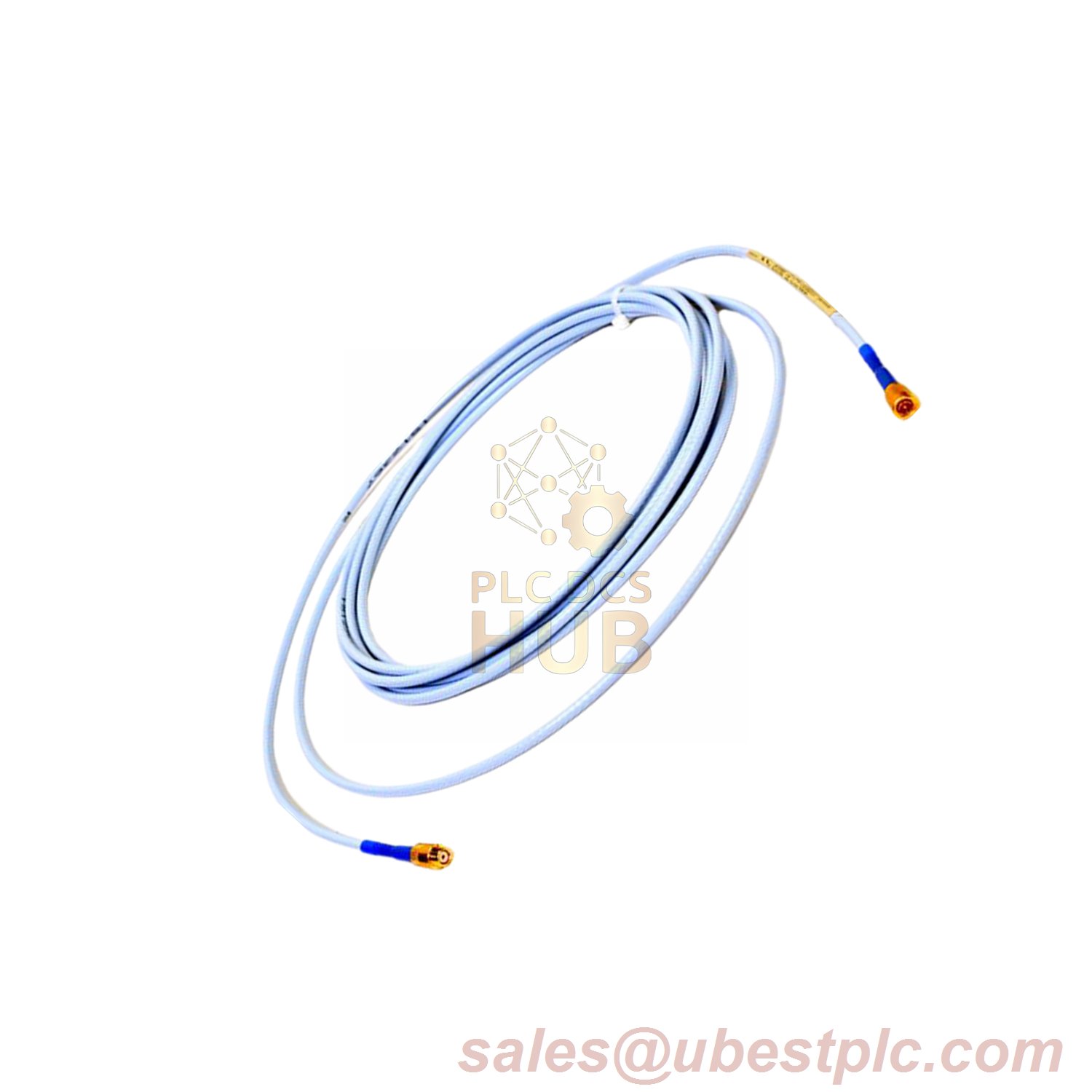

The 330130-035-13-00 offers triple-layer protection with Armored FluidLoc cable, connector protector, and Viton® seals – ideal for non-hazardous industrial applications. This 3.5 m cable operates at -26 Vdc with 330 N pull strength and 50 Ω output resistance. Made in USA, COO available.
- Non-Certified Flexibility: Designed for general industrial use without ATEX/IECEx requirements.
- Mechanical Durability: 103 g/m armored construction resists abrasion/impact.
- Precision Calibration: 0.25–2.3 mm linear range (±1% ASF @ 1.27 mm gap).
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330130-035-13-00 |
| Suffix Codes | 035: 3.5 m length 13: Armored FluidLoc + protector 00: No certifications |
| Current Draw | 12 mA max @ -23 Vdc |
| Frequency Response | 10 kHz bandwidth @ 305 m wiring |
| Temperature Range | -40°C to +85°C (-40°F to +185°F) |
