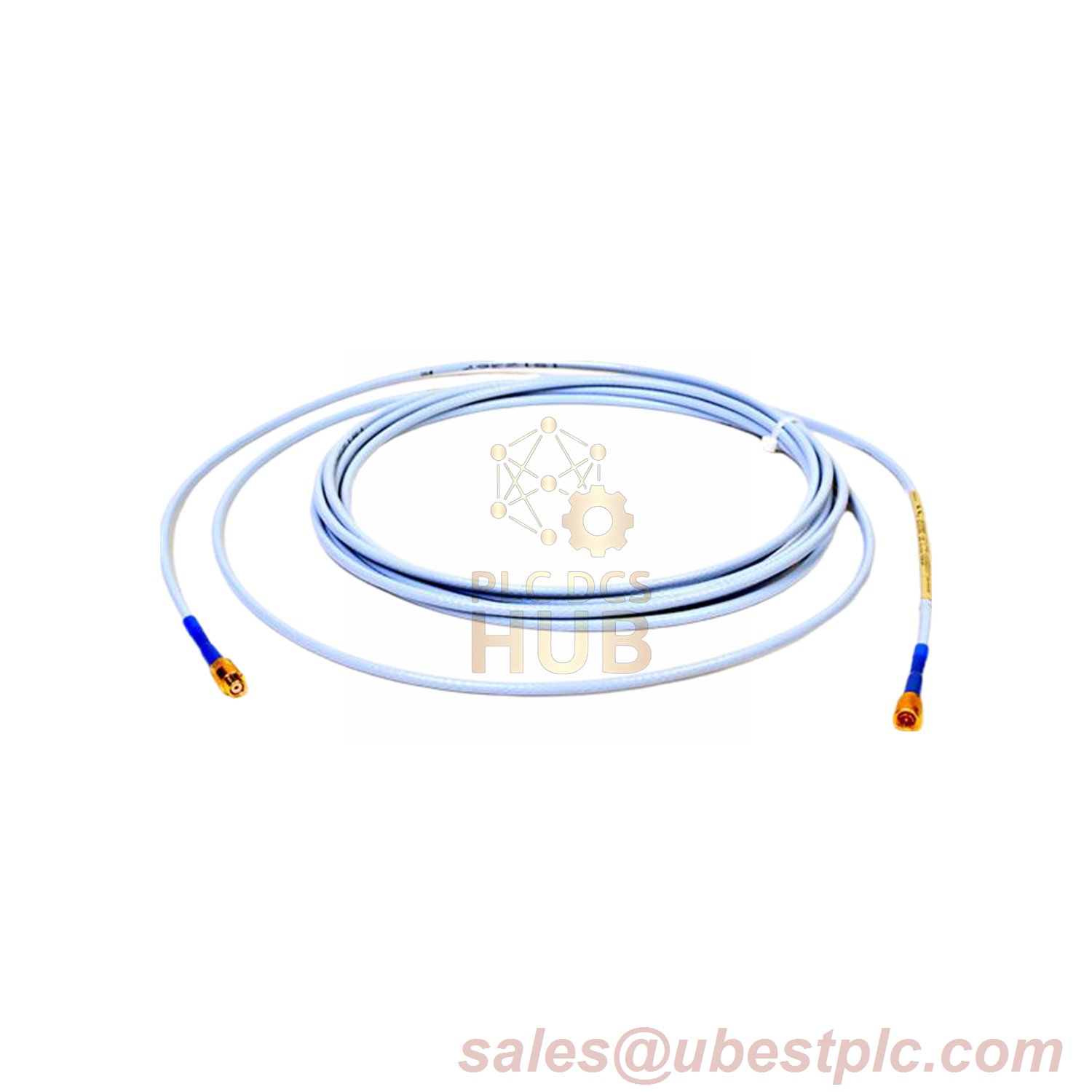

The 330130-035-12-05 integrates FluidLoc technology with a dedicated connector protector for critical oil/gas applications. This 3.5 m CSA/ATEX/IECEx-certified cable features gold ClickLoc connectors, 330 N pull strength, and Viton® seals. Ideal for turbine monitoring with -26 Vdc operation and <2 mV/V sensitivity. Made in USA, COO available.
- Enhanced Seal: FluidLoc + connector protector prevents oil ingress in high-pressure zones.
- Signal Integrity: 69.9 pF/m capacitance ensures minimal signal distortion.
- Compliance: Meets API 670 for external probe housings.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330130-035-12-05 |
| Suffix Codes | 035: 3.5 m (13.1 ft) 12: FluidLoc + protector 05: CSA/ATEX/IECEx |
| Voltage Range | -17.5 Vdc to -26 Vdc (-23.5 Vdc min linear) |
| Capacitance | 69.9 pF/m ±5% (21.3 pF/ft) |
| Humidity Resistance | <3% ASF variation (56 days @ 93% RH) |
| Field Wiring | 3 shielded conductors, 305 m max |
