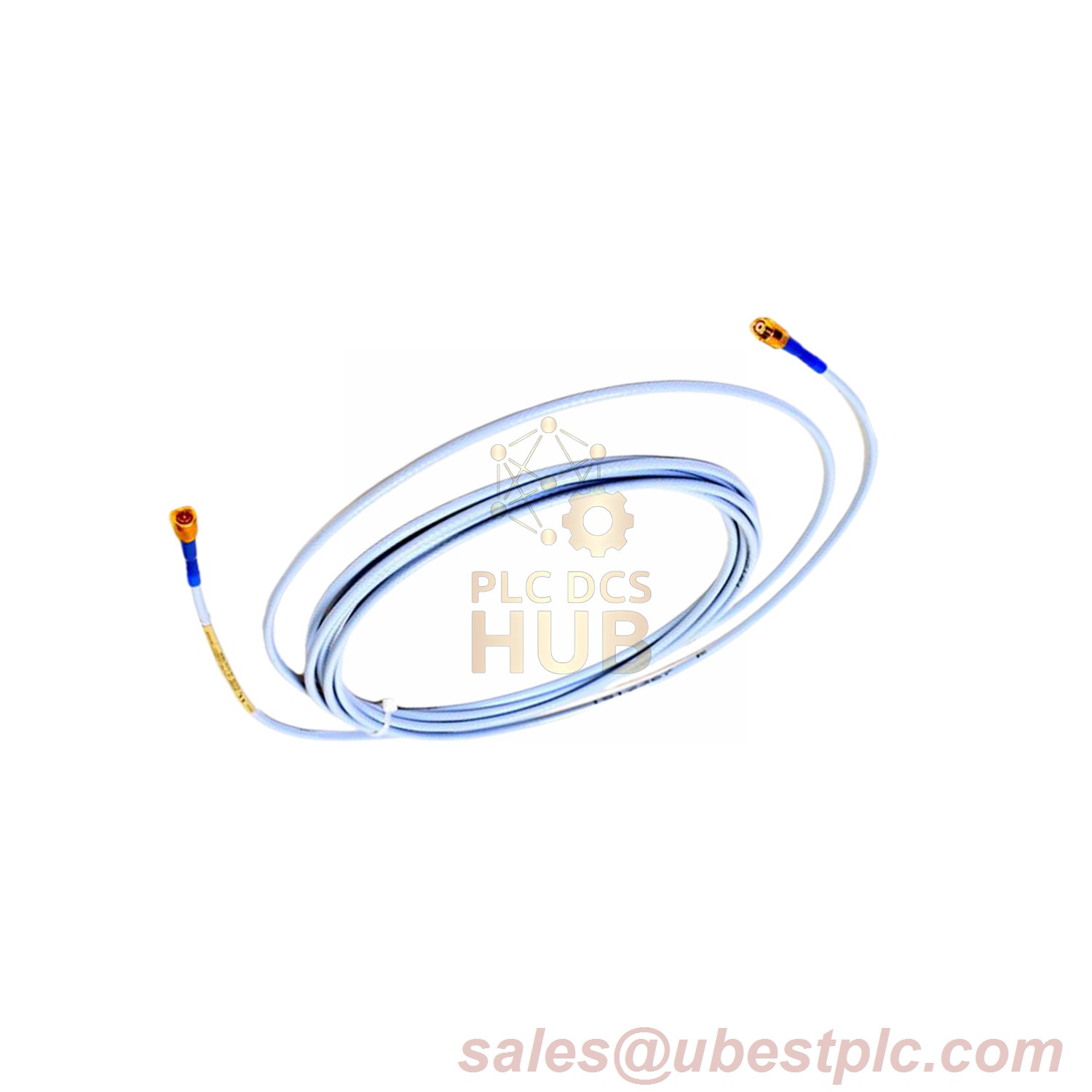

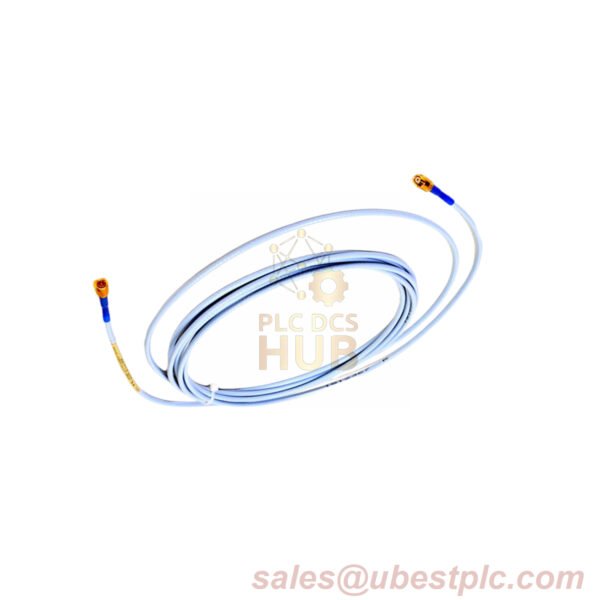

Bently Nevada FluidLoc® + Connector Protector Cable
Engineered for extreme reliability in oil-rich environments, the Bently Nevada 330130-035-12-00 combines FluidLoc® leak prevention with dedicated connector protectors. Designed for 3300 XL 8 mm proximity probes, this 3.5-meter armored cable features gold-plated ClickLoc® connectors and resists signal degradation in turbine oil applications. Complies with IEC 68-2-3 humidity standards.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-035-12-00 (Suffix: 035=3.5m, 12=FluidLoc® + Protector, 00=No Approvals) |
| Operating Temp | +18°C to +27°C (+64°F to +80°F) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Field Wiring | 3-conductor shielded triad, 0.2–1.5 mm² (16–24 AWG) |
| Output Voltage Range | -1 Vdc to -17 Vdc |
| Humidity Resistance | <3% ASF variation (56 days at 93% RH) |
| Target Material | AISI 4140 steel (1.27 mm gap) |
Critical Features
- Dual protection: FluidLoc® + factory-installed connector protector
- 330 N (75 lbf) pull resistance via CableLoc® patent
- Optimized for 305-meter field wiring with minimal signal loss
- Viton® O-ring seals (pressure testing available on request)
Contact Information: Email sales@ubestplc.com for customization queries.
