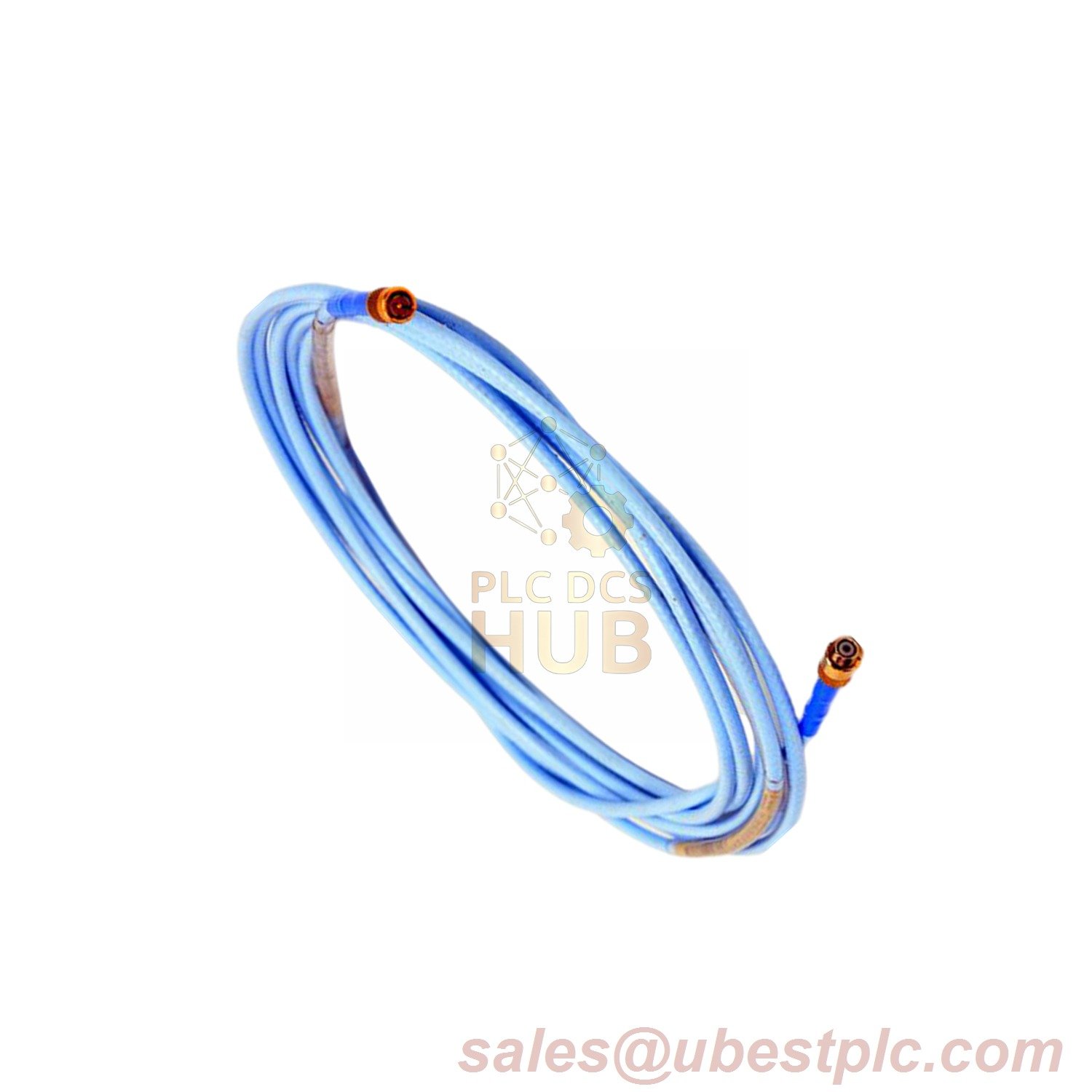

330130-040-10-05 Bently Nevada | Extension Cable

Description

Overview

The Bently Nevada 330130-040-10-05 Extension Cable combines a 4.0-meter FluidLoc cable with CSA, ATEX, and IECEx certifications, ideal for hazardous or oil-rich environments. Designed to prevent fluid ingress, its patented CableLoc ensures 75 lbf pull strength, while silicone tape (included) offers temporary sealing for non-oil applications. The lightweight, unarmored design (34 g/m) balances flexibility with compliance for Zone 1/21 hazardous areas.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-040-10-05
  • Cable Length: 4.0 meters (11.5 ft)
  • Cable Type: FluidLoc (fluid-resistant)
  • Approvals: CSA, ATEX II 3G Ex ec IIC T6 Gc, IECEx Ex ec IIC T6 Gc
• Surge Current Rating: 10 kA (8/20 μs waveform per IEC 61000-4-5)
• Dielectric Constant: 2.3 ±0.1 at 1 MHz
• Loop Resistance: ≤0.1 Ω/m (center-to-center conductor)
• Capacitance Tolerance: ±5% (69.9 pF/m nominal)
• Flex Life: 50,000 cycles (15 mm bend radius, IEC 60950)
• Operating Altitude: 5,000 meters (16,404 ft) max
• EMI Immunity: 30 V/m (80 MHz–6 GHz, per IEC 61000-4-3)
• Response Time: <1 μs (signal propagation delay)

Contact Information

For pricing or customization, email sales@ubestplc.com

Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
