330130-060-02-05 Bently Nevada – 8mm Extension Cable

Description

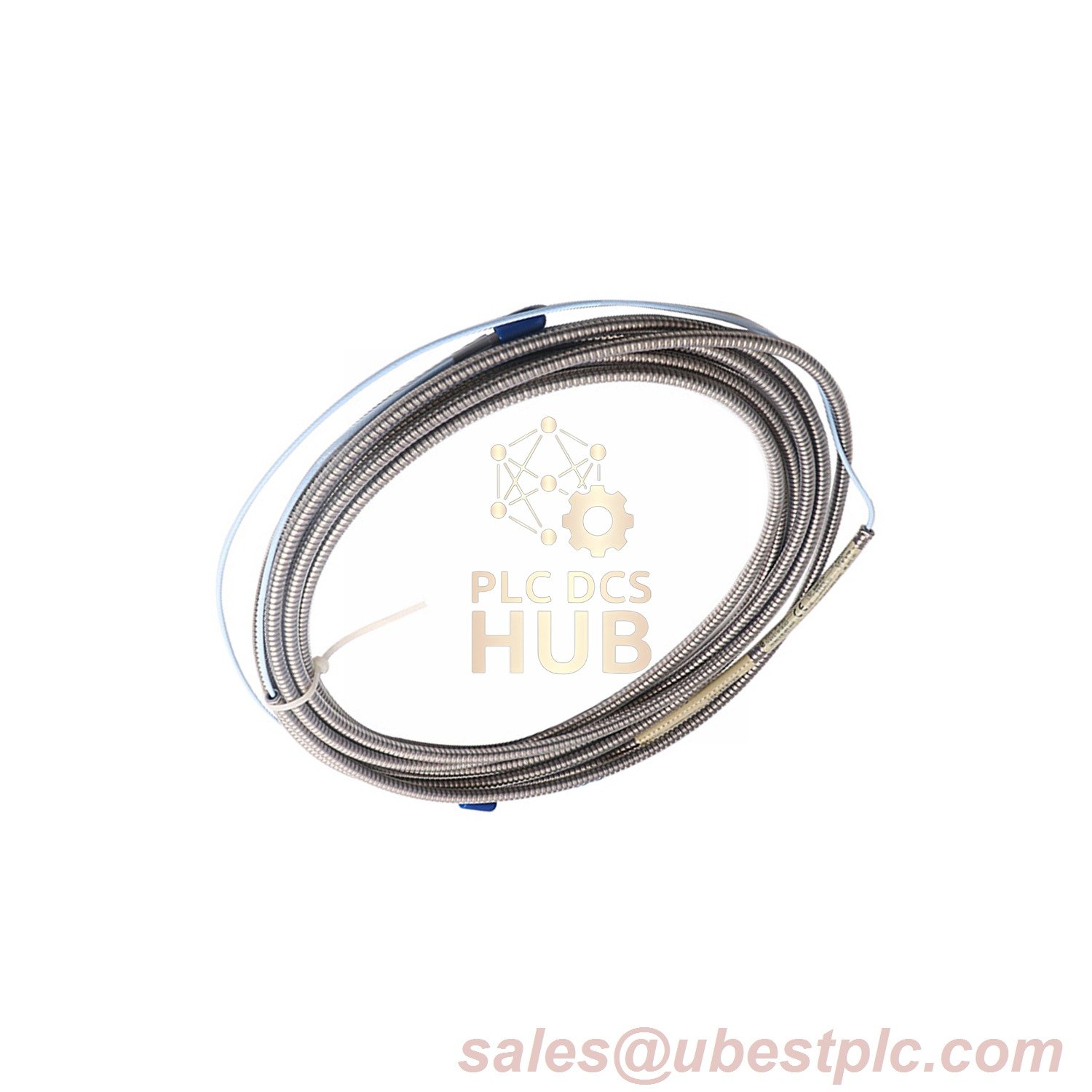

Bently Nevada 330130-060-02-05 Extension Cable

The Bently Nevada 330130-060-02-05 is a high-quality extension cable designed to work seamlessly with 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm Proximity Probes and Proximitor Sensors. This cable ensures reliable signal transmission with minimal interference, making it an essential component for industrial vibration monitoring systems.

Technical Data

• Brand: Bently Nevada
• Model: 8mm Extension Cable
• Type: Extension Cable
• Made in: USA (Includes Certificate of Origin)
• Length: 6.0 meters (19.7 feet)
• Connector Protector: Standard cable with connector protector
• Approvals: CSA, ATEX, IECEx
• Extension Cable Weight: 0.204 kg (34 g/m)
• Armored Extension Cable Weight: 0.618 kg (103 g/m)
• Operating Voltage: -17.5 Vdc to -26 Vdc
• Power Consumption: 12 mA max
• Output Resistance: 50 Ohm
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Nominal DC Resistance:
  • Center Conductor: 1.32 ± 0.21 Ω
  • Outer Conductor: 0.39 ± 0.08 Ω
