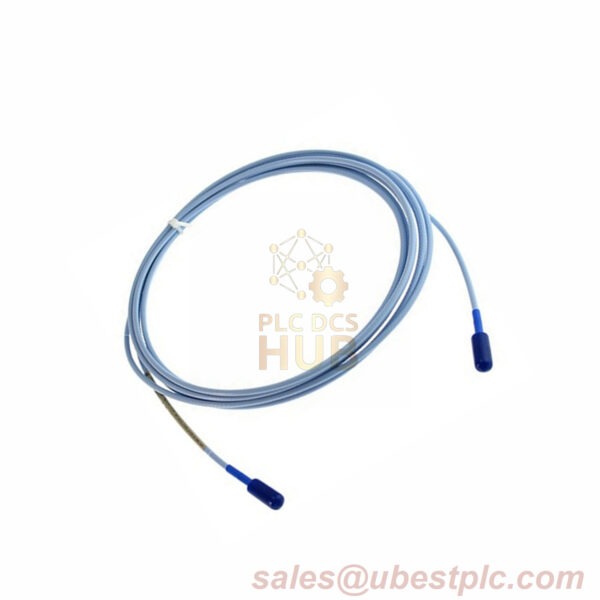

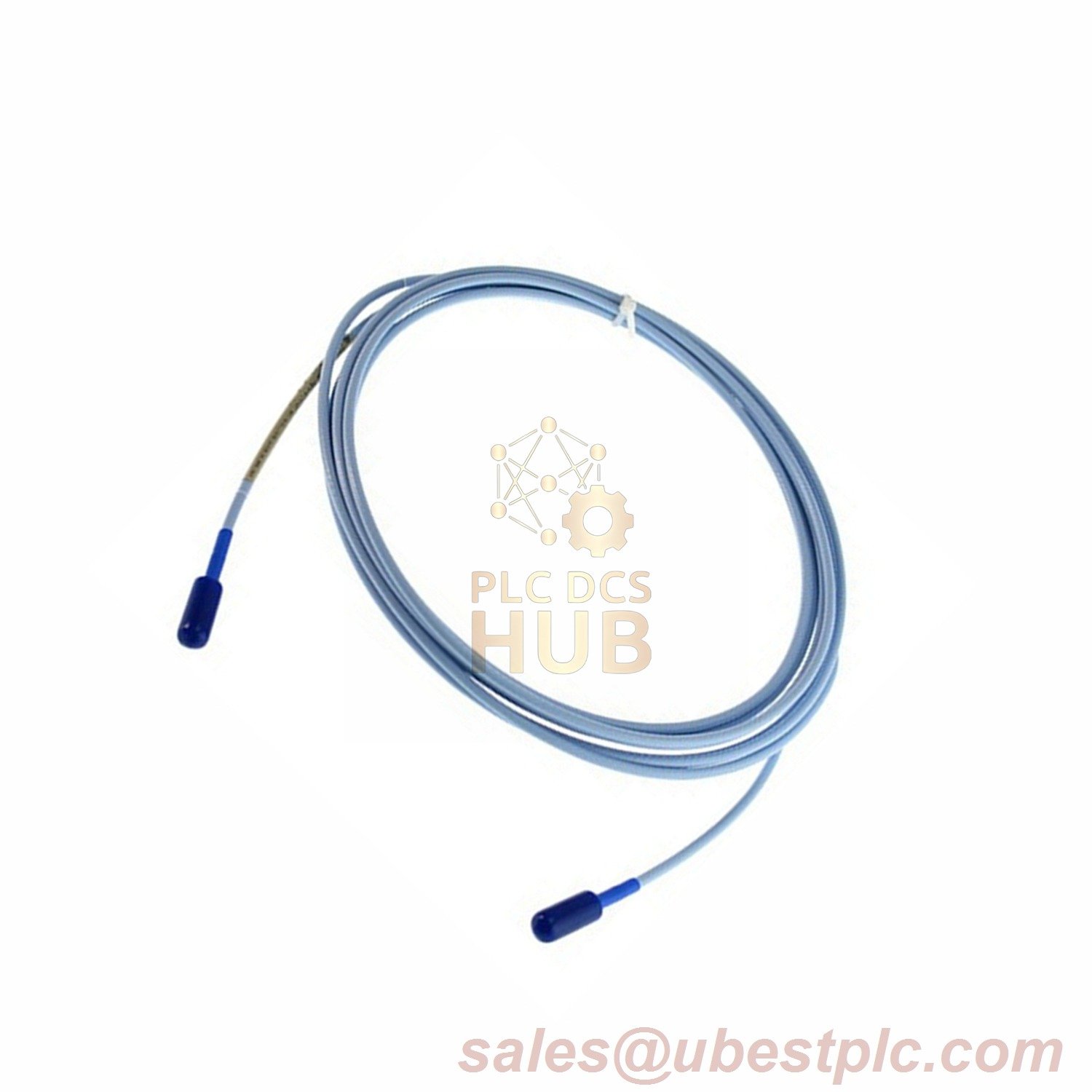

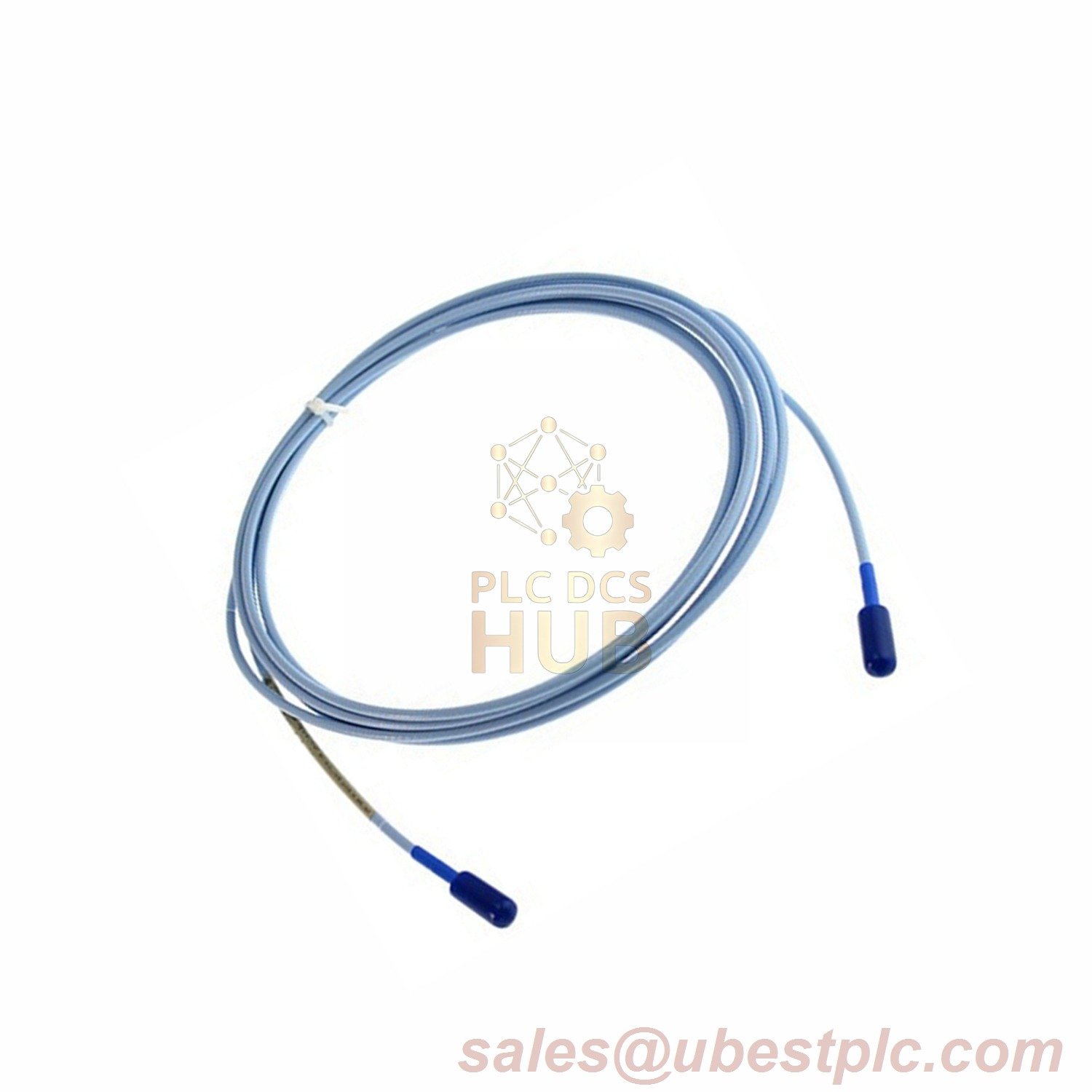

**Bently Nevada** 330130-060-11-00 Armored FluidLoc Extension Cable

This **3300 XL series** extension cable 330130-060-11-00 is designed for seamless integration with 5 mm, 8 mm, or 8 mm XL non-contacting proximity probes. Built for industrial durability, it features **ClickLoc® connectors** with gold plating for corrosion resistance and a patented **FluidLoc armored cable** to prevent fluid ingress. Ideal for turbine applications, it ensures reliable signal transmission in harsh environments.

Technical Data

• Brand: Bently Nevada
• Model: 330130-060-11-00 (Suffix Details: 060=6.0 meters, 11=Armored FluidLoc, 00=No Approvals)
• Voltage Range: **-17.5 Vdc to -26 Vdc** (12 mA max)
• Output Resistance: 50 Ω
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Core Resistance (RCORE): 1.32 Ω ±0.21 (6.0 meters)
• Jacket Resistance (RJACKET): 0.39 Ω ±0.08 (6.0 meters)
• Weight: 0.618 kg (Armored)
• Temperature Range: +18°C to +27°C (+64°F to +80°F)
• Sealing: Viton® O-ring (differential pressure sealing)
• Humidity Tolerance: <3% ASF change at 93% humidity (56 days)

Key Features

• Patented **CableLoc** design with 330 N (75 lbf) pull strength
• Includes silicone tape for connector protection (excludes turbine oil applications)
• Supports 305-meter (1,000 feet) field wiring to monitor
• Linear range: 0.25–2.3 mm (10–90 mils) / -1 to -17 Vdc
