Description
Description

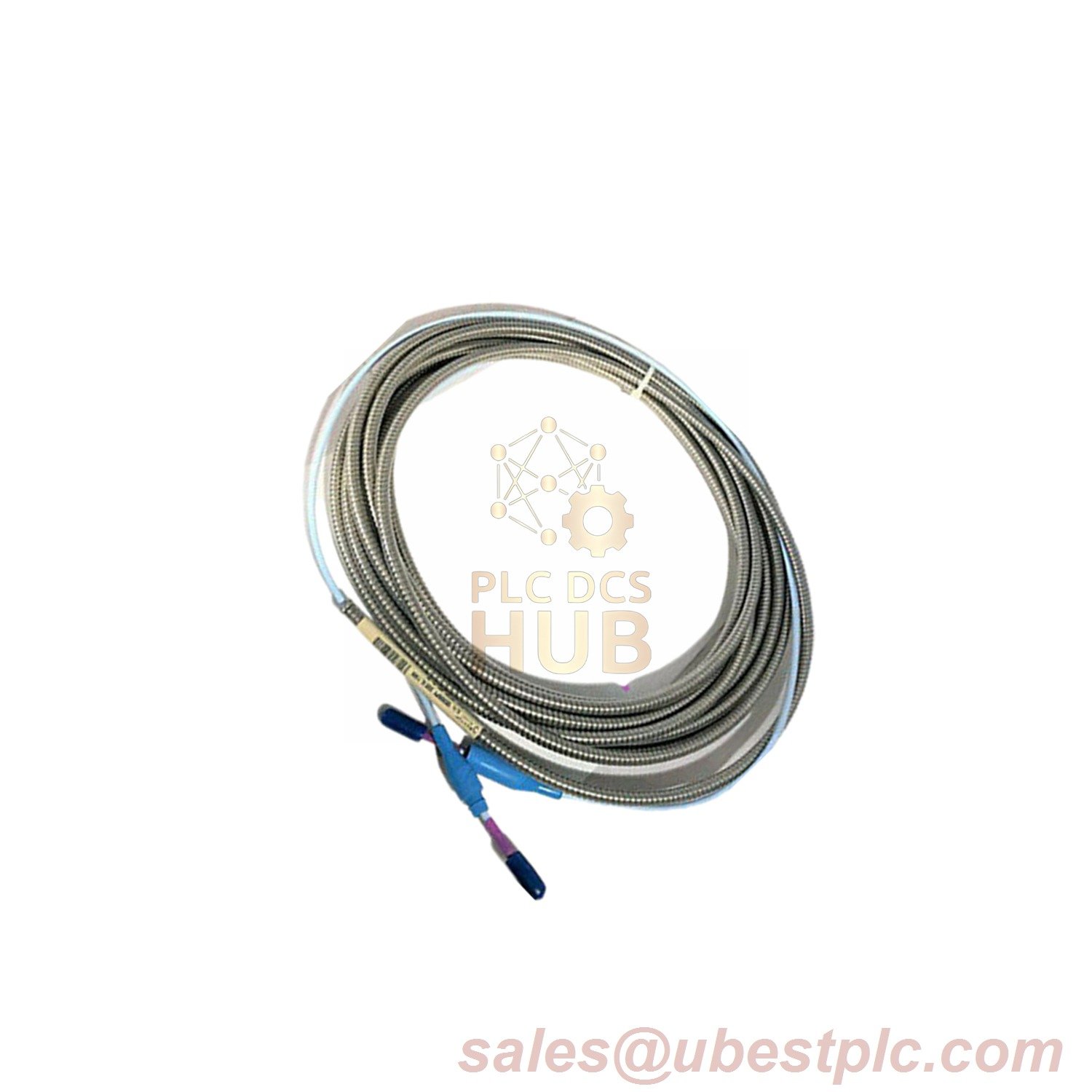

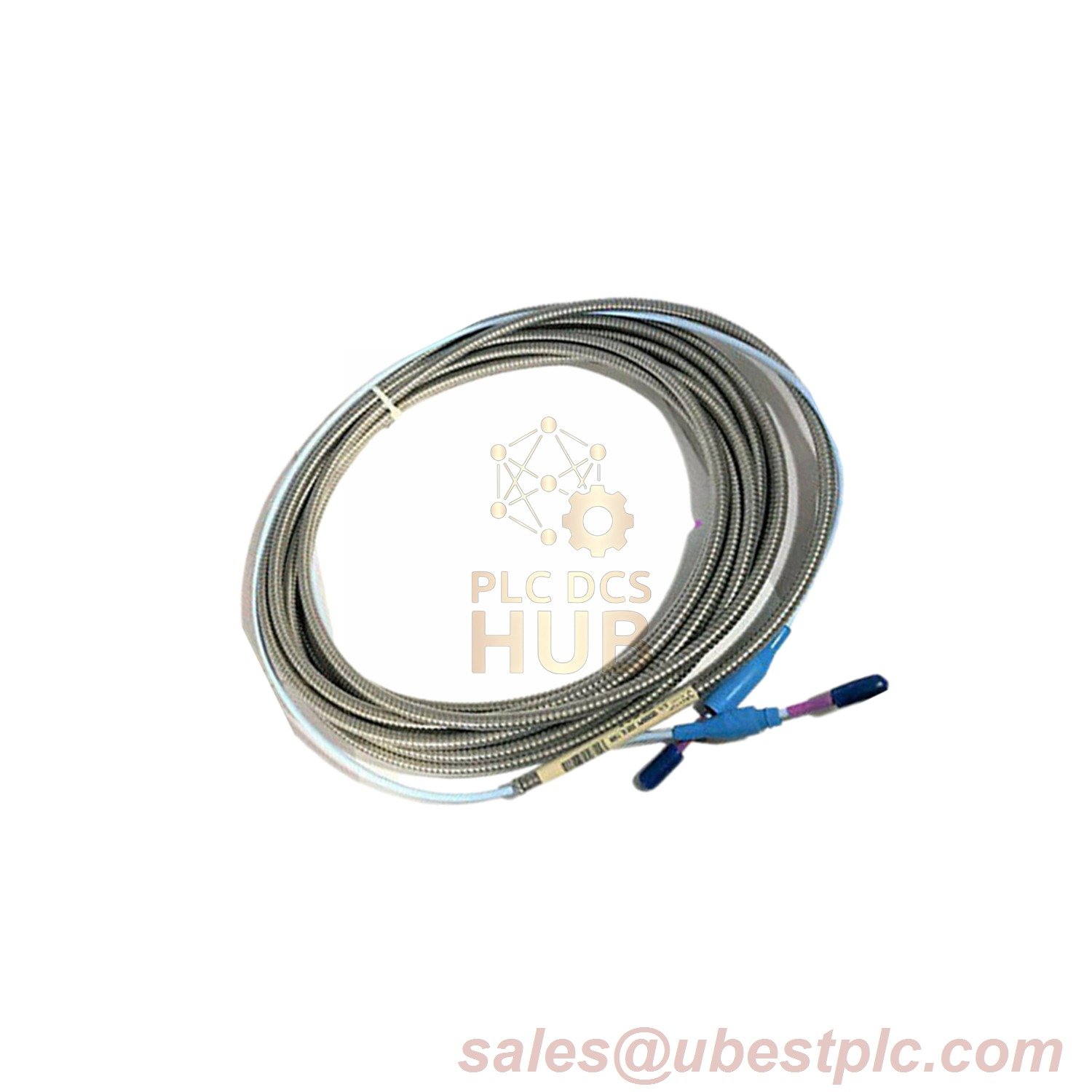

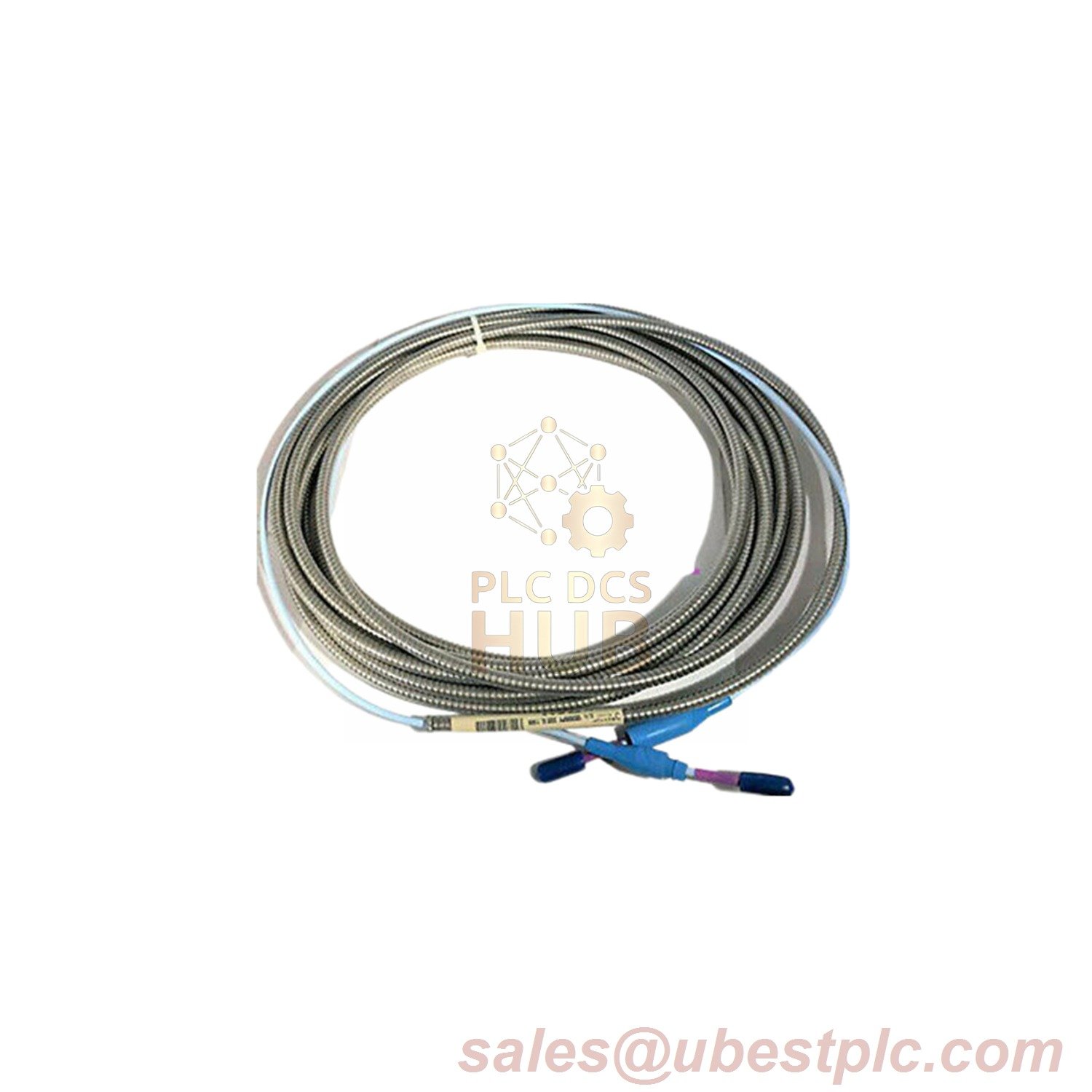

The Bently Nevada 330130-070-01-00 is a heavy-duty armored extension cable designed for demanding industrial environments requiring extended reach and mechanical protection. Featuring 7.0 meters (22.9 feet) of stainless steel armored cable, this cable ensures reliable signal transmission in high-vibration, high-abrasion settings. Engineered with patented CableLoc technology, it delivers 330 N (75 lbf) pull strength, IP67 protection, and compatibility with 3300 XL probes for vibration and position monitoring.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-070-01-00 |
| Suffix Breakdown | -070 (7.0 m cable), -01 (armored cable), -00 (no approvals) |
| Product Type | Armored Extension Cable |
| Cable Length | 7.0 meters (22.9 feet) |
| DC Resistance (RCORE) | 1.54 ± 0.23 Ω (center-to-center conductor) |
| DC Resistance (RJACKET) | 0.46 ± 0.09 Ω (outer-to-outer conductor) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Signal Propagation Speed | 0.82c (82% speed of light, typical for low-loss coaxial design) |
| Phase Stability | ±1.0° (10 Hz–1 MHz, -40°C to +85°C) |
| Dynamic Bend Cycles | 30,000 cycles (dynamic bending at 8x cable diameter, per IEC 60947) |
| Chemical Resistance | Resists ASTM #3 Oil, Hydraulic Fluid, and Glycol (per ASTM D543) |
Contact Information
For pricing or customization, email sales@ubestplc.com
Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
