Bently Nevada Premium Extension Cable: Precision Connectivity for Industrial Monitoring
???? Product Description

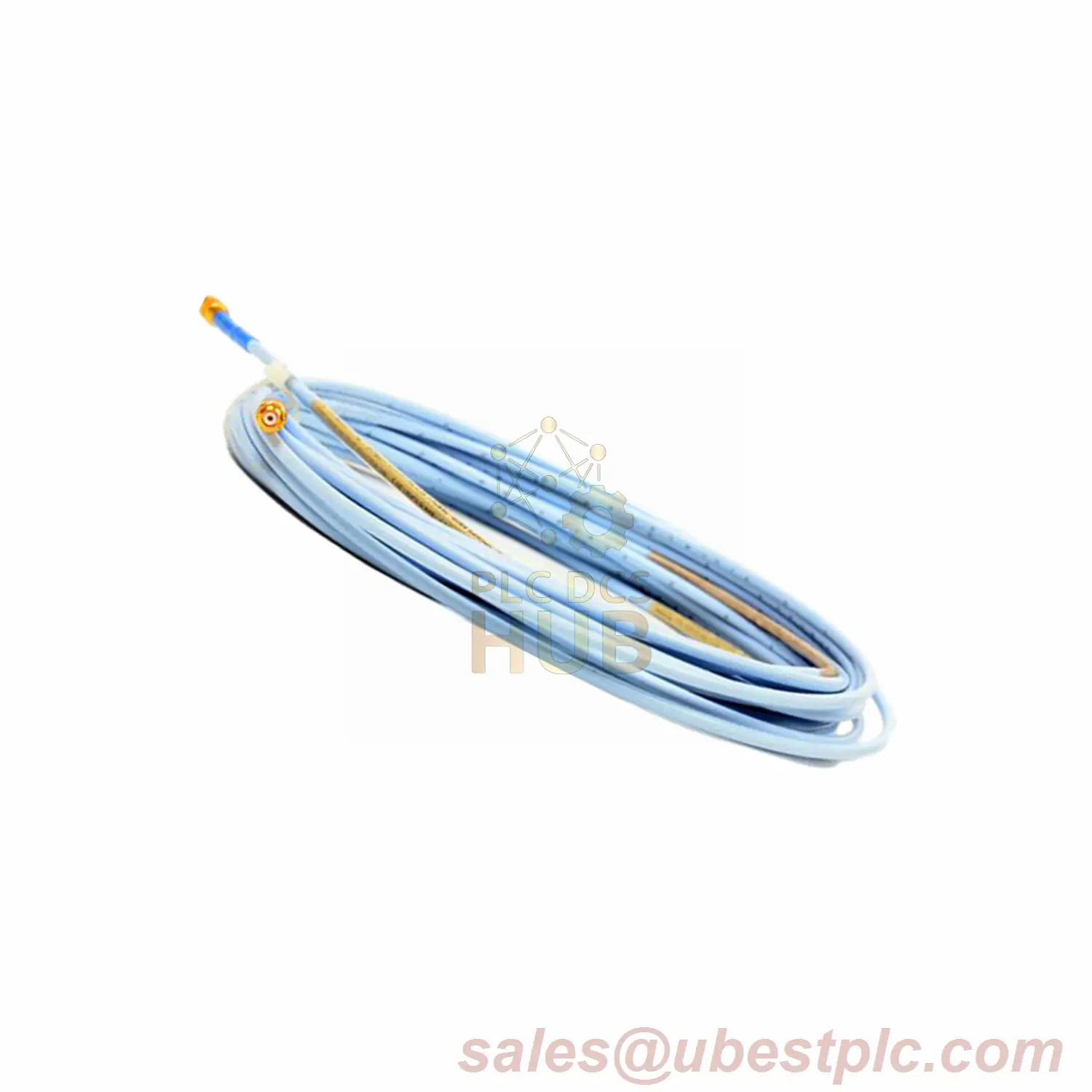

Premium 7.5-meter armored extension cable from Bently Nevada (P/N: 330130-075-02-00). Designed for 3300-series vibration monitoring systems, features ClickLoc® gold connectors and FluidLoc® oil-resistant technology. Made in USA with optional COO certificate.
⚙️ Technical Specifications
- Brand: Bently Nevada
- Model: 330130-075-02-00
- Series: 3300 XL 8mm
- Cable Length: 7.5m (24.6ft)
- Voltage Range: -17.5 to -26 VDC
- Current: ≤12mA
- Output Resistance: 50Ω
- Capacitance: 69.9 pF/m
- Temp Range: +18°C to +27°C
- Sealing: Viton® O-ring
- Pull Strength: 330N (75lbf)
???? Installation Guide
• Use 3-conductor shielded triad cable (0.2-1.5mm²)
• Max wiring distance: 305m
• Gap probes at 1.27mm (50 mils)
• Avoid silicone tape in oil-exposed areas
Diagnostics & Maintenance
• Check RCORE resistance: 1.65Ω±0.25
• Monitor RJACKET: 0.49Ω±0.10
• Test humidity tolerance: 93% per IEC 68-2-3
???? Packaging List
• Extension cable with connector protector
• Silicone tape set
• Installation manual
???? Shipping Options
FedEx | UPS | DHL
Delivery within 3-5 business days worldwide
???? Industry Applications
• Gas turbine vibration monitoring
• Power generation equipment
• Oil refinery machinery
• Rotating equipment diagnostics
❓ FAQ Solutions
Q: Reduced linear range?
A: Ensure voltage > -23.5VDC
Q: Fluid leakage issues?
A: Use FluidLoc® cable option
Q: Signal loss at long range?
A: Check frequency response graphs
