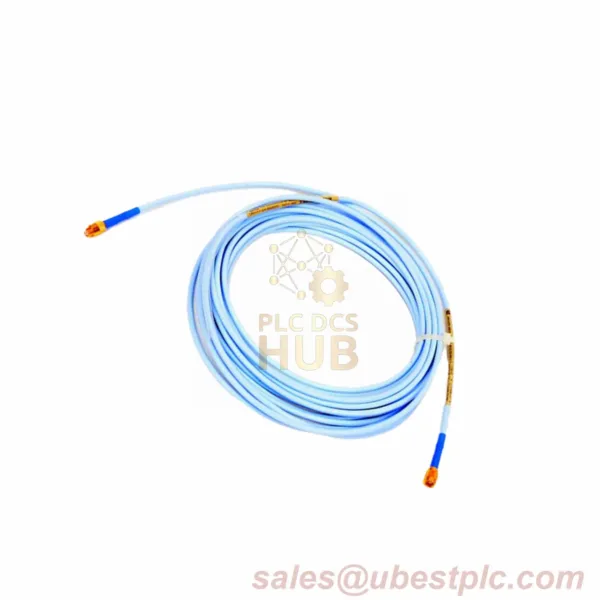

Bently Nevada 330130-080-02-05: Certified Industrial Extension Cable
Product Overview
8.0-meter extension cable with triple certifications (CSA/ATEX/IECEx). Made in USA with standard cable + connector protector. Features patented CableLoc technology (330N pull strength) for secure industrial monitoring.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330130-080-02-05
- Suffix Breakdown:
- 080: 8.0m length (26.2 ft)
- 02: Standard cable + connector protector
- 05: CSA + ATEX + IECEx certified
- Electrical Resistance:
- Core: 1.76Ω ±0.26Ω
- Jacket: 0.53Ω ±0.11Ω
- Power Requirements: -17.5Vdc to -26Vdc
- Capacitance: 69.9 pF/m (21.3 pF/ft)
- Weight: 0.272 kg
- Humidity Resistance: <3% ASF change in 93% humidity
- Operating Temp: +18°C to +27°C
Installation Notes
Probe + Cable length must match sensor requirements.
Critical: Use connector protector (not silicone tape) in oil-exposed environments.
Safety Certificated
- CSA Certified
- ATEX Compliant
- IECEx Approved
- Optional COO (Certificate of Origin)
Package Contents
- 1× Standard Extension Cable (8.0m)
- Connector protector
- Silicone tape (backup)
- Warranty: 12 months
Shipping Options
Global delivery via FedEx, UPS, DHL with real-time tracking.
Frequently Asked Questions
Q: What certifications does “05” suffix provide?
A: CSA safety, ATEX explosion protection, and IECEx international certification.
Q: Difference between 02 and 03 cable options?
A: 02=Standard cable with protector, 03=Armored cable with protector.
Q: Can I use this in oil refineries?
A: Yes – ATEX/IECEx certifications make it suitable for hazardous areas.
Q: Humidity tolerance?
A: Maintains performance in 93% humidity for 56 days (IEC 68-2-3 tested).
Specifications valid at +18°C to +27°C with -24Vdc supply & AISI 4140 steel target.
