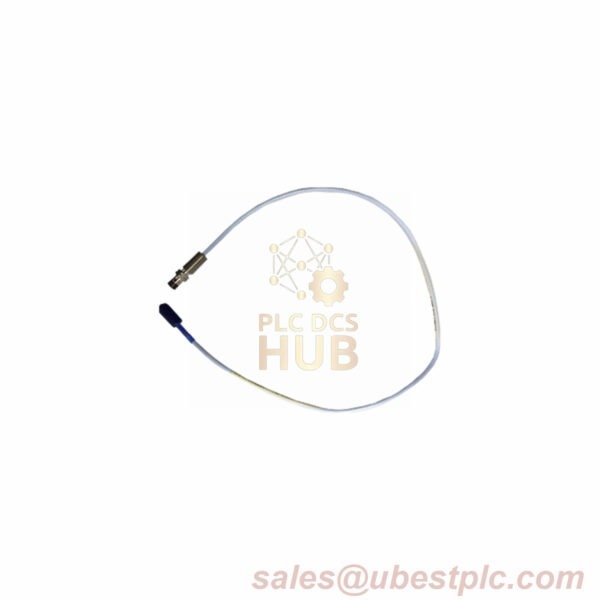

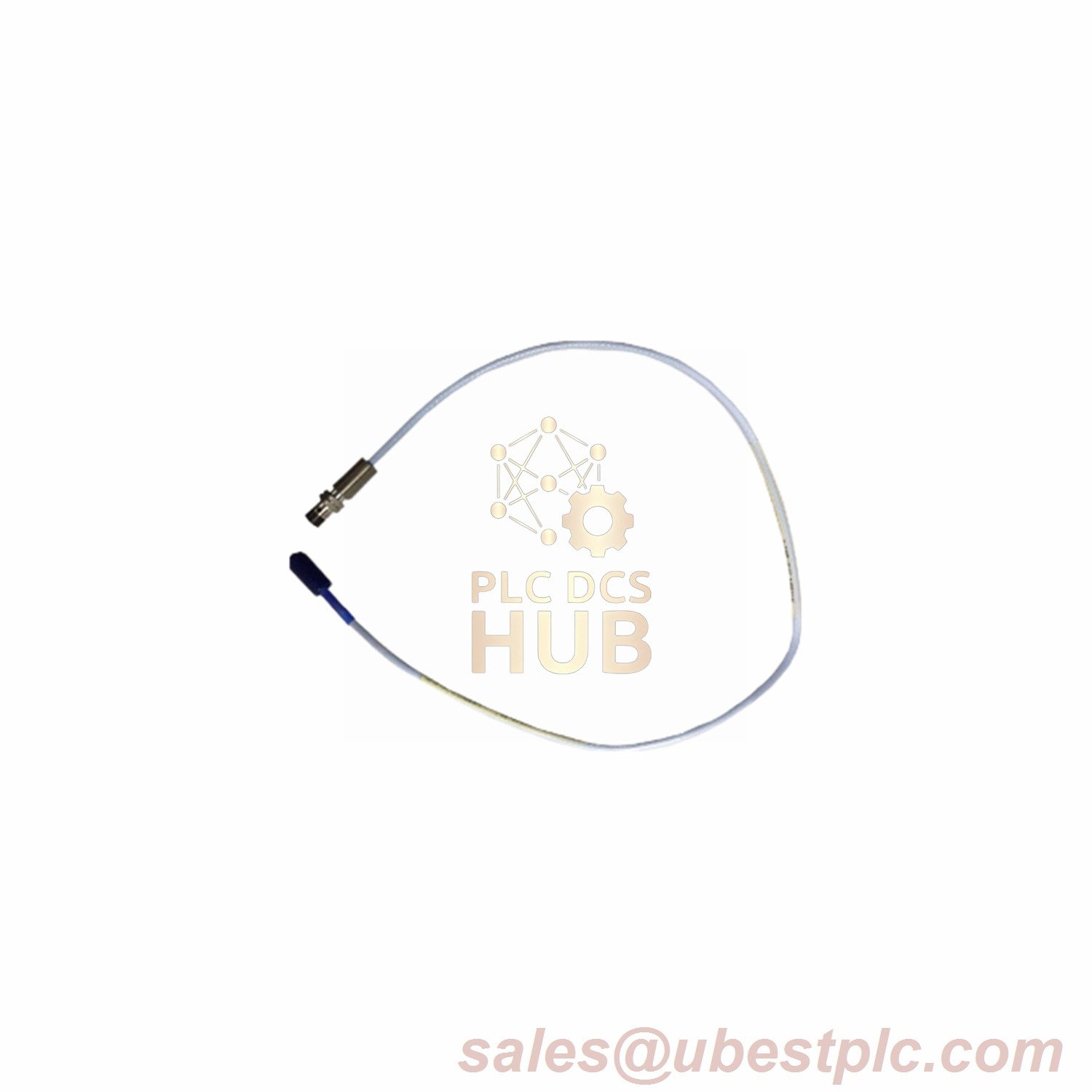

330140-08-90-01-00 Bently Nevada – 3300 XL 8 mm Proximity Probes

Description

Product Overview

The Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-90-01-00) is engineered for industrial applications requiring extended cable reach and robust performance. Featuring a 9.0-meter standard cable with a ClickLoc connector protector, this probe ensures secure connectivity in high-vibration or complex installations. Its 8 mm PPS plastic tip and stainless steel casing provide superior resistance to physical stress, while the patented TipLoc and CableLoc designs deliver 330 N (75 lbf) pull strength. Designed without certifications for cost efficiency, this variant includes optional FluidLoc cable upgrades to prevent fluid ingress. Ideal for machinery monitoring in non-hazardous environments, it operates reliably across extreme temperatures and humidity levels. A Certificate of Origin (COO) can be added for compliance needs.

Technical Specifications

• Brand: Bently Nevada
• Model: 330140-08-90-01-00
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 90: 9.0-meter cable (29.5 feet)
    • 01: ClickLoc connector with protector + standard cable
    • 00: No agency certifications required
• Probe Tip: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 stainless steel
• Linearity Deviation: <±0.038 mm (±1.5 mil) for 9m systems
• Humidity Resistance: <3% ASF change at 93% humidity (56 days, IEC 68-2-3)
• Cable Flexibility: 20,000+ bend cycles at 50 mm radius
• Surge Withstand: 4 kV (ANSI/IEEE C37.90.1)
• EMC Compliance: EN 61000-6-2/4 for industrial environments
• Insulation Resistance: >500 MΩ at 1000 V DC
• Warranty: 24 months under standard conditions
• Material Compliance: NORSOK M-501 for offshore durability
