Description
Product Overview

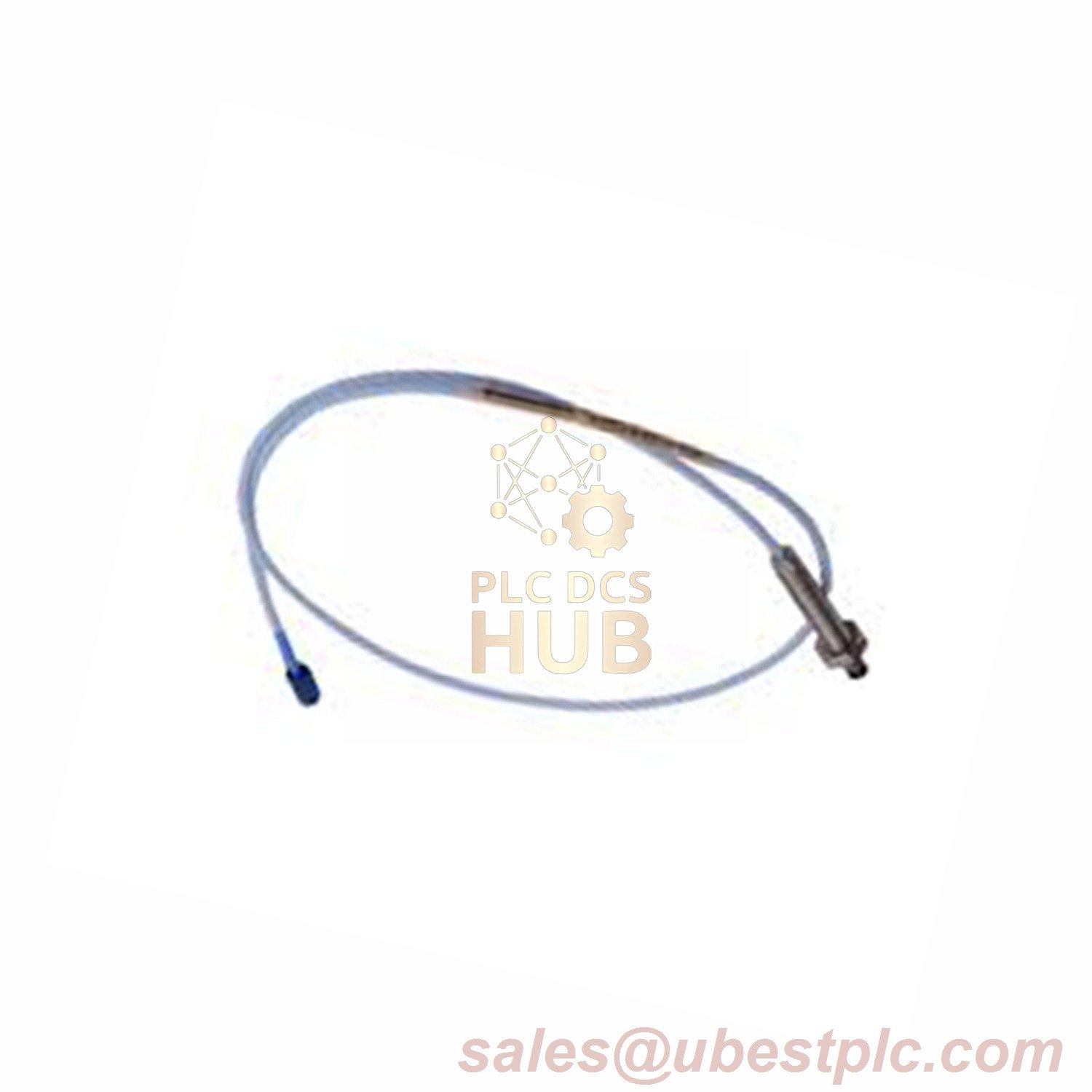

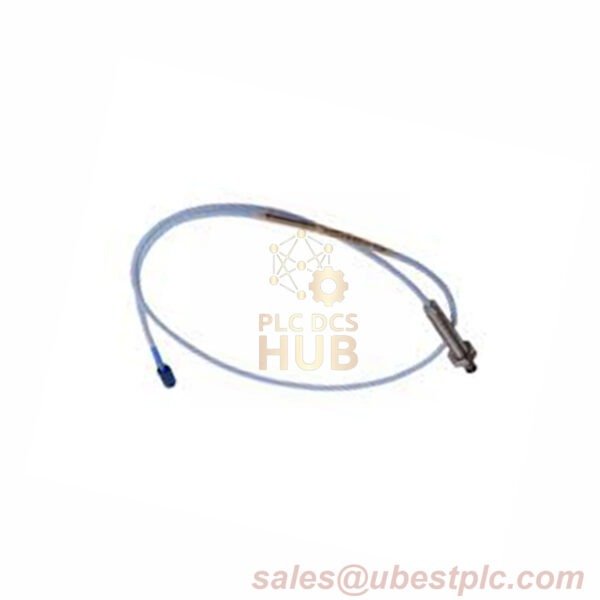

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-50-02-05) is a certified, industrial-grade sensor designed for hazardous environments requiring robust performance and extended cable reach. Featuring CSA, ATEX, and IECEx approvals, this probe integrates a 5.0-meter armored cable with a ClickLoc connector, ensuring reliability in explosive atmospheres.
Technical Specifications
- Brand: Bently Nevada
- Model: 330141-08-50-02-05
- Suffix Breakdown:
- 08: 0.8-inch case length
- 50: 5.0-meter cable (16.4 feet)
- 02: Miniature coaxial ClickLoc connector + standard cable
- 05: CSA, ATEX, IECEx certifications
- Suffix Breakdown:
- Probe Tip: Polyphenylene sulfide (PPS)
- Armor Material: 316L stainless steel braided shielding (0.6 mm thickness)
- Compliance & Reliability
- Standards:
- API 670 (machinery protection), ISO 10816-3 (vibration severity), and IECEx Scheme (IEC 60079-0/11).
- Testing:
- Hi-Pot tested at 3,000 V AC (leakage <5 mA).
- MTBF: 350,000 hours (Telcordia SR-332, Bellcore).
- Standards:
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
