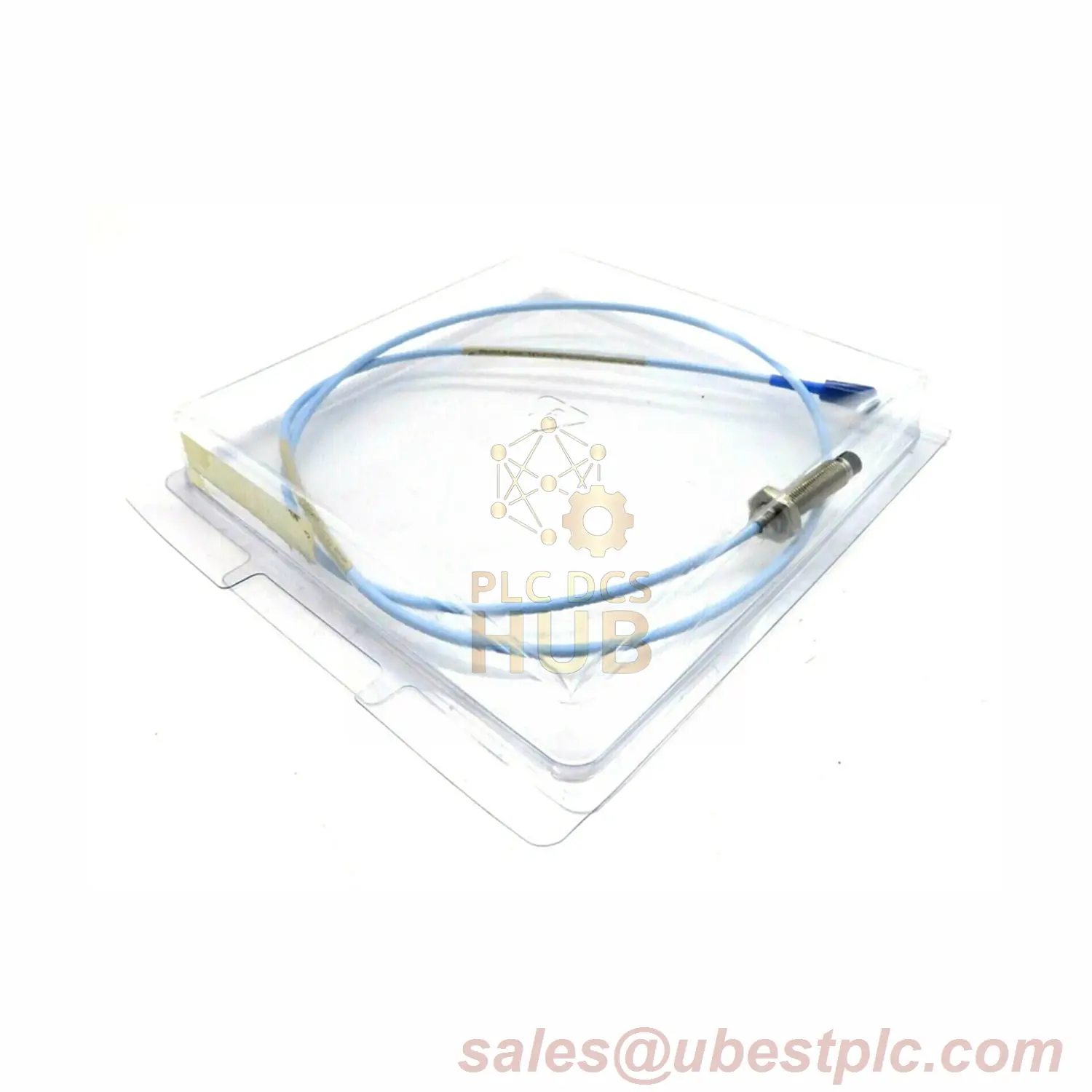

Bently Nevada 3300 Series 5mm Proximity Probe: Precision Gap Monitoring
Made in USA. Industrial-grade 5mm vibration probe for rotating machinery. Measures shaft position in turbines, compressors, motors. Withstands extreme heat up to 177°C. Essential for predictive maintenance programs.
Complete Model Configuration
- Full Part No: 330171-00-08-90-01-05
- Unthreaded Length: 00 = 0 inches
- Case Length: 08 = 0.8 inches
- Cable Length: 90 = 9.0 meters (29.5 ft)
- Connector: 01 = ClickLoc with protector
- Approvals: 05 = Multiple agency certifications
Key Performance Metrics
- Temperature Range: -35°C to +177°C (Warning below -34°C)
- Power Supply: -17.5Vdc to -26Vdc
- Output Resistance: 50 Ω
- Max Cable Bend: 25.4mm radius
- Case Torque: 5.1 N·m recommended
- Tensile Strength: 222N cable pull rating
Rugged Construction
- Probe Tip: Chemical-resistant PPS polymer
- Case: AISI 304 stainless steel
- Thread: 1/4-28 UNF industrial standard
- Cable: Triaxial FEP insulation
- Connector: Gold-plated ClickLoc with protector
Installation Notes
- Use #3 or larger tap drill for mounting holes
- Max thread engagement: 0.375 inches
- Never exceed 7.3 N·m case torque
- Maintain 25.4mm minimum bend radius
Package & Support
- Includes: Probe assembly with connector
- Warranty: 12 months manufacturer coverage
- Global Shipping: FedEx | UPS | DHL
Common Questions
- Q: Minimum operating temperature?
A: -35°C but avoid below -34°C to protect seals - Q: Power supply requirements?
A: -17.5Vdc to -26Vdc (12mA max) - Q: Cable length options?
A: This model has fixed 9m cable - Q: Suitable for hazardous areas?
A: Yes – multiple agency approvals included
