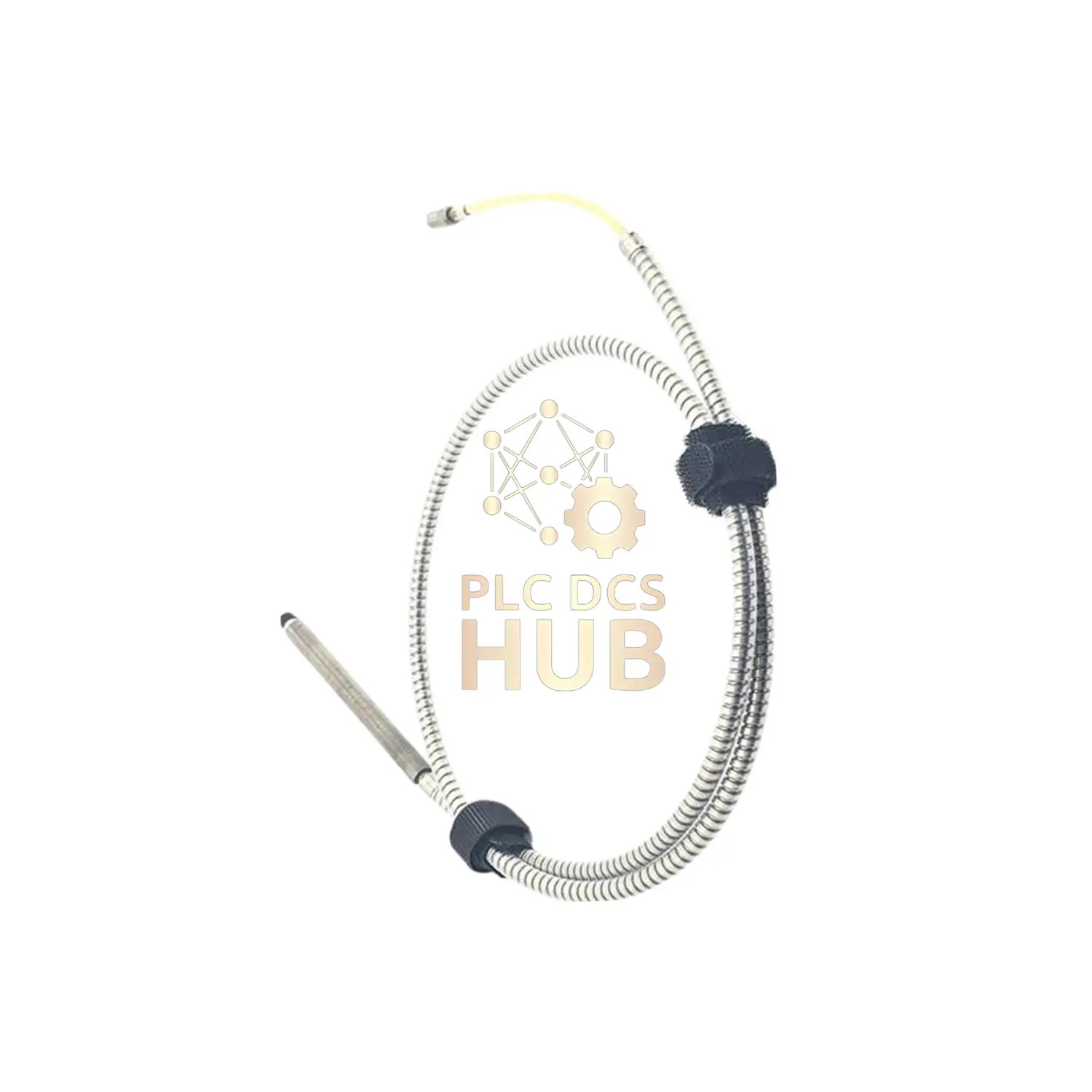

Bently Nevada 21505-00-52-10-02 Vibration Probe System
Product Description
New factory-sealed proximity vibration transducer from Bently Nevada. Measures shaft vibration in industrial machinery. Includes 12-month manufacturer warranty. Ready for immediate installation.
Technical Specifications
Brand: Bently Nevada
Full Model: 21505-00-52-10-02
Suffix Details:
- 00: 0mm unthreaded length
- 52: 5.2 inch case length
- 10: 1.0 meter cable (39″) ±0.25m tolerance
- 02: Miniature male coaxial connector
Measurement Range: 80 mils (2.0 mm)
Accuracy: ±4% scale factor (system calibrated)
Output Signal: 200 mV/mil (7.87 V/mm)
Frequency Response: 0-10 kHz (±5%)
Temperature Range:
- Proximitor: -51°C to +100°C (-60°F to +212°F)
- Probe/Cable: -34°C to +177°C (-30°F to +350°F)
Power Requirement: -17.5 to -26 VDC
Construction: 8mm diameter tip, 3/8-24 threads, stainless steel armor
Industrial Applications
Used in power plants, refineries, and manufacturing for:
- Turbine vibration monitoring
- Compressor health analysis
- Motor bearing protection
- Rotating machinery diagnostics
FAQ
Q: What’s the measurement starting point?
A: Begins at 10 mils (0.25mm) from probe face
Q: Is cable length customizable?
A: Standard 1.0m length; other options require different suffix code
Q: Chemical resistance?
A: Resists oils, ammonia solutions, dilute acids, and solvents
