Description
Product Overview

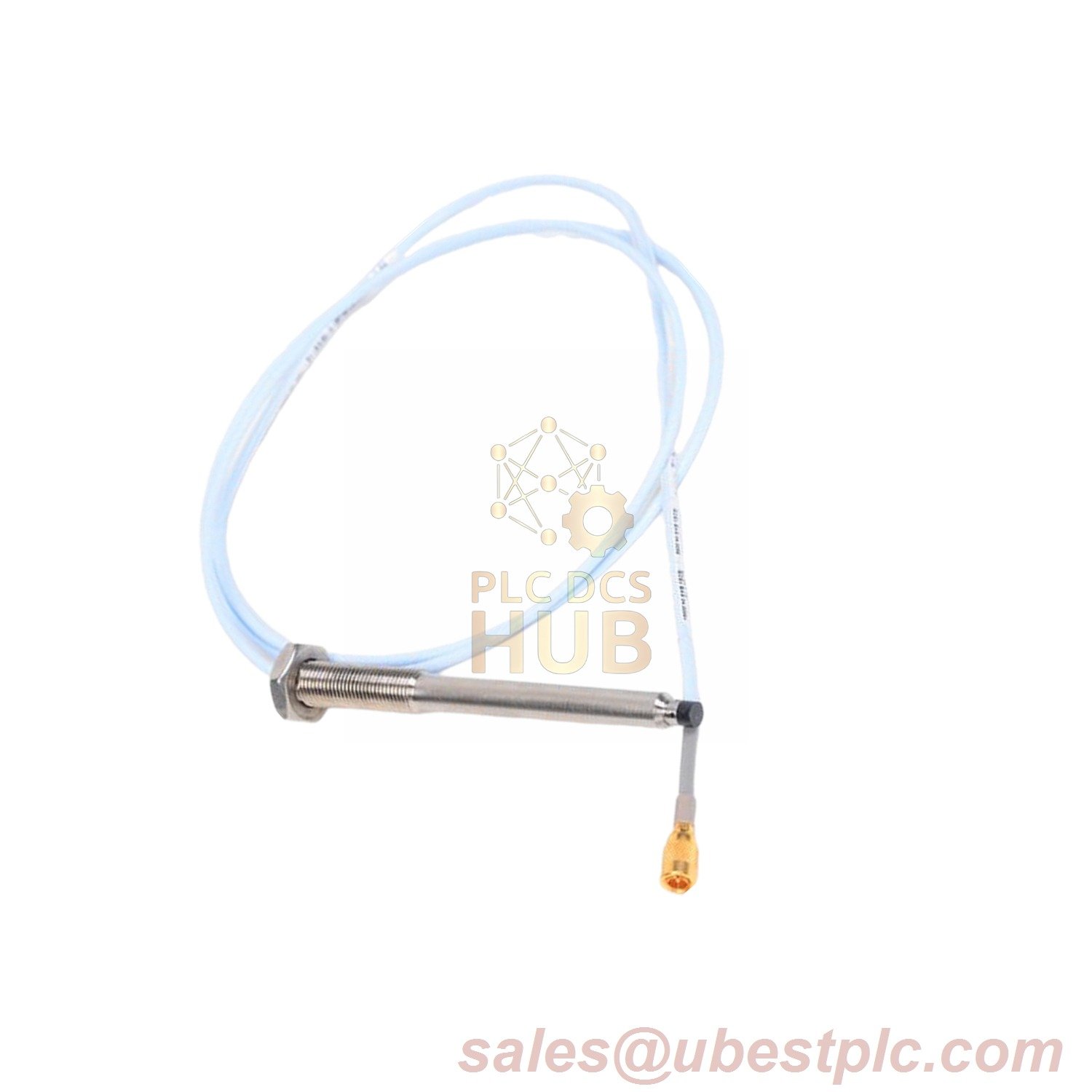

The Bently Nevada 3300 XL 8mm ETR Proximity Probe (P/N: 330191-00-40-20-00) delivers extended-range vibration monitoring for industrial machinery. With a 2.0-meter cable and no mandatory agency certifications (00 suffix), it prioritizes flexibility in non-hazardous environments. Its patented TipLoc and CableLoc designs ensure 330 N pull strength, while the 8mm PPS tip and stainless steel casing resist mechanical wear. Optional FluidLoc cables block fluid ingress, making it ideal for general-purpose applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330191-00-40-20-00 |
| Suffix Decoding | 00: 0.0″ unthreaded;
40: 4.0″ case; 20: 2.0m length; 00: No agency approvals |
| Phase Stability | ±1° over operating temperature range |
| Dynamic Range | 0–100 mils (0–2.54 mm) with ±1% linearity |
| Cable Shielding Efficiency | >90 dB (30 MHz to 1 GHz) |
| Probe Tip Thermal Expansion | 54 ppm/°C (PPS material) |
| Mounting Force | ≤15 N (3.4 lbf) axial load capacity |
| Cable Torsion Resistance | ±180°/m (armored option) |
| Flammability Rating | UL 94 V-0 (self-extinguishing PPS tip) |
| Probe Tip Surface Finish | Ra ≤0.8 μm (smoothness ensures consistent output) |
| Ground Loop Rejection | >60 dB at 50/60 Hz |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
