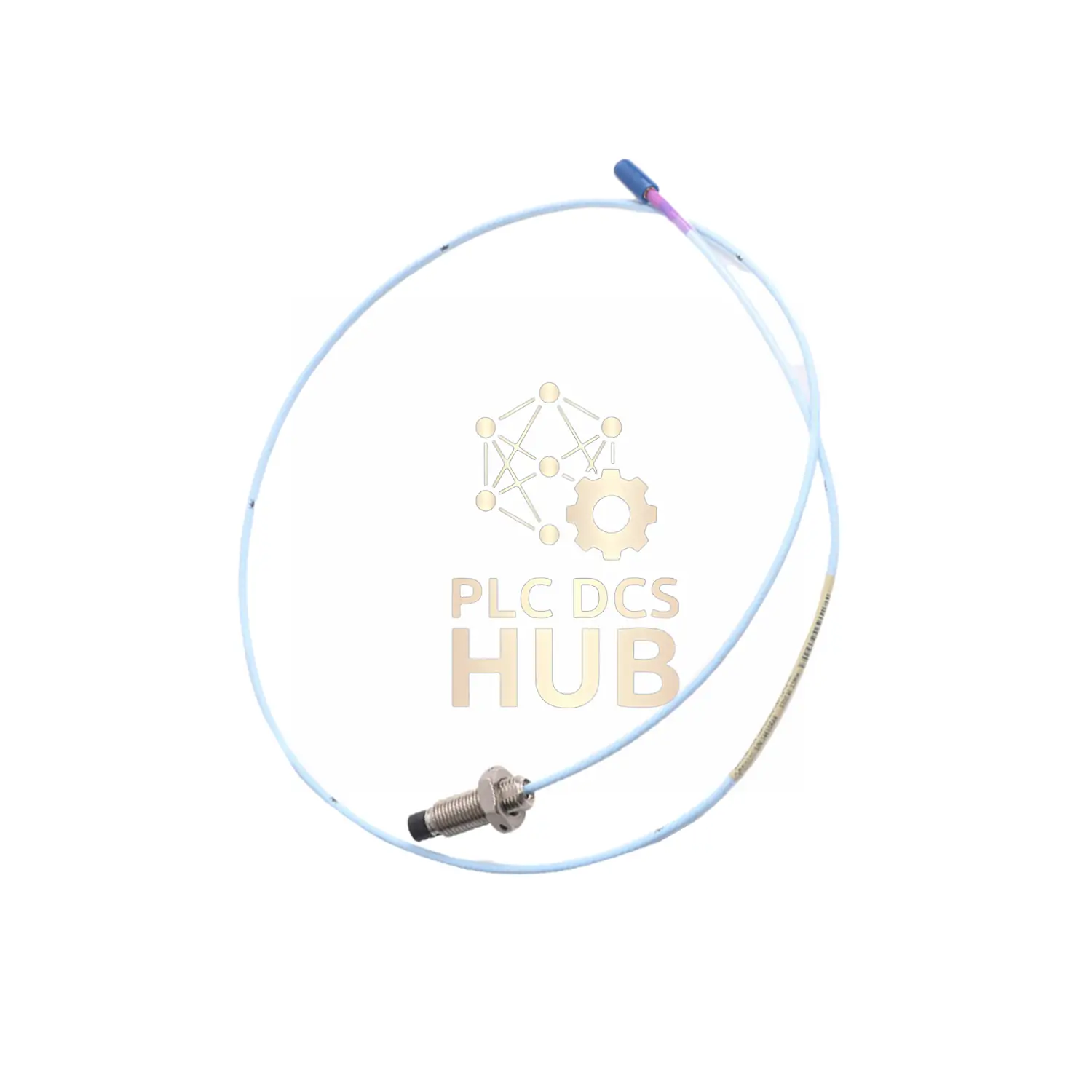

Bently Nevada 3300 High-Temperature Probe: Industrial-Grade Precision for Extreme Environments
Monitor critical machinery in 350°C/662°F conditions with this heavy-duty vibration sensor. Features armored cable and multiple safety approvals. Made in USA.
Get detailed product information:
Product Configuration
- Part Number: 330302-000-011-10-90-01-05
- Suffix Breakdown:
- 000 → Unthreaded length: 0mm
- 011 → Case length: 11mm
- 10 → Hardline cable: 1.0m (3.3 ft)
- 90 → Total length: 9.0m (30 ft)
- 01 → Armored stainless steel cable
- 05 → Multiple agency approvals
Key Specifications
- Temperature Range: -34°C to +350°C (-30°F to 662°F)
- Sensitivity: 3.94V/mm ±9.65%
- Linearity: < ±78μm deviation
- Frequency Range: 0-6,000 Hz (±3dB)
- Probe Resistance: 5.06Ω (1.0m cable)
- Measurement Range: 4.0mm linear
- Min Target Size: 30.5mm diameter
- Min Shaft Diameter: 152mm (6.0 in)
- Cable Weight: 117g/m + 12g/cm case
Shipping & Support
- 12-month product warranty
- Global delivery: FedEx, UPS, DHL
- Includes 9.0m armored cable system
- Technical support: 24/7 online
Expert Questions
- Q: What approvals does option 05 include?
A: Meets multiple industrial safety standards (details in manual) - Q: How does temperature affect accuracy?
A: Sensitivity stays within ±30% at 350°C - Q: Can I use this in explosive environments?
A: Check certifications for hazardous area ratings - Q: What maintenance is required?
A: Annual calibration checks recommended - Q: Is the armored cable flexible?
A: Yes, designed for industrial routing
Why Choose This Probe
350°C Rating
Armored Cable
±78μm Precision
Multi-Certified
