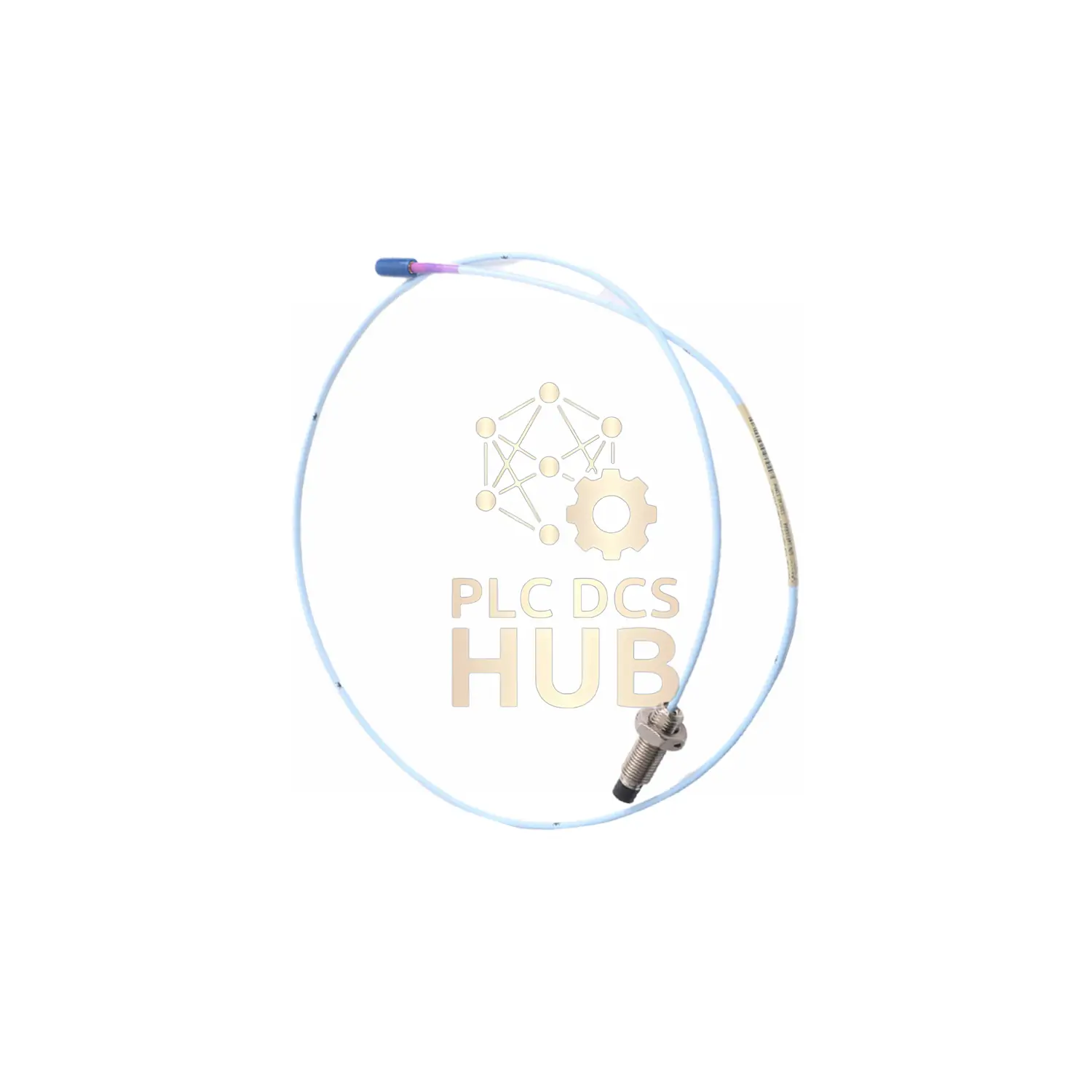

330303-006-20-90-00-00 Bently Nevada High Temperature Probe

Description

Bently Nevada 3300 XL Smooth Case Probe: No-Thread Precision

Product Number Explained

• 330303 : XL Smooth Case Base
• 006 : 0.6 inch case length
• 20 : 2.0m hardline cable
• 90 : 9.0m total length
• 00 : No cable armor
• 00 : No approvals needed

Technical Specifications

• Temp Range: -34°C to +350°C
• Sensitivity: 3.94 V/mm ±9.65%
• Response: 0-6 kHz (±3dB)
• Weight: 117g/m + 12g/cm
• Min Target: 30.5mm diameter
• Linearity: ±78μm deviation

Industrial Benefits

• Ceramic tip handles thermal cycling
• Smooth case for tight spaces
• Lightweight design: 12g/cm case
• ±30% sensitivity at max temp

Shipping & Warranty

• ???? FedEx/UPS/DHL worldwide
• ????️ 12-month product warranty
• ???? Protective foam packaging

Expert FAQs

• Q: Mounting method for smooth case?
  A: Use compression fittings or custom holders
• Q: Cable flexibility without armor?
  A: High-flex jacket allows tight bends
• Q: Chemical resistance rating?
  A: 316L SST resists acids and solvents
• Q: Vibration measurement range?
  A: 4.0mm linear range (160 mil)
• Q: Suitable for food industry?
  A> Yes – smooth case avoids particle traps

Get Product Documents

Download free resources:

• • Smooth Case Installation
  • Technical Specifications
