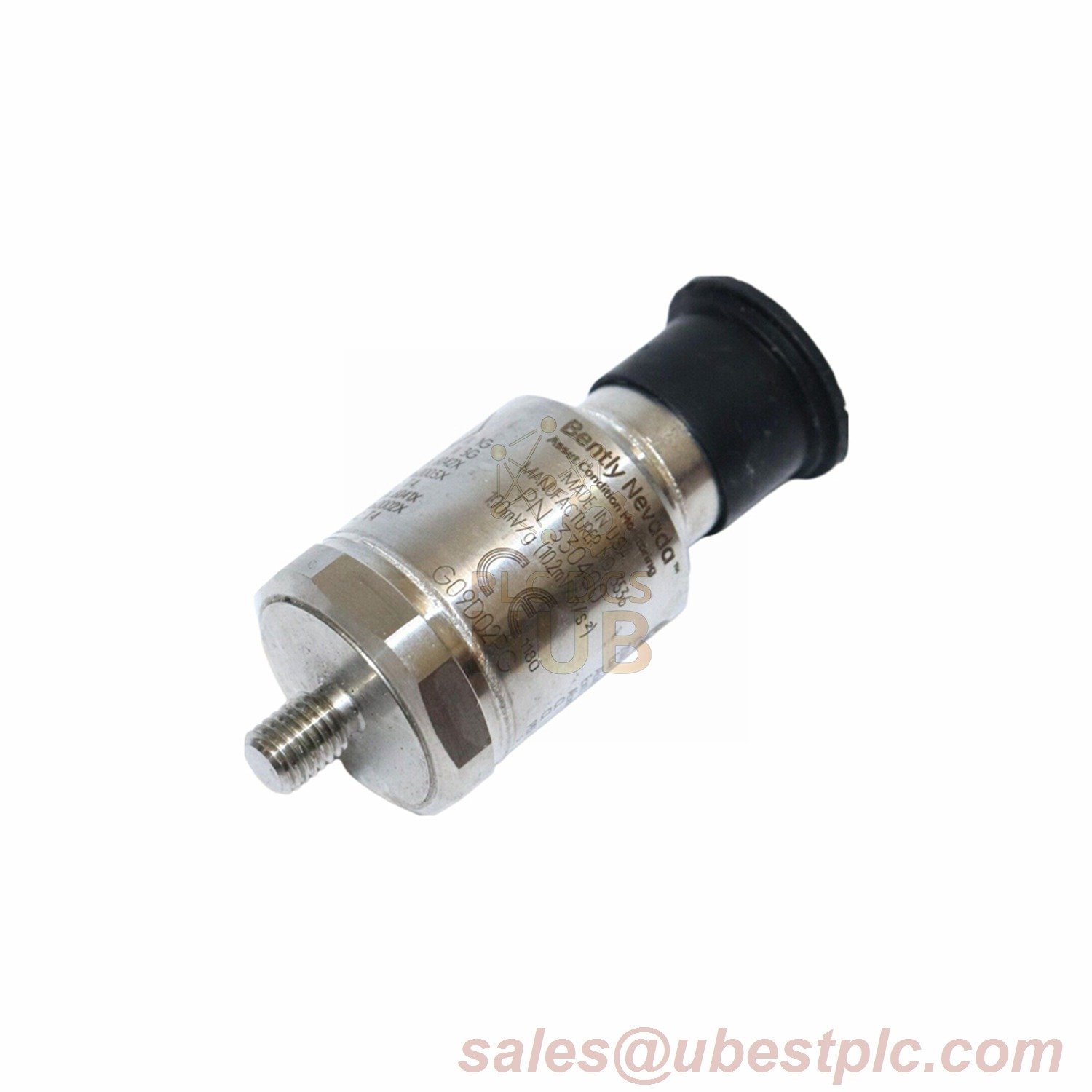

The 330400-01-05 is a high-precision industrial accelerometer designed for vibration monitoring in harsh environments. Certified for hazardous areas (CSA/ATEX/IECEx), it features a 10.2 mV/m/s² sensitivity and operates in -55°C to +121°C extremes. Ideal for machinery health analysis with IP68 sealing and hermetically sealed construction.
Technical Specifications
| Model | 330400-01-05 |
|---|---|
| Sensitivity | 10.2 mV/m/s² ±5% (100 mV/g) |
| Frequency Response | 10 Hz – 15 kHz (±3 dB) |
| Acceleration Range | 490 m/s² (50 g) peak |
| Temperature Range | -55°C to +121°C (-67°F to +250°F) |
| Weight | 99 g (3.5 oz) |
| Mounting | ¼-28 UNF integral stud | 4.1 N·m (3.0 ft·lb) torque |
| Cable Length | 305 m (1000 ft) maximum |
