Bently Nevada – Accelerometer 330400-01-RU

Description

Description

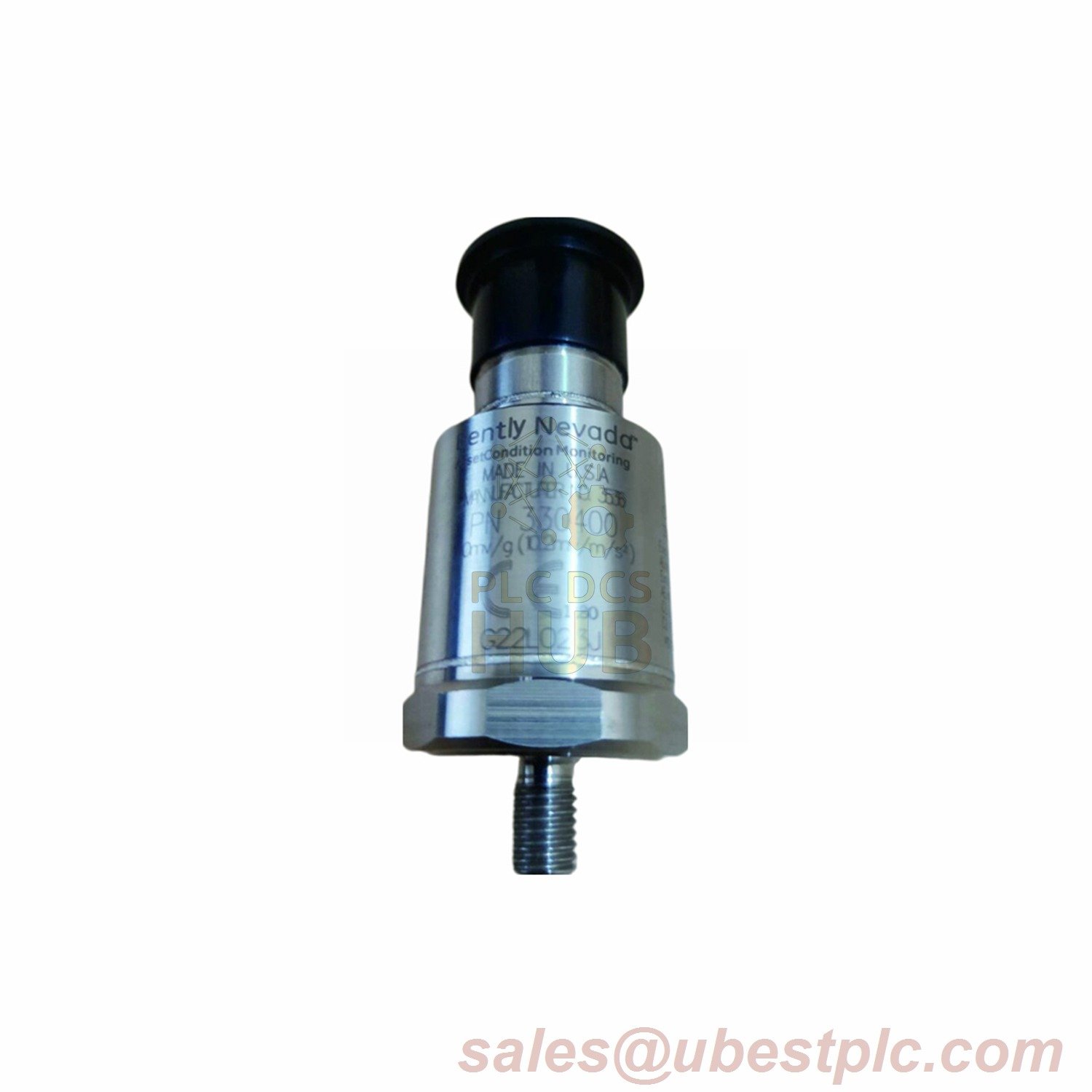

The Bently Nevada 330400-01-RU Accelerometer is a precision industrial sensor certified for RU regions. Designed for harsh environments, it features a 10.2 mV/m/s² sensitivity and a 316L stainless steel housing. With a ¼-28 UNF mounting stud and IP68-rated case, this accelerometer delivers reliable vibration monitoring in extreme conditions.

Technical Specifications

• Model: 330400-01-RU
• Suffix Code:
  • 01: ¼-28 UNF integral stud
  • RU: Country-specific certification
• Performance:
  • Sensitivity: 10.2 mV/m/s² ±5% (100 mV/g)
  • Frequency Response: 10 Hz–15 kHz (±3dB)
  • Amplitude Linearity: ±1% up to 50 g
  • Noise Floor: 0.004 g rms (10 Hz–15 kHz)
• Environmental:
  • Temperature Range: -55°C to +121°C (-67°F to +250°F)
  • Shock Survivability: 5000 g peak
  • IP Rating: 68 (dust/watertight)
• Physical:
  • Weight: 100 g (3.5 oz)
  • Dimensions: 23mm diameter × 59mm height
  • Mounting Torque: 4.1 N·m (3.0 ft·lb)
  • Cable Length: 305 m (1000 ft) max
