Description

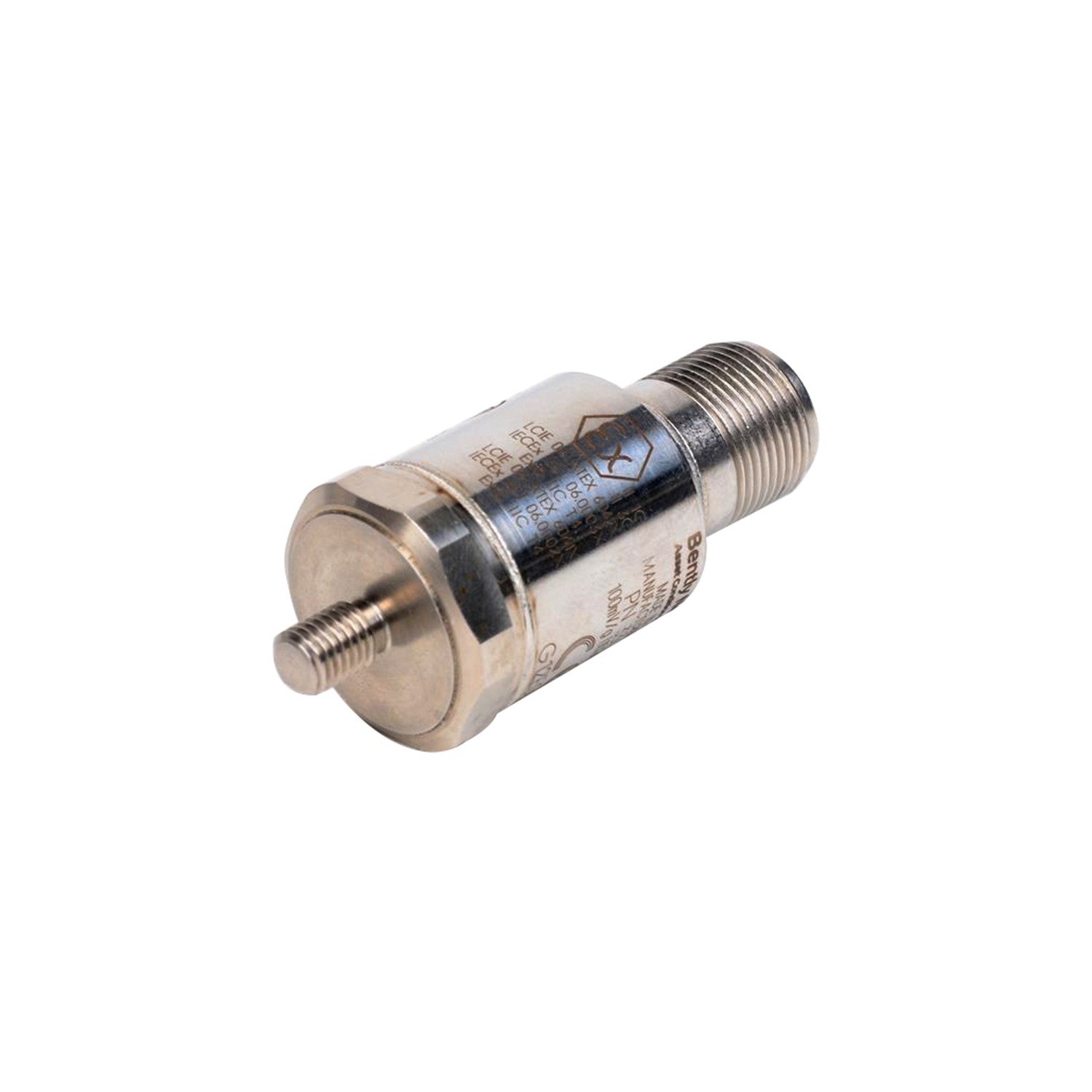

Bently Nevada Accelerometer
Made in the U.S.A., 330425-02-05 is globally certified for hazardous areas with CSA, ATEX, and IECEx approvals. Featuring an M8 x 1 integral stud mount and 316L stainless steel housing, it delivers precision vibration monitoring in extreme conditions with robust durability.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330425-02-05 |
| Suffix Codes | 02: M8 x 1 Integral Stud 05: CSA/ATEX/IECEx Certifications |
| Acceleration Range | 490 m/s² (50 g) peak (10 Hz–15 kHz) |
| Frequency Response | 10 Hz–15 kHz (±3 dB) 30 Hz–10 kHz (±10%) |
| Noise Floor | 0.039 m/s² (0.004 g) rms |
| Temperature Sensitivity | -11% to +3% (-55°C to +121°C) |
| Base Strain Sensitivity* | G-series: 49 mm/s²/mstrain Pre-G-series: 980 mm/s²/mstrain (w/o base) *Use Mounting Base for minimal strain |
| Physical | Weight: 99 g (3.5 oz) Dimensions: 23 mm dia. x 59 mm H Connector: 3-pin MIL-C-5015 Material: 316L Stainless Steel |
| Environmental | IP Rating: IP68 (sensor only) Humidity: 100% condensing Shock: 5000 g survivability |
Contact Us: For COO requests or technical support, email sales@ubestplc.com.
