Description

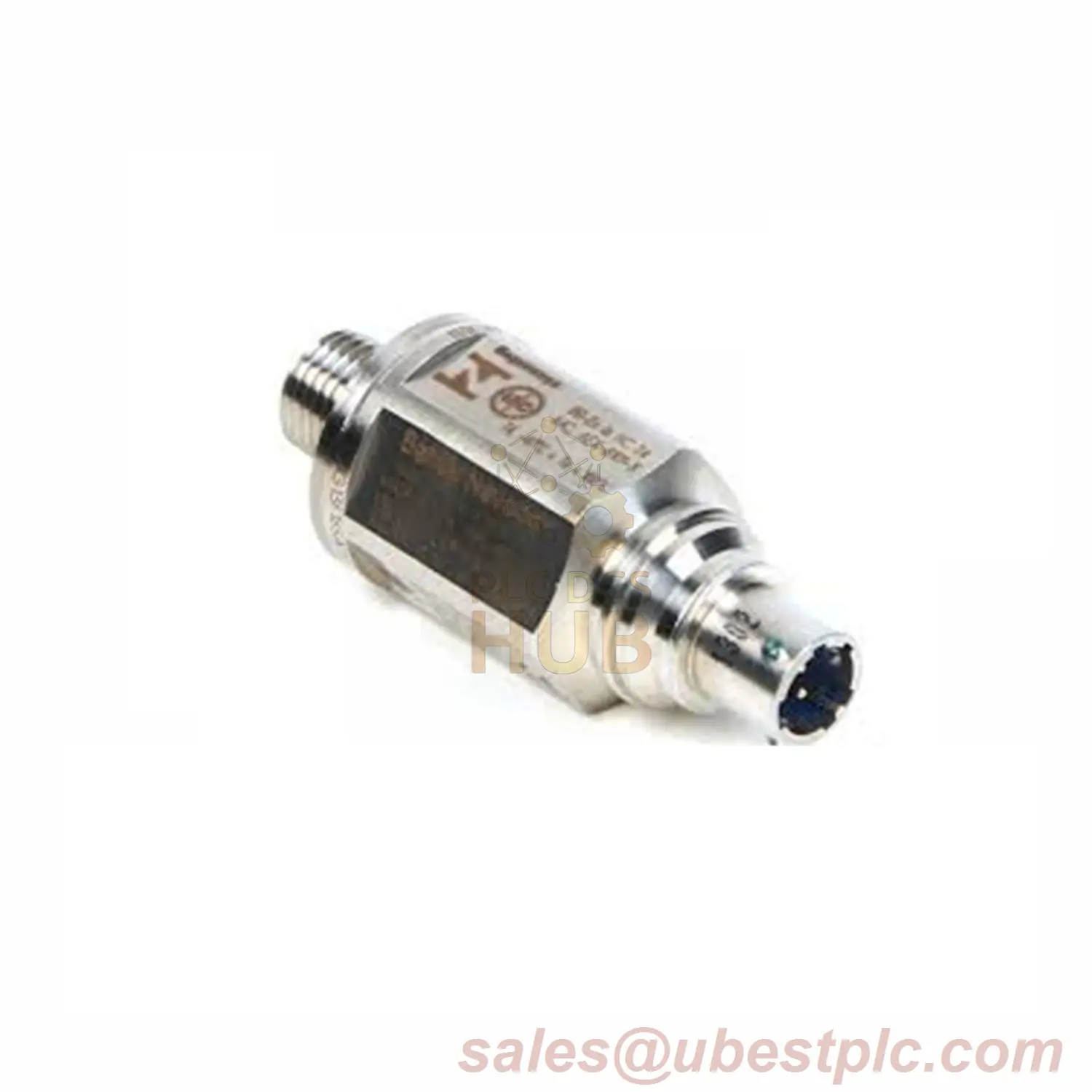

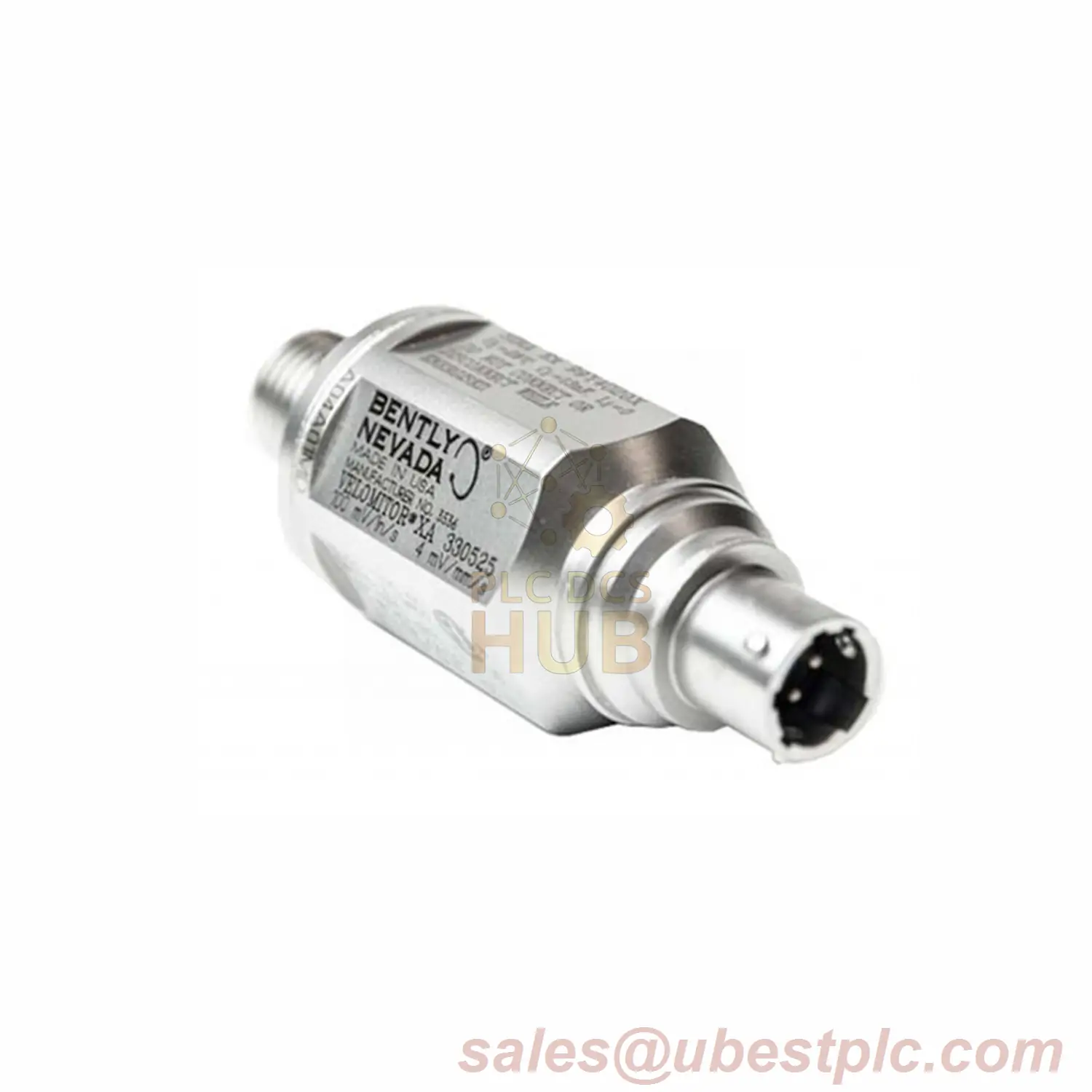

Bently Nevada 330500-01-00 Velomitor Piezo-Velocity Sensor
Product Overview
The Bently Nevada 330500-01-00 is a industrial-grade vibration sensor with ±5% sensitivity tolerance and 1270 mm/s peak measurement. Built in 316L stainless steel, it withstands extreme temperatures (-55°C to 121°C) for reliable machinery health monitoring.
Key Specifications
- Brand: Bently Nevada (Baker Hughes)
- Full Model: 330500-01-00
- -01 Suffix: 1/2-20 UNF mounting thread
- -00 Suffix: No agency approval needed
- Range: 0-1270 mm/s (50 in/s)
- Accuracy: ±2% @ 152 mm/s
- Output: 3.94mV/mm/s (100mV/in/s)
- Temp Range: -55°C to 121°C
Installation Guide
- Torque: 24-40 in-lb (32-46 kg cm)
- Optimal cable: 208 ft (63m)
- Polarity: Pin A+ when case moves toward connector
Certifications
ATEX/IECEx Ex ia IIC T4 | AEx ia IIC T4 | DNV Maritime | RoHS | EMC Directive
Package & Shipping
- Includes: Sensor, mounting kit, docs
- 12-month warranty
- Global delivery: FedEx/UPS/DHL
Industry Applications
- Power plant turbine monitoring
- Offshore oil pump diagnostics
- Factory motor imbalance detection
FAQ
Q: Max cable length?
A: 305m with 02173006 cable
Q: Explosion-proof rating?
A: Class I Div 1/Div 2 certified
