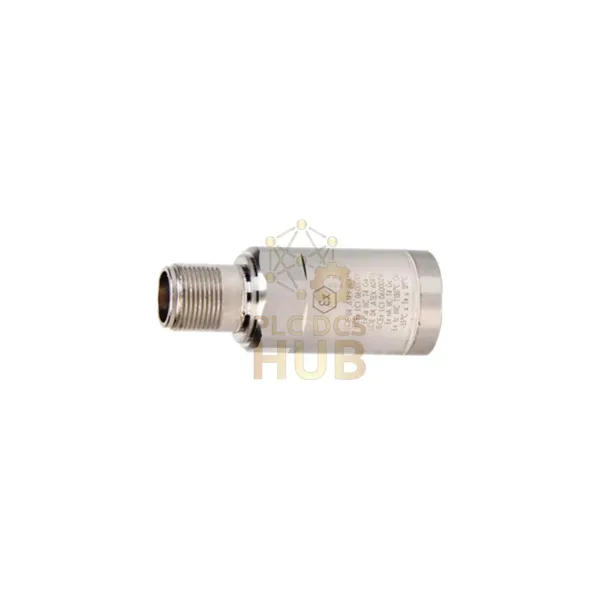

330500-05-02 Bently Nevada | 330500 Velomitor Piezo-velocity Sensor

Description

Bently Nevada Velomitor Piezo-Velocity Sensor: Hazardous Area Ready

Key Features

Technical Specs for 330500-05-02

• ► Sensitivity: 3.94 mV/mm/s (±5%)
• ► Frequency: 4.5Hz–5kHz (±3dB)
• ► Max Velocity: 1270 mm/s peak
• ► Shockproof: 5000g peak
• ► Humidity: 100% (non-submerged)

Installation Guide

1. Torque: 24–40 in-lb (32–46 kg cm).
2. Use 1/4-18 NPT mount (order 330525).
3. Connect via 2-pin MIL-C-5015.

Certifications

• ✅ ATEX Ex ia IIC T4 (Zone 0/1)
• ✅ DNV Maritime (Ship/Offshore)
• ✅ FCC Part 15 & RoHS compliant

Real-World Uses

• — Wind turbine gearbox monitoring
• — Ship engine vibration analysis
• — Chemical plant pump diagnostics

Package & Warranty

• ► Sensor unit
• ► Mounting hardware (1/4-18 NPT adapter not included)
• ► 12-month warranty
• ► COO available on request

Shipped via FedEx/DHL/UPS (3-5 days).

FAQ

Q: Safe for explosive areas?
A: Yes – ATEX Zone 0/1 certified.

Q: Cable length limit?
A: Up to 305m (1000ft) without signal loss.
