Description

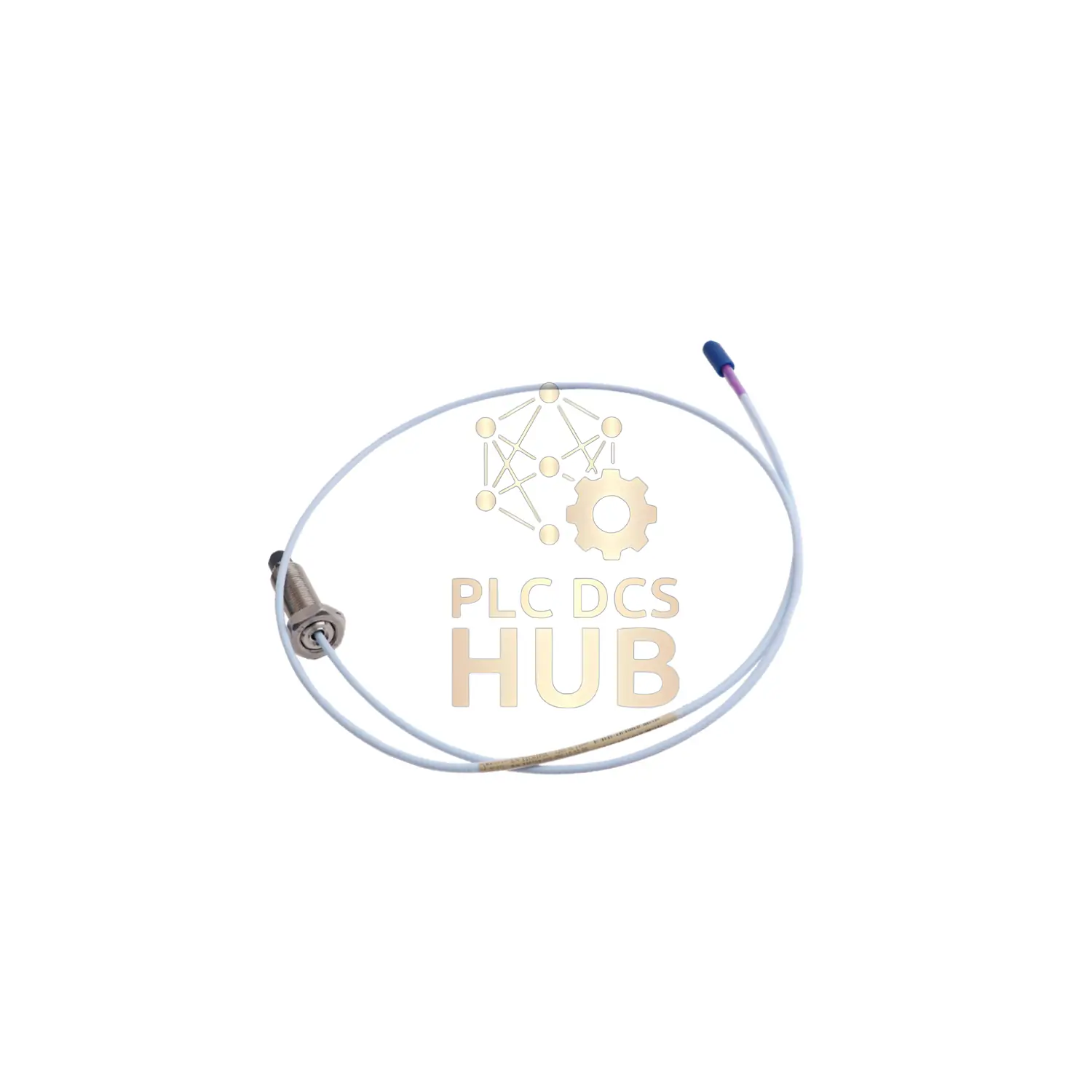

Bently Nevada 3300 XL 11mm Proximity Probe – Reliable Vibration Sensing
Precision-engineered for industrial monitoring, the Bently Nevada 330701-00-24-10-02-05 proximity probe delivers accurate vibration measurements with a 1-meter cable and rugged stainless steel construction. Made in the USA.
Product Highlights
- 1-meter (3.3 ft) triaxial cable for flexible installation
- 1/2-20 UNF thread for secure mounting
- Wide temperature range: -51°C to +177°C (-60°F to +351°F)
- 304 stainless steel case for durability
- Miniature ClickLoc connector for easy setup
- Multiple agency approvals for compliance
Complete Part Number Breakdown
- 330701 – Base model (3300 XL 11mm)
- 00 – Unthreaded length (0 in)
- 24 – Case length (2.4 in)
- 10 – Cable length (1.0 m)
- 02 – ClickLoc connector, standard cable
- 05 – Multiple agency approvals
Key Technical Data
- Probe resistance: 5.9 ± 0.5 ohms
- Cable impedance: 75Ω triaxial (FEP insulated)
- Max thread torque: 45.2 N•m (400 in•lb)
- Recommended torque: 15.2 N•m (133 in•lb)
- Minimum bend radius: 25.4 mm (1.0 in)
- Connector torque: Finger tight (max 0.565 N•m)
- Pressure seal: Viton O-ring (not factory-tested)
Shipping & Warranty
- Shipping weight: 0.17 kg
- Delivery options: FedEx, UPS, DHL
- Warranty: 12 months
5 Expert FAQs
- Q: Can this probe handle high-pressure environments?
A: It seals differential pressure but isn’t pressure-tested by default. Contact us for custom testing. - Q: Is the cable oil-resistant?
A: Yes, the FEP-insulated cable resists oils and chemicals. - Q: What’s the difference between 1m and 5m models?
A: Cable length—this model (330701-00-24-10-02-05) has a 1m cable. - Q: Can I use this in sub-freezing temperatures?
A: Yes, but below -34°C (-30°F), the seal may degrade faster. - Q: Is the connector waterproof?
A: No, ensure it’s protected from moisture in harsh environments.
Need full specs? Download the product manual here for installation and technical details.
