330701-00-24-90-11-00 Bently Nevada 3300 XL 11 mm Proximity Probe

Description

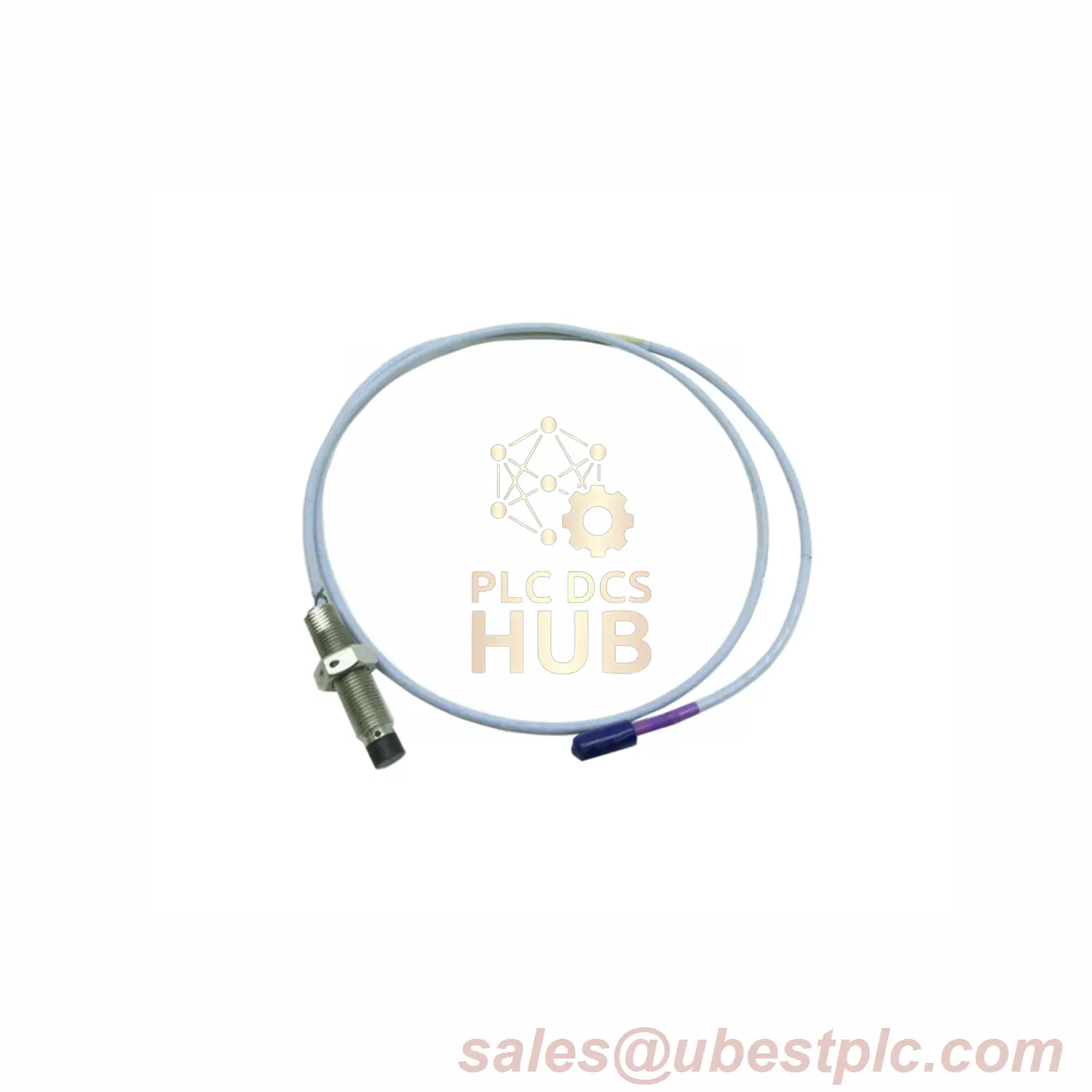

Bently Nevada 3300 XL 11mm Vibration Probe

Product Highlights

Precision industrial probe for machine health monitoring. Made in USA with 9-meter FluidLoc cable. Works in extreme conditions.

Key Specifications

• Cable: 9m triaxial (75 Ω)
• Resistance: 8.5Ω ±1.1Ω
• Thread: 1/2-20 UNF or M16x1.5
• Temperature Range: -51°C to +177°C
• Min Bend Radius: 25.4mm
• Weight: 0.17kg

Full Product Identification

• Brand: Bently Nevada
• Model: 3300 XL 11mm Probe
• Part Number: 330701-00-24-90-11-00
• Suffix Details:
  • 00: 0.0 in unthreaded length
  • 24: 2.4 in case length
  • 90: 9.0 meter cable
  • 11: FluidLoc cable with ClickLoc
  • 00: No agency approvals

Technical Advantages

• PPS tip material for wear resistance
• Stainless steel case (AISI 304)
• Viton O-ring pressure seal
• Miniature ClickLoc connector
• FEP-insulated FluidLoc cable

Installation Guide

• Max torque: 15.2 N•m (133 in•lb)
• Thread engagement: 0.75 in max
• Connector torque: Finger tight only
• Keep above -34°C before installation

Compatibility Notes

This Bently Nevada 3300 XL probe works with most monitoring systems. Uses standard 1/2-20 UNF or M16x1.5 mounts.

Package Contents

• Probe with 9m cable
• Connector protector
• 12-month warranty

Shipping Information

Fast global delivery via FedEx, UPS or DHL. Ships same day.

Frequently Asked Questions

• What cable protection does it have?
  FluidLoc jacket resists chemicals
• Can I use in high pressure areas?
  Viton seal handles pressure differences
• Is calibration included?
  Factory calibrated per specifications
• Minimum installation temperature?
  Do not install below -34°C
• Cable length options?
  1m, 5m or 9m versions available

Get Complete Documentation

Download full specs for Bently Nevada 330701-00-24-90-11-00:
3300 XL 11 mm Proximity Transducer System Datasheet
