Description

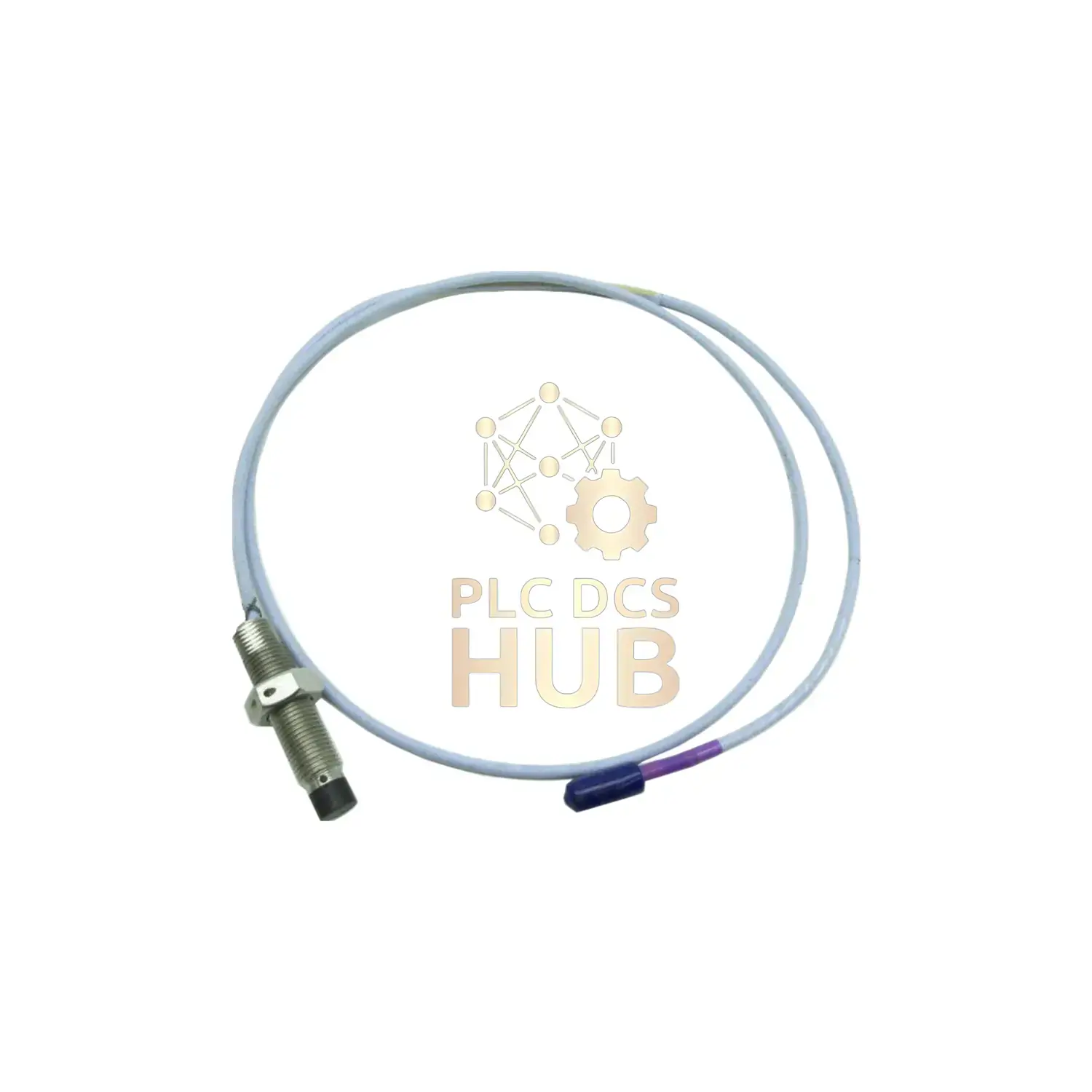

Bently Nevada 330701-00-30-90-02-00 Long-Reach Vibration Probe
9-meter cable industrial sensor with 3-inch stainless steel body. 1/2-20 UNF thread connection. Ideal for hard-to-reach machinery. Made in USA.
Model Code Details
- 330701 = 11mm Probe (1/2-20 thread)
- 00 = No unthreaded section
- 30 = 3.0 inch case length
- 90 = 9.0 meter cable
- 02 = ClickLoc connector
- 00 = No special approvals
Electrical & Physical Specs
- Resistance: 8.5Ω ±1.1 (9m cable)
- Thread Size: 1/2-20 UNF
- Max Thread Depth: 0.750 inch
- Cable Type: 75Ω triaxial FEP
- Bend Radius: 1.0 inch min
Construction Materials
- Sensor Tip: PPS plastic
- Probe Body: 304 stainless steel
- Cable Jacket: FEP insulation
- Shipping Weight: 0.17 kg
Performance Range
- Temp Range: -51°C to +177°C
- Seal Material: Viton O-ring
- Min Temp Warning: Do not use below -34°C
Mounting Instructions
- Recommended Torque: 15.2 N•m (133 in•lb)
- Max Torque: 45.2 N•m (400 in•lb)
- Connectors: Finger tight only
System Compatibility
Works with Bently Nevada 3300 monitors. Fits GE and AB systems using 11mm probes.
Certification
US Origin Certificate available. No agency approvals.
Package Contents
- 1 vibration probe (9m cable)
- Product documentation
- 12-month quality warranty
Shipping Options
Fast global delivery via FedEx/UPS/DHL
Frequently Asked
Q: Cable length options?
A: This model has fixed 9m cable
Q: Thread type difference?
A: 1/2-20 UNF (smaller than 5/8-18)
Q: Max cable distance?
A: 9 meters – longest available
Q: Temperature limits?
A: -51°C to +177°C operating range
Q: Warranty coverage?
A: 12 months against defects
