Description

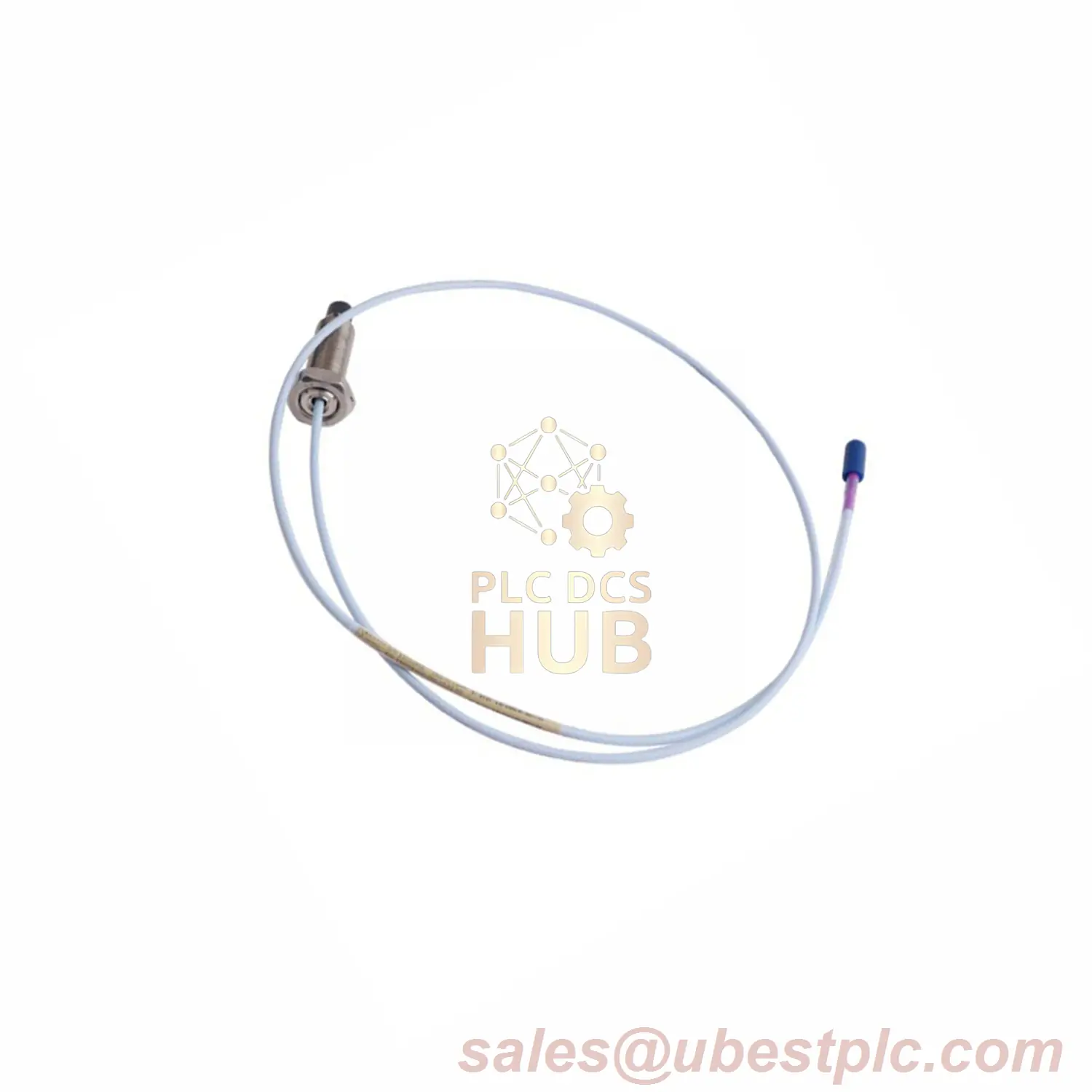

Bently Nevada Precision Proximity Sensor
Product Identification
- Manufacturer: Bently Nevada
- Part Number: 330707-00-26-10-11-CN
- Type: 3300 XL 11 mm Probe
- Origin: Made in USA
- Certificates: COO available
Configuration Details
- 330707 โ Core model (5/8-18 thread)
- 00 โ Unthreaded section: 0 inch
- 26 โ Case length: 2.6 inch
- 10 โ Cable length: 1.0 meter
- 11 โ ClickLoc connector type
- CN โ China market version
Technical Specifications
| Electrical Resistance | 5.9 ยฑ 0.5 ฮฉ |
| Thread Engagement | Max 0.938 inch |
| Installation Torque | 15.2 Nโขm (133 inโขlb) |
| Bend Radius | 25.4 mm minimum |
| Temperature Range | -51ยฐC to +177ยฐC |
| Seal Material | Viton O-ring |
Special Features
- China market specific version
- PPS polymer sensing tip
- Stainless steel housing
- Compact 2.6 inch case
Installation Guide
- Tighten by hand plus quarter turn
- Keep above -34ยฐC during installation
- Maintain 25.4 mm cable bend radius
- Use on shafts larger than 11 mm
Shipping & Support
- Weight: 0.17 kg
- Carriers: FedEx / UPS / DHL
- Warranty: 12 months
- Condition: Factory new in sealed packaging
Frequently Asked Questions
Q: What does CN suffix mean?
A: China market configuration
Q: How long is the case?
A: 2.6 inches compact design
Q: Minimum installation temperature?
A: -34ยฐC to protect seals
Q: Cable bend restrictions?
A: Minimum 25.4 mm bend radius
Q: Thread specifications?
A: 5/8-18 UNF standard
