Description

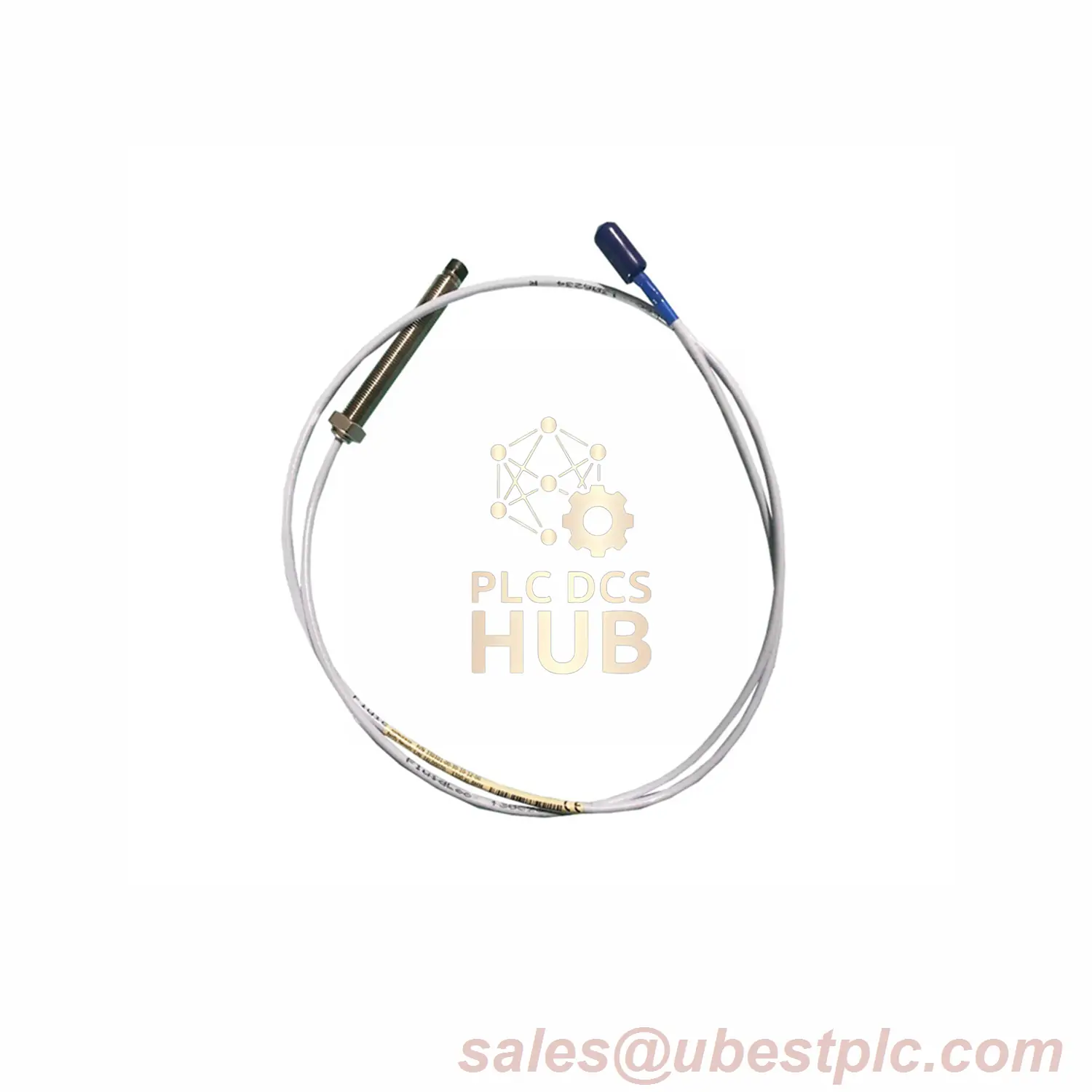

Bently Nevada 3300 XL 11mm Probe: Compact Machinery Monitor
Short-case sensor for tight spaces. Made in USA. Multi-certified. 12-month guarantee.
Part Number Decoder
330702-00-10-10-02-05
- ● 00 : 0″ unthreaded section
- ● 10 : 1.0 inch compact case
- ● 10 : 1.0 meter cable (3.3 ft)
- ● 02 : ClickLoc connector
- ● 05 : Multi-agency certified
Technical Specifications
- ???? Case Size: 1.0 inch (space-saving)
- ???? Cable Length: 1.0 meter
- ⚡ Resistance: 5.9Ω ±0.5
- ????️ Temp Range: -51°C to +177°C
- ???? Connector: ClickLoc (finger-tight)
Key Advantages
- ▶︎ Short 1″ Case – Fits confined areas
- ▶︎ Multi-Certified – Meets global standards
- ▶︎ PPS Tip – Resists chemicals and wear
- ▶︎ 304 SST Body – Corrosion protection
Installation Guide
- ⚙️ Max torque: 15.2 N·m (133 in·lb)
- ↪️ Min bend radius: 25.4mm (1.0 in)
- ❄️ Warning: Seal damage below -34°C
- ???? Thread: 1/2-20 UNF
Warranty & Delivery
- ????️ 12-month product warranty
- ???? Worldwide shipping: FedEx/UPS/DHL
- ???? Net weight: 0.17 kg
Expert Questions Answered
- Q: Minimum installation space needed?
A: 1.5x case length clearance required - Q: Cable replacement possible?
A: No – integrated armored cable - Q: Chemical cleaning allowed?
A: Yes – PPS tip resists most solvents - Q: Humidity limits?
A: 0-100% non-condensing - Q: Response frequency range?
A: 0-10 kHz standard
