330702-00-24-10-02-00 Bently Nevada 11 mm Proximity Probe

Description

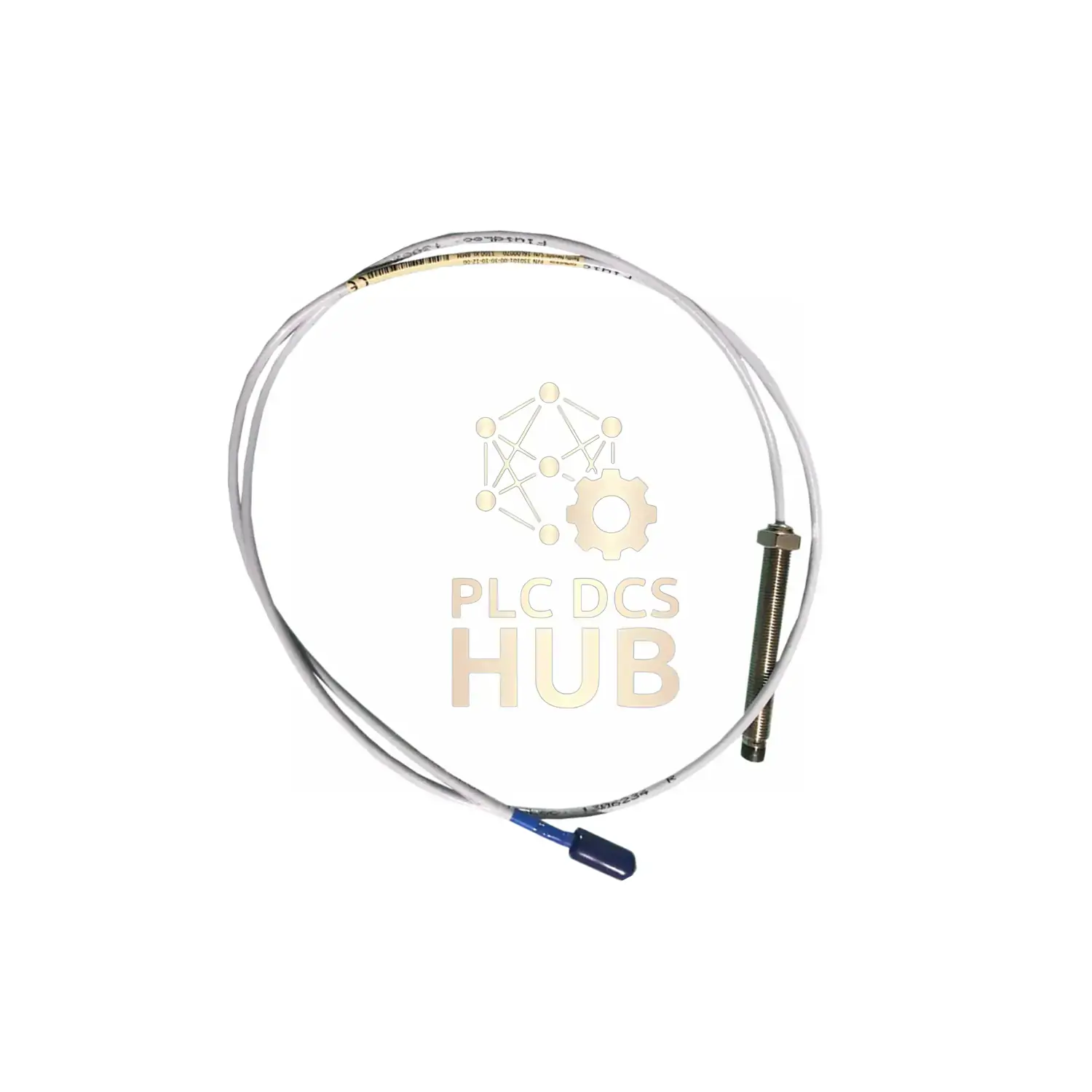

Bently Nevada 330702-00-24-10-02-00 – Compact 11mm Vibration Probe

New U.S.-made sensor with 1-year warranty. Ships fast via FedEx/UPS/DHL.

Key Benefits

• ✅ Short 1m cable for compact spaces
• ✅ Works in -51°C to +177°C (-60°F to 351°F)
• ✅ Lightweight – only 0.17kg
• ✅ Small 11mm tip fits tight spots
• ✅ Easy finger-tight connectors

Part Number Decoder

• ┌ 330702 → 11mm Probe Base
• ├─ 00 → 0″ Unthreaded
• ├─ 24 → 2.4″ Case
• ├─ 10 → 1m Cable
• ├─ 02 → Mini ClickLoc®
• └─ 00 → No Approvals

Technical Specs

• Resistance: 5.9Ω ±0.5Ω
• Bend Radius: 25.4mm (1 inch)
• Max Torque: 45.2 N•m (400 in•lb)
• Seal: Viton® O-ring
• Weight: 0.17kg (0.37 lbs)
• Install Temp: Above -34°C (-30°F)

Expert Questions Answered

• Q: Is this waterproof?
  A: Sealed against moisture, not full submersion
• Q: Can I use this with 5m systems?
  A: Designed for 1m systems only
• Q: Chemical resistance?
  A: FEP cable resists most chemicals
• Q: Thread size options?
  A> 1/2-20 UNF or M16x1.5
• Q: Pressure testing available?
  A: Custom testing on request

Package Contents

• 11mm probe with 1m cable
• Miniature ClickLoc® connector
• Protection caps

Note: Backed by 12-month manufacturer warranty.
