330702-00-24-50-11-00 | Bently Nevada 11 mm Proximity Probes

Description

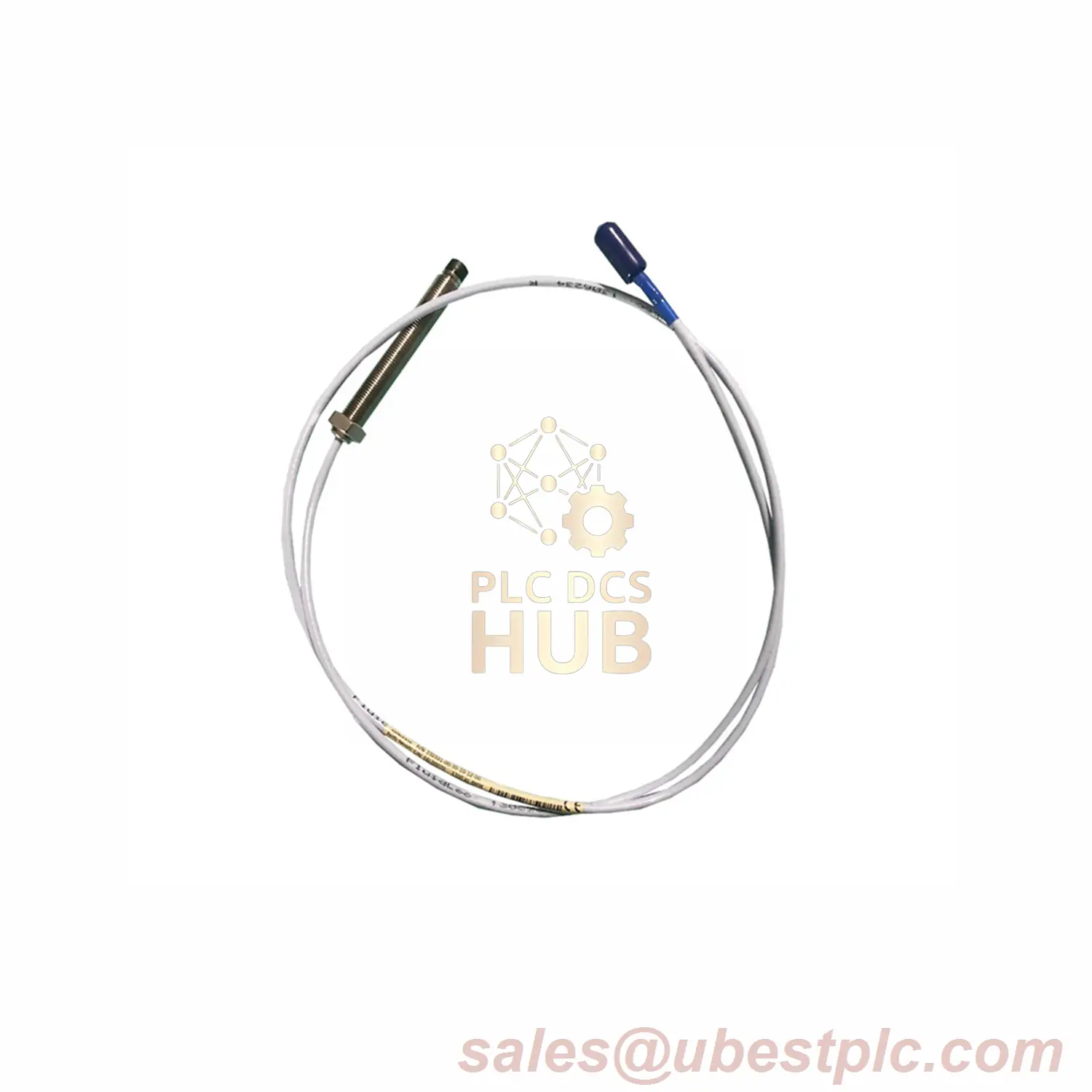

Bently Nevada 3300 XL 11mm Probe 330702-00-24-50-11-00 – Compact Vibration Sensor

Miniature Industrial Monitoring

Ultra-compact 11mm sensor. Works from -51°C (-60°F) to +177°C (+351°F). Armored cable withstands tough conditions. Made in USA with optional COO certificate.

Part Number Guide

[330702] → Base Model
├─ 00 → 0" Unthreaded Length
├─ 24 → 2.4" Case Length
├─ 50 → 5.0m Cable (16.4 ft)
├─ 11 → Miniature ClickLoc®
└─ 00 → No Agency Approvals

Technical Specifications

• Resistance: 7.2Ω ±0.8Ω
• Thread: ½-20 UNF
• Case length: 2.4 inches
• Bend radius: 25.4mm (1 inch)
• Weight: 0.17kg (lightweight)
• Cable type: 75Ω Triaxial FEP
• Max case torque: 45.2 N•m
• Seal material: Viton O-ring
• Tip material: PPS plastic
• Case material: 304 stainless steel

Package Contents

• New probe in factory packaging
• Connector protector
• 12-month warranty

Global Shipping

FedEx | UPS | DHL | Worldwide delivery

Expert Questions

• What is the minimum bend radius? 25.4mm – don’t bend tighter.
• Can I use this below -34°C? Not recommended – may damage seals.
• What is COO certificate? Paper proving US origin.
• How tight should I install? Use 15.2 N•m torque.
• Is pressure testing included? No – contact for custom tests.
