Description

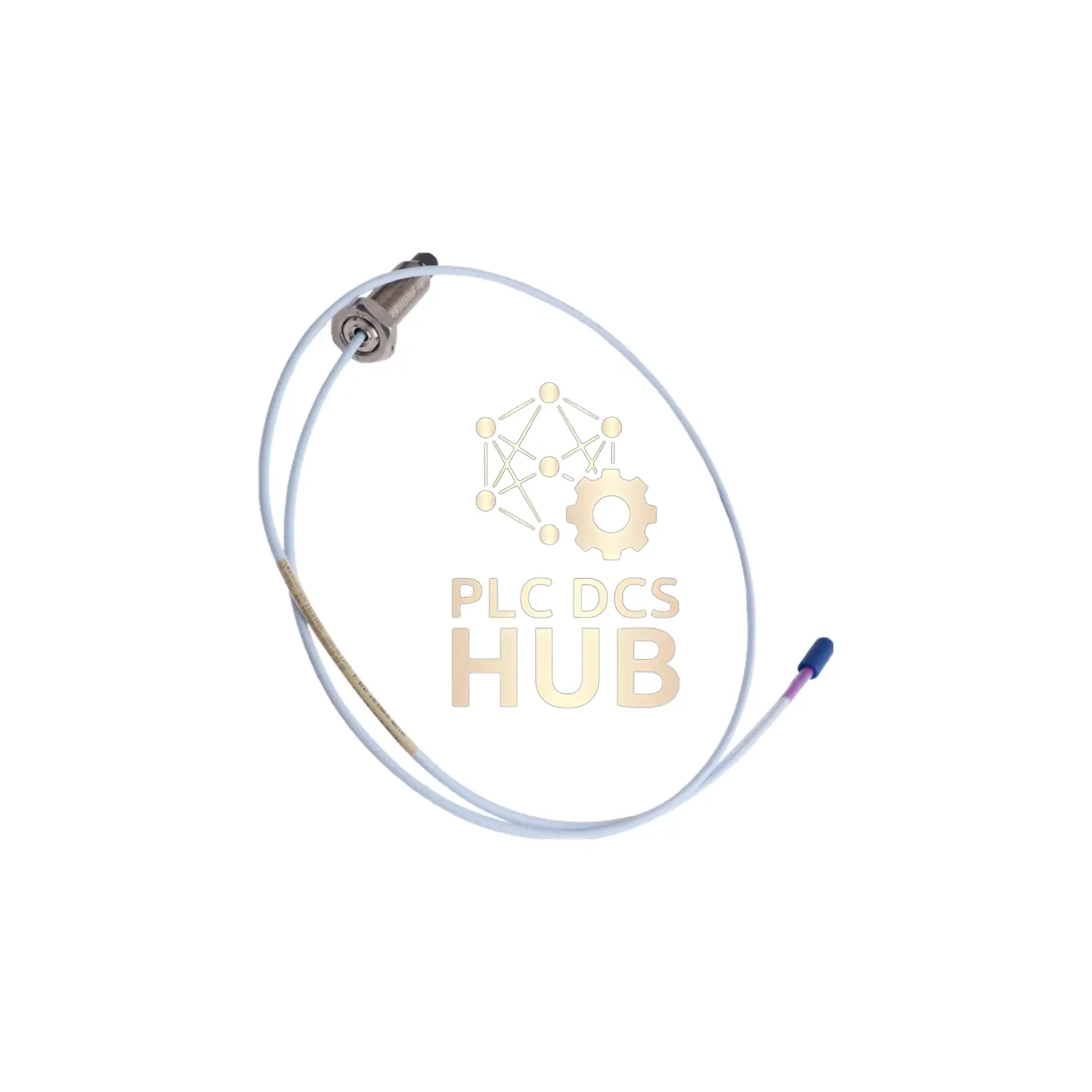

Bently Nevada 330707-00-15-10-02-05 Proximity Probe
Industrial-grade 11mm vibration sensor with multiple safety approvals. Shorter 1.5-inch case for tight spaces. Made in USA with PPS tip. Works in extreme heat and cold.
Complete Model Details
- 330707 = 11mm Probe (5/8-18 UNF thread)
- 00 = 0 in unthreaded length
- 15 = 1.5 in case length
- 10 = 1.0 meter cable
- 02 = ClickLoc connector + standard cable
- 05 = Multiple safety approvals
Key Measurements
- Temperature Range: -51°C to +177°C
- Electrical Resistance: 5.9 Ω ±0.5
- Cable Type: 75 Ω triaxial FEP
- Thread Engagement: Max 0.938 in
- Bend Radius: Min 25.4 mm
Physical Specifications
- Tip: PPS plastic
- Body: AISI 304 stainless steel
- Seal: Viton O-ring
- Shipping Weight: 0.17 kg
Installation Notes
- Use 15.2 N•m torque for mounting
- Max torque: 45.2 N•m
- Hand-tighten connectors only
- Keep above -34°C for best seal life
Safety Approvals
Meets multiple international safety standards (Option 05)
What’s Included
- 1 vibration probe
- Product papers
- 12-month quality guarantee
Shipping
Fast delivery via FedEx, UPS, or DHL
Questions & Answers
Q: What does “05” mean in model number?
A: It has multiple safety approvals for global use
Q: How short is the case?
A: 1.5 inches – good for small spaces
Q: Cable options?
A: Choose 1m, 5m or 9m length
Q: Can it handle wet areas?
A: Yes, has moisture-resistant seal
Q: Warranty details?
A: Covered for 1 year against faults
