330707-00-24-50-02-05 Bently Nevada 3300 XL 11 mm Probe

Description

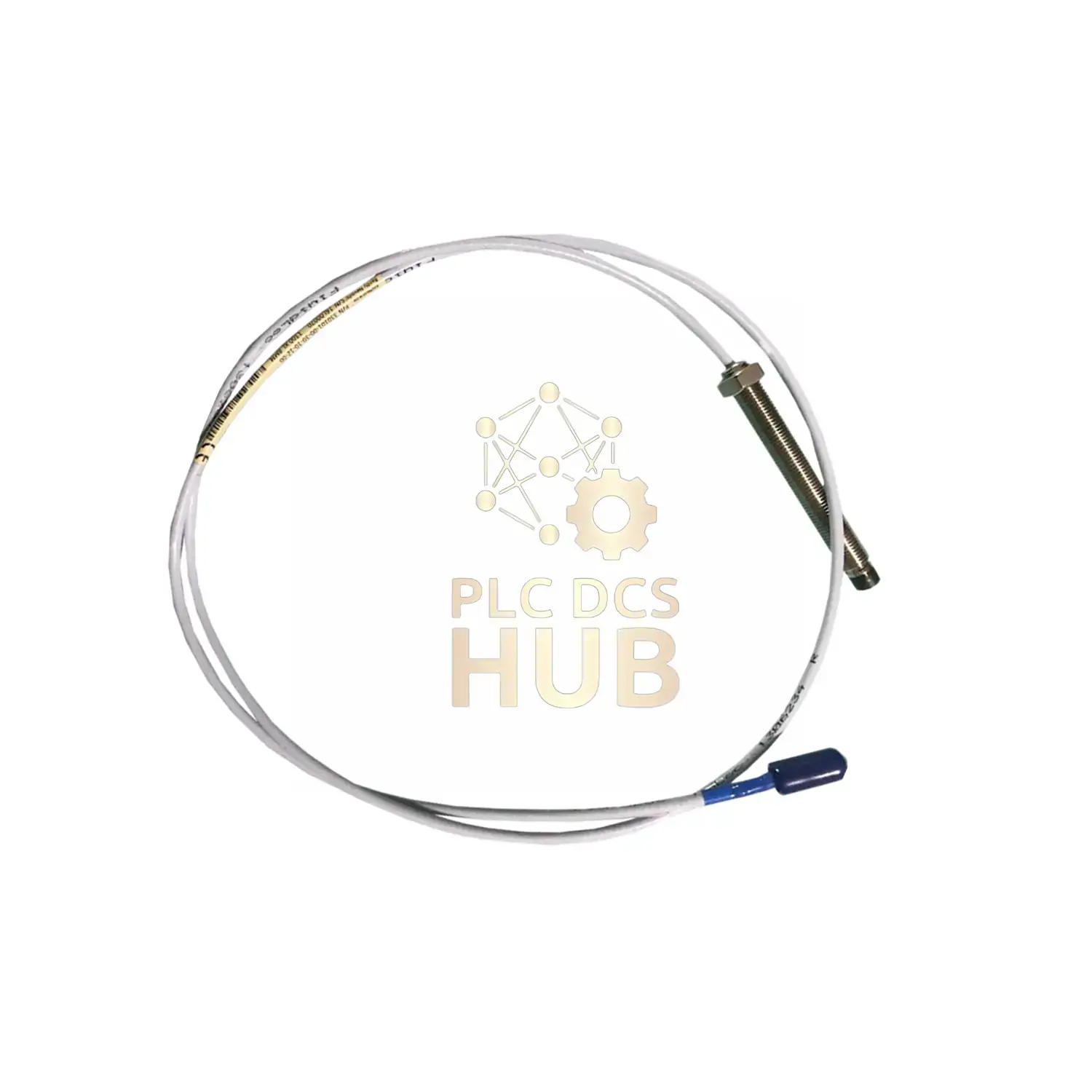

Bently Nevada 3300 XL 11mm Proximity Probe: Heavy-Duty Machinery Monitoring

Complete Product Details

New Bently Nevada 330707-00-24-50-02-05 proximity probe with factory packaging. Made in USA with optional Certificate of Origin. Designed for precise vibration monitoring in industrial systems.

Full Technical Specifications

• Full Part Number Breakdown:
  330707 – Base model
  00 – 0 inch unthreaded length
  24 – 2.4 inch case length
  50 – 5.0 meter cable
  02 – ClickLoc connector
  05 – Multiple approvals
• Brand: Bently Nevada
• Thread: 1/2-20 UNF with armor
• Temperature: -51°C to +177°C operating range
• Probe Resistance: 7.2Ω ±0.8 (5m cable)
• Max Thread Engagement: 0.750 inch
• Case Torque: 15.2 N•m recommended (45.2 N•m max)
• Bend Radius: 25.4mm minimum
• Cable: 75Ω triaxial FEP insulated
• Weight: 0.17 kg

Installation Notes

• Use only with 5m Proximitor Sensors
• Apply 15.2 N•m (133 in•lb) torque maximum
• Keep bend radius over 25.4mm
• Avoid temperatures below -34°C to protect seal

Certifications & Materials

Multiple global approvals (Option 05). Case: AISI 304 stainless steel. Tip: PPS material. Seal: Viton O-ring.

Shipping & Support

Factory new with 12-month warranty. Ships via FedEx/UPS/DHL. Weight: 0.17kg. Optional COO available.

Expert Questions Answered

• Q: Can I use this in freezing environments?
  A: Not below -34°C (-30°F) to avoid seal damage.
• Q: What cable length options exist?
  A: Available in 1m, 5m (this model), or 9m lengths.
• Q: Is pressure testing included?
  A: No, contact for custom pressure tests.
• Q: Can I replace older probes with this?
  A: Yes, compatible with 3300 XL systems.
• Q: Minimum bend radius for armored cable?
  A: 25.4mm (1 inch) with or without armor.
