Description

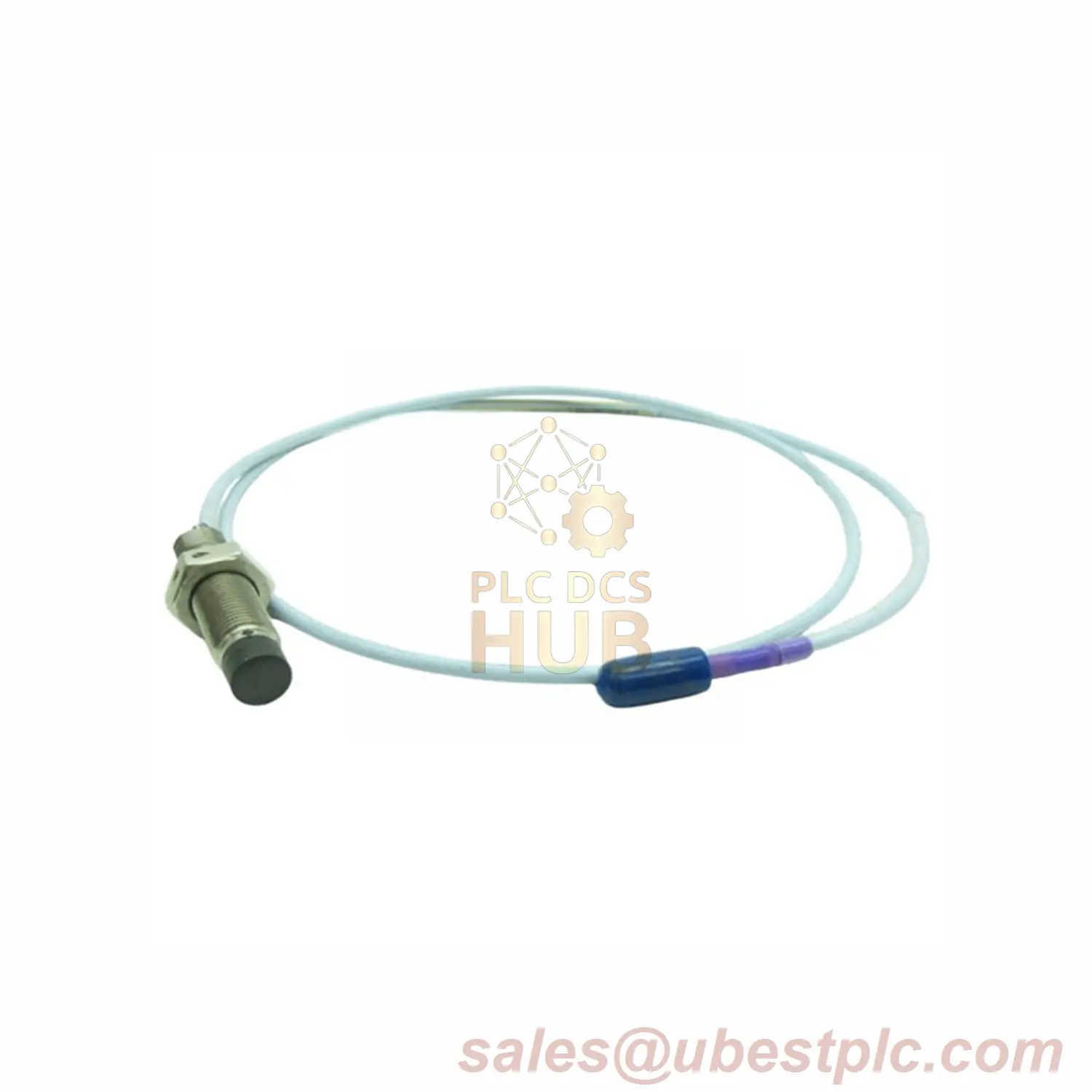

Bently Nevada 330707-00-40-10-02-00 3300 XL 11mm Proximity Probe
Product Highlights
- 1 meter standard cable
- 4 inch long case for deep mounting
- Made in USA
- Stainless steel body
Part Number Details
- 330707: Probe type
- 00: No unthreaded section
- 40: 4.0 inch case length
- 10: 1.0 meter cable
- 02: ClickLoc connector
- 00: No special approvals needed
Technical Specs
- Resistance: 5.9Ω ±0.5Ω
- Cable Type: Triaxial FEP
- Thread Size: 5/8-18 UNF
- Max Thread Depth: 0.938 inches
- Temperature: -51°C to +177°C
- Weight: 0.17 kg
Mounting Guide
- Case Length: 4.0 inches
- Install Torque: 15.2 N•m
- Min Temp: Keep above -34°C
- Cable Bend: Min 25.4mm radius
Pressure Seal
Viton O-ring seals pressure differences. Not tested before shipping. Contact us for custom testing.
Cable Options
Works with 1m, 5m or 9m triaxial FEP cables.
Packaging
- 1 proximity probe
- Factory box
- 12-month warranty
Shipping
Ships worldwide via FedEx, UPS, DHL. USA stock.
Factory Automation Use
Monitors conveyor belt motors. 4-inch case fits tight spaces. Handles factory temperatures from 10°C to 50°C.
Customer Questions
Q: How long is the case?
A: 4.0 inches
Q: What cable comes with it?
A: 1 meter standard cable
Q: Safe temperature range?
A: -51°C to +177°C, but install above -34°C
Q: Thread specifications?
A: 5/8-18 UNF thread
Get Full Guide
Download installation manual: Click for Probe Manual
