Description

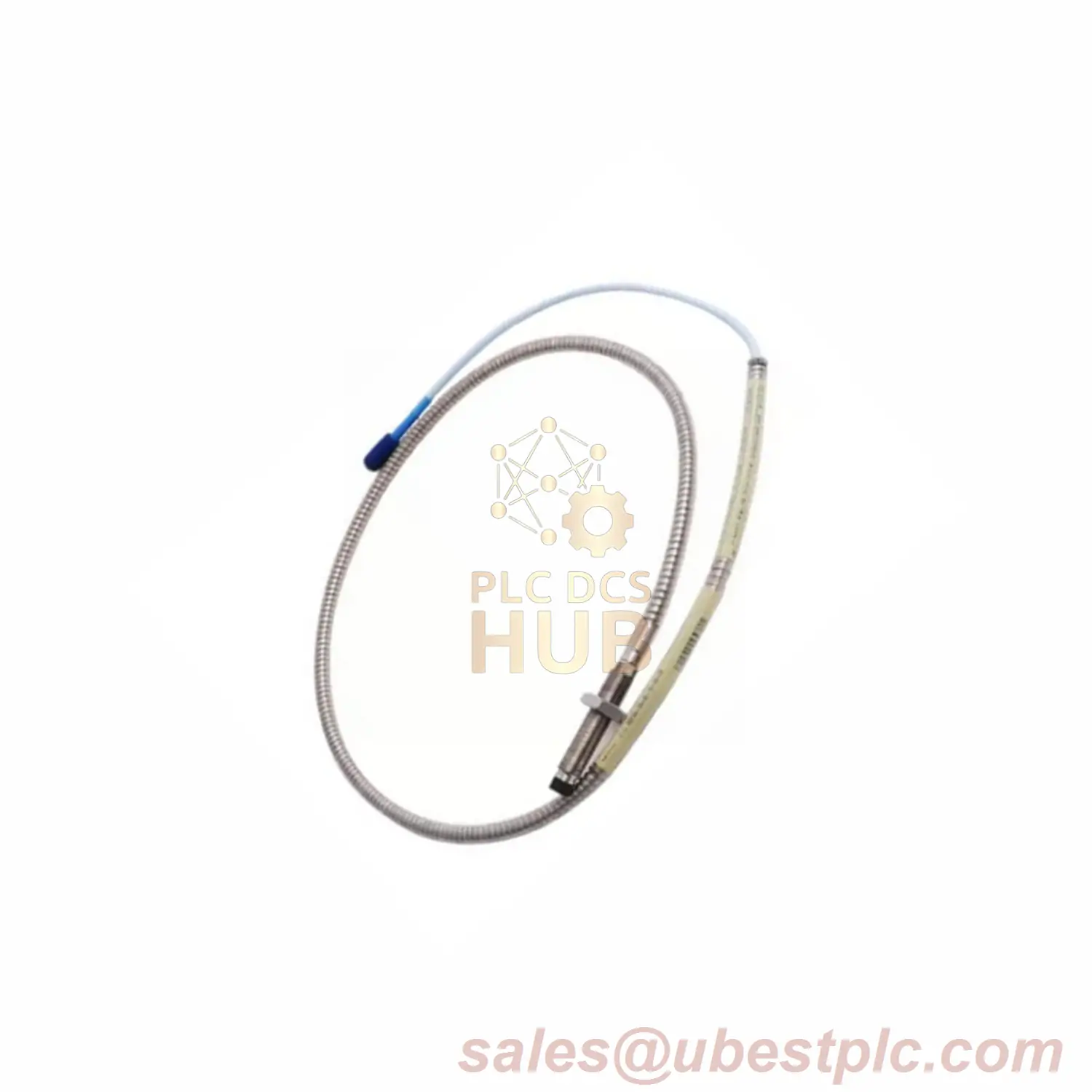

Bently Nevada 3300 XL 11mm Proximity Probe – 5/8-18 UNF Thread
New industrial-grade vibration sensor with FluidLoc cable. Made in USA. Compact 1.0″ case length. 1-year warranty included.
Product Code Explained
330708-00-10-10-11-05 breakdown:
- 330708: 11mm probe base
- 00: 0″ unthreaded length
- 10: 1.0″ case length
- 10: 1.0m cable
- 11: FluidLoc cable with protector
- 05: Multiple agency approvals
Core Specifications
| Cable Type: | 75Ω triaxial FEP |
| Electrical Resistance: | 5.9 ± 0.5 ohms |
| Thread Size: | 5/8-18 UNF |
| Max Thread Engagement: | 0.938″ |
| Weight: | 0.17 kg (0.37 lb) |
| Temperature Range: | -60°F to +351°F |
Key Features
- Triaxial cable for better signal quality
- Viton O-ring pressure seal
- ClickLoc connector with protector
- Works in extreme temperatures
- 1.0m cable length (3.3 feet)
Torque Specifications
- Maximum torque: 45.2 N•m (400 in-lb)
- Recommended torque: 15.2 N•m (133 in-lb)
- Cable bend radius: 25.4mm minimum
Installation Guide
- Clean mounting surface
- Hand-start thread engagement
- Tighten to 15.2 N•m max
- Maintain cable bend radius
- Connect with ClickLoc system
Customer Questions
Q: What’s the cable length?
A: 1.0 meter (3.3 feet) FluidLoc cable.
Q: Can I get certificates?
A: COO available on request.
Q: Is this waterproof?
A: Sealed for pressure, not submersion.
Q: What shipping options?
A: FedEx, UPS, DHL with tracking.
Package Contents
- 3300 XL probe unit
- 1.0m triaxial cable
- ClickLoc connector with protector
- Factory packaging
Warranty & Support
Full 12-month coverage. Ships same day from US stock. Technical help available.
