Description

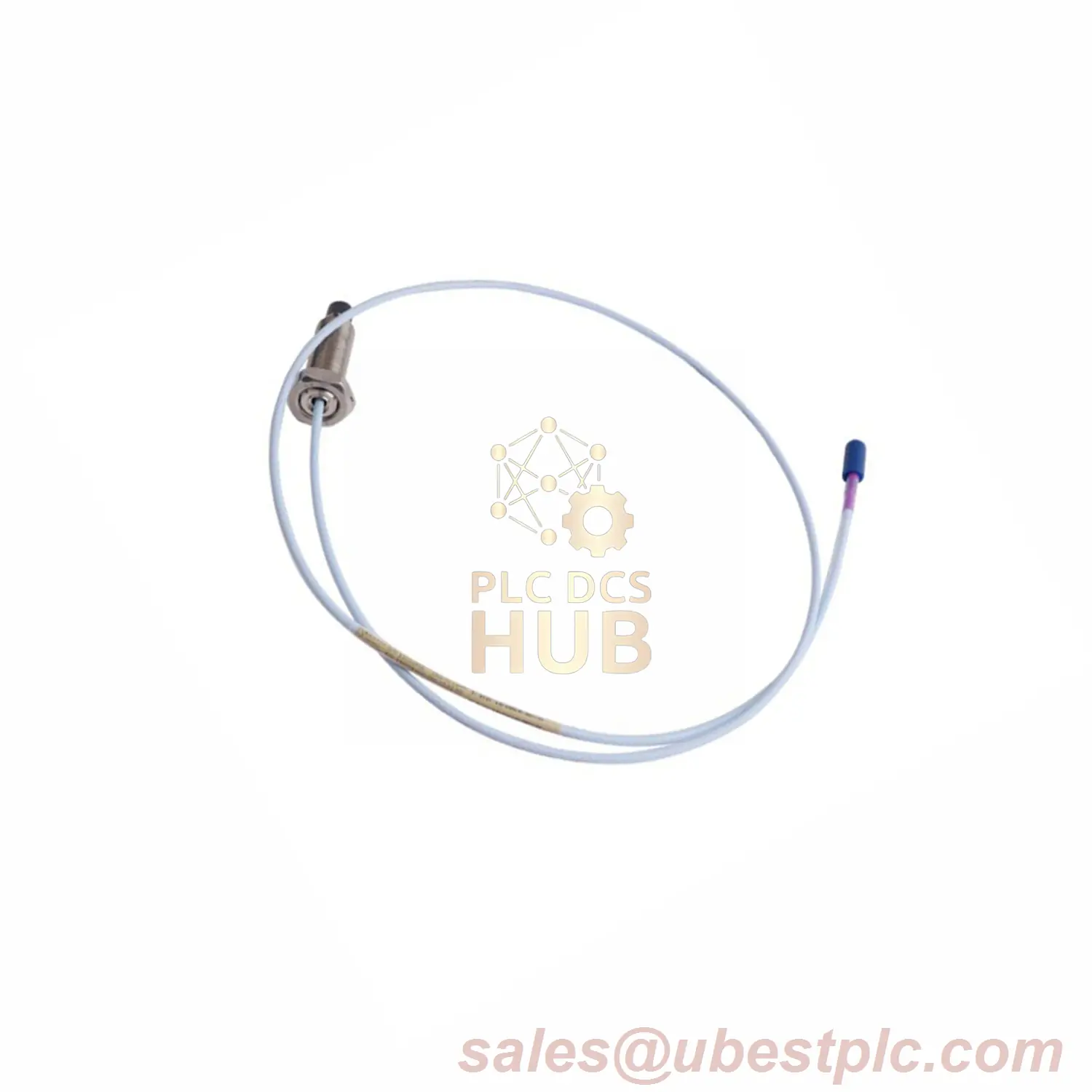

Bently Nevada 3300 XL 11mm Proximity Probe
Part Number Explained
330708-00-10-50-02-05 means:
- 330708 = 11mm probe body
- 00 = 0″ unthreaded length
- 10 = 1.0″ case length
- 50 = 5.0 meter cable
- 02 = Standard ClickLoc connector
- 05 = Multiple approvals
Technical Data
- Cable Length: 5 meters (16.4 ft)
- Resistance: 7.2Ω ±0.8Ω
- Thread: 5/8-18 UNF
- Max Thread Depth: 0.938 inches
- Temperature Range: -51°C to +177°C
- Weight: 0.17 kg
Installation Notes
- For use with 5m Proximitor Sensors only
- Recommended torque: 15.2 N•m
- Do not install below -34°C
- Min bend radius: 25.4mm
Certifications
Meets multiple international safety standards (option 05)
Package Includes
- 1 proximity probe
- Factory packaging
- 12-month warranty
Shipping
Fast delivery via FedEx, UPS, DHL. Ships from USA.
Oil Refinery Application
Monitors turbine vibrations in high-heat areas. Handles temperatures up to 177°C near furnaces. Viton seals prevent gas leaks.
Important Questions
Q: What approvals does it have?
A: Multiple safety certifications (option 05)
Q: Cable length options?
A: Works with 1m, 5m or 9m cables
Q: Minimum safe temperature?
A: Do not use below -34°C
Q: Thread specifications?
A: 5/8-18 UNF with 0.938″ max depth
Download Manual
Get full installation guide: Click for Probe Manual
