Description

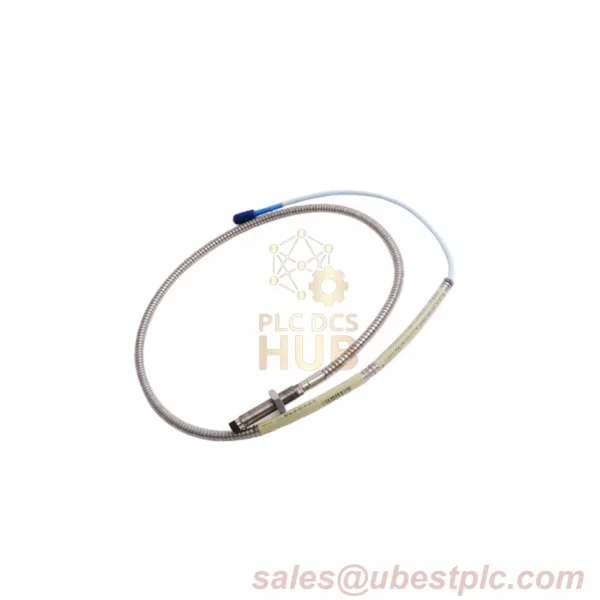

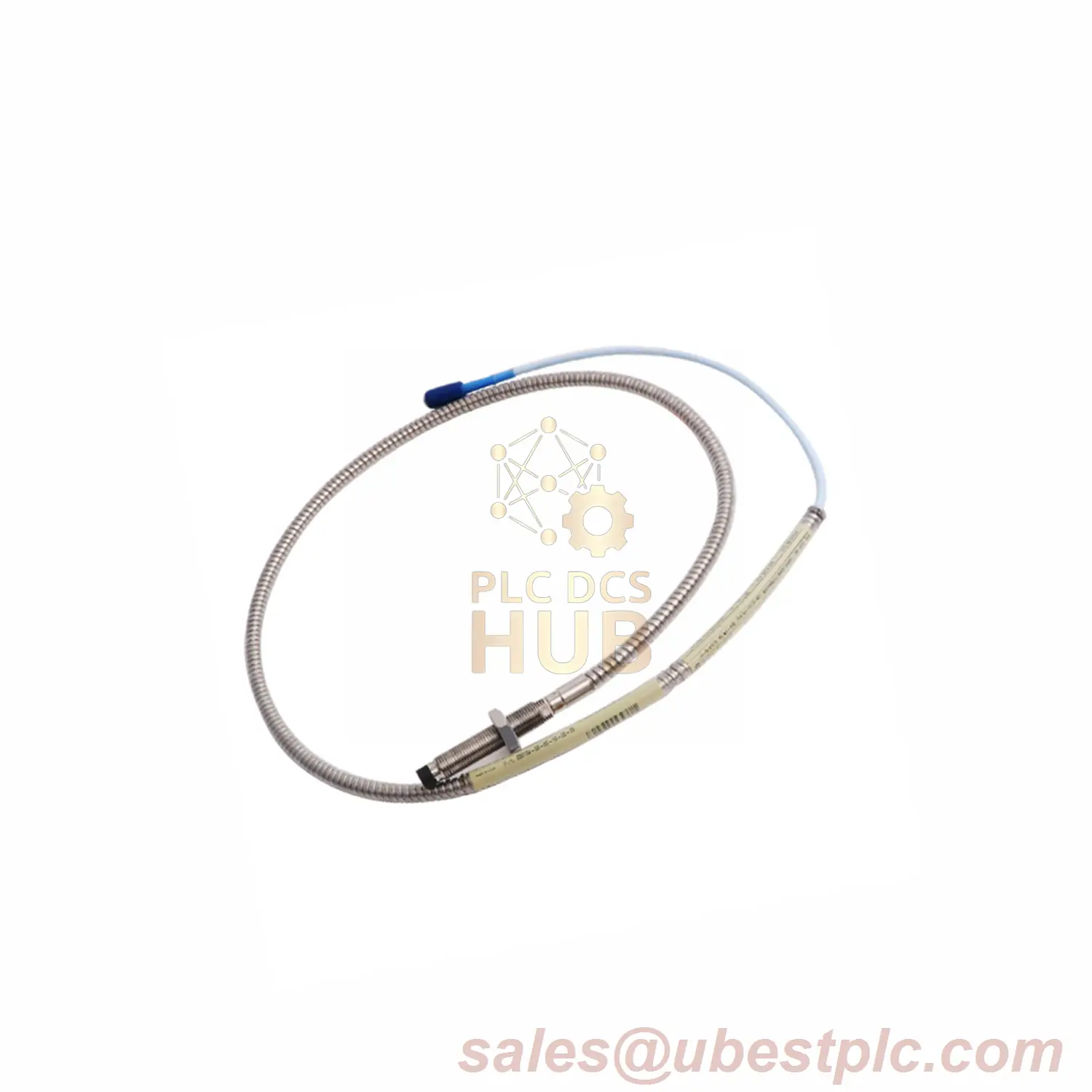

Bently Nevada 3300 XL Proximity Probe – Long Reach 9m Cable
330708-00-24-90-02-05 USA-made industrial sensor with extra-long 9m cable. 2.4″ case, 5/8-18 UNF thread. Multiple agency approvals included.
Part Number Details
- 330708: 11mm probe base
- 00: No unthreaded length
- 24: 2.4″ case length
- 90: 9.0m cable length
- 02: Standard ClickLoc connector
- 05: Global certifications
Key Measurements
| Cable Resistance | 8.5 ± 1.1 ohms |
| Thread Engagement | 0.938″ maximum |
| Bend Radius | 25.4mm minimum |
| Shipping Weight | 0.17 kg (0.37 lbs) |
| Temperature Range | -60°F to +351°F |
Special Features
- Extra-long 9m (29.5ft) cable
- Triaxial design for clean signals
- Viton O-ring pressure seal
- FEP insulated cable
- 2.4″ extended case
Torque Guide
- Max installation torque: 45.2 N•m
- Recommended torque: 15.2 N•m
- Connector torque: Finger tight
Setup Guide
- Clean mounting threads
- Hand-start probe carefully
- Tighten to 15.2 N•m max
- Maintain cable bend radius
- Connect with ClickLoc system
Common Questions
Q: How long is the cable?
A: 9.0 meters (29.5 feet) standard length.
Q: Can this monitor high-speed equipment?
A: Yes, suitable for up to 10,000 RPM machines.
Q: Is the cable waterproof?
A: FEP insulation resists moisture and chemicals.
Q: What shipping options available?
A: FedEx, UPS, DHL with tracking worldwide.
Package Includes
- 3300 XL probe unit
- 9m triaxial cable
- Standard ClickLoc connector
