330709-000-040-50-02-00 Proximity Probes Without Armor Bently Nevada

Description

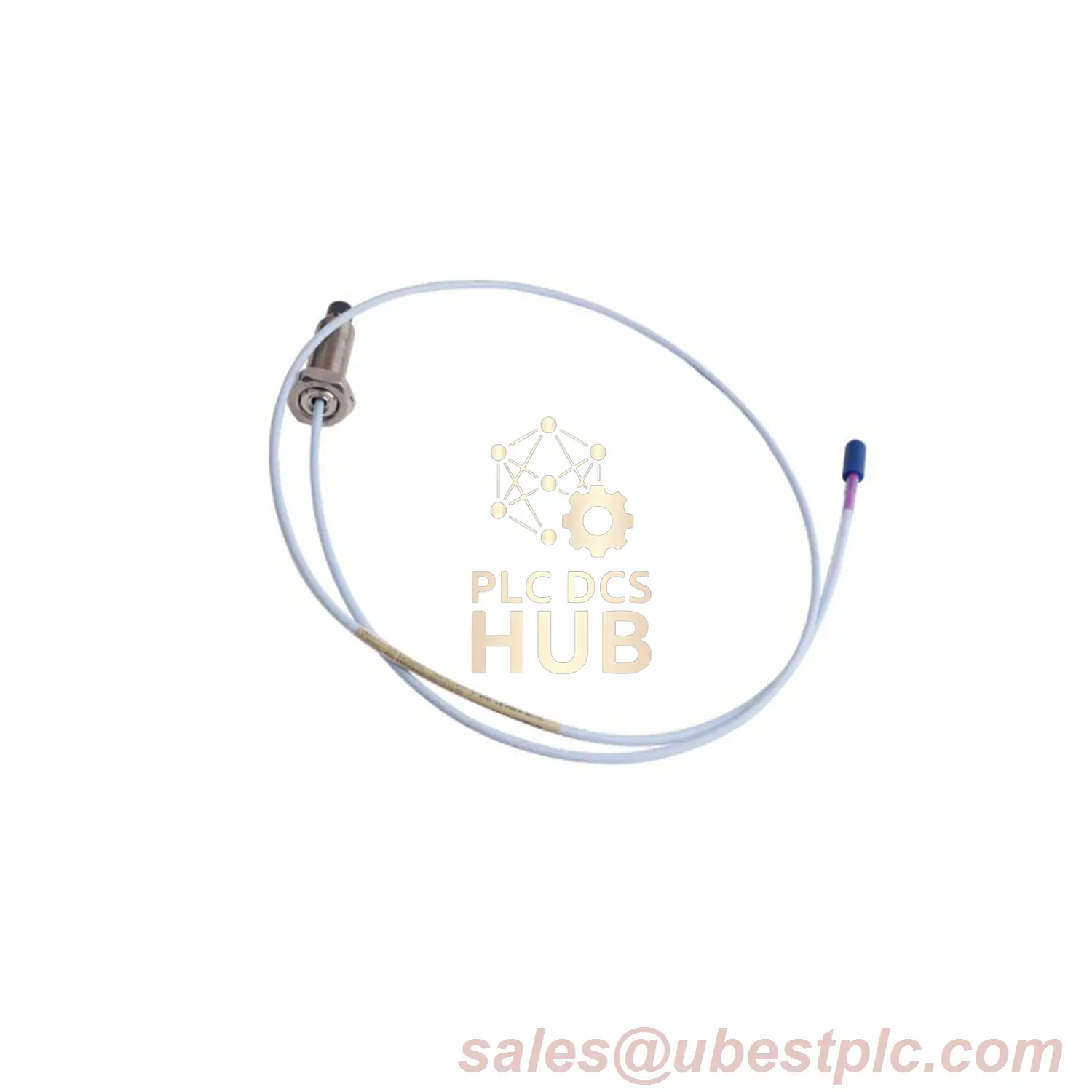

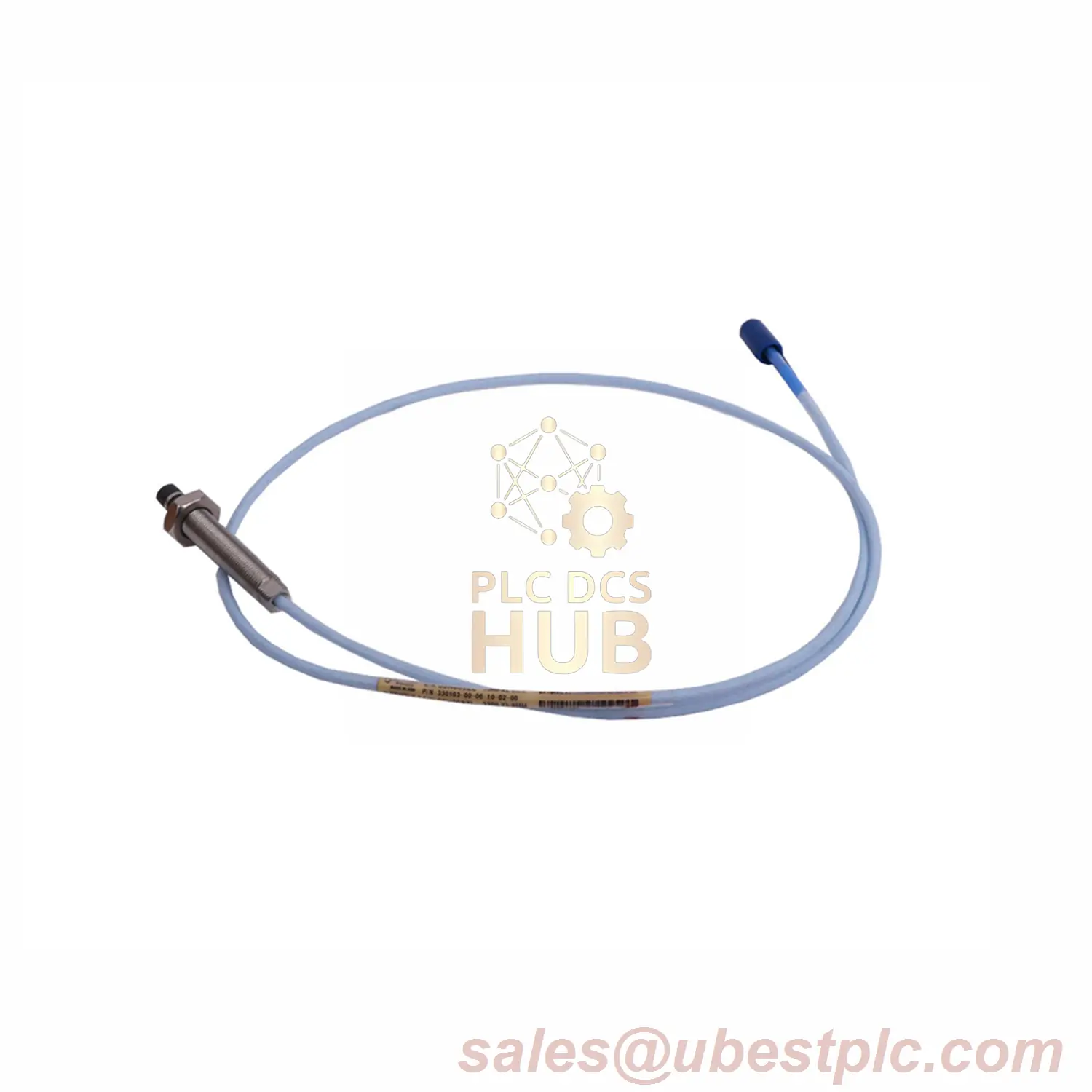

Bently Nevada 3300 XL 11mm Proximity Probe | Model 330709-000-040-50-02-00

Description

Ideal for industrial vibration monitoring, this Bently Nevada 3300 XL 11mm probe combines a rugged stainless steel case with a 5m triaxial cable. Built for harsh environments, it delivers precise measurements for machinery health checks.

Technical Data

• Brand: Bently Nevada
• Model: 330709-000-040-50-02-00
• Type: 3300 XL 11mm Proximity Probe
• Thread: M16 x 1.5
• Unthreaded Length: 0mm (suffix “000”)
• Case Length: 40mm (suffix “040”)
• Cable Length: 5m (suffix “50”) – only works with 5m Proximitor Sensors
• Connector: Miniature coaxial ClickLoc (suffix “02”)
• Resistance: 7.2 ± 0.8 ohms (center to outer conductor)
• Materials: PPS tip, AISI 304 stainless steel case, FEP-insulated cable
• Temp Range: -52°C to +177°C (-62°F to +351°F)

Installation Guide

• Case Torque: 63.3 N•m (560 in•lb)
• Connector Torque: Finger-tight (max 0.565 N•m/5 in•lb)
• Min Bend Radius: 25.4mm (1.0in) – with/without armor
• Max Thread Engagement: 24mm

Compatibility

5m probes are exclusive to 5m Bently Nevada Proximitor Sensors. Not compatible with shorter/longer sensors.

Industrial Solutions

• Extreme Temperatures: Works from -52°C to +177°C; avoids seal failure below -34°C.
• Durability: Stainless steel resists corrosion; FEP cable withstands wear.
• Accuracy: Requires min 30.5mm flat target or 152mm shaft for reliable readings.

FAQ

Q: Can I use this probe with a 3m Proximitor Sensor?
A: No – 5m probes only pair with 5m Proximitor Sensors.

Q: What’s the max connector torque?
A: 0.565 N•m (5 in•lb) – never overtighten.

Q: What’s the probe tip material?
A: PPS (polyphenylene sulfide) for heat resistance.

Shipping: Available via Fedex, UPS, or DHL.
