Description

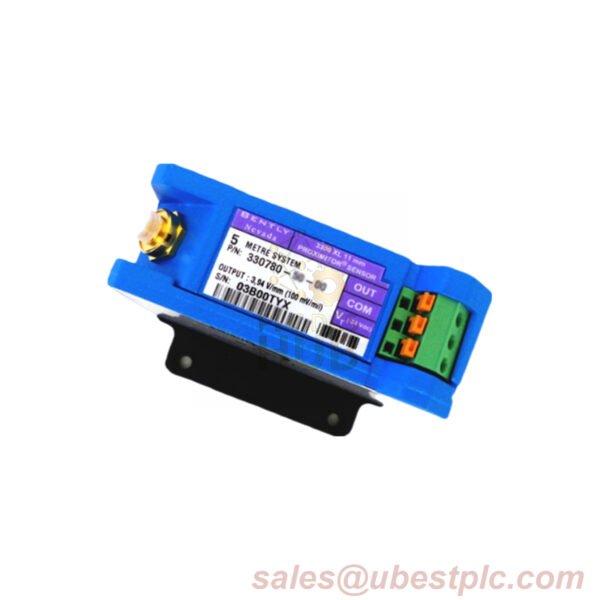

Bently Nevada 3300 XL 11 mm Proximitor Sensor
Made in the U.S.A., this 11 mm Proximitor Sensor 330780-50-CN combines CN country-specific certifications with advanced RFI/EMI immunity for industrial reliability. Designed for panel or DIN-rail mounting, it features SpringLoc terminals for tool-free wiring and complies with CE standards without shielded conduit.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330780-50-CN |
| Suffix Codes | 50: 5.0 m Panel Mount CN: Country-Specific Certification |
| Dimensions (HxWxD) | 6.35 cm x 6.12 cm x 8.13 cm |
| Input Compatibility | 3300 XL 11 mm Proximity Probe |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| Material | A380 Aluminum Housing |
| Temperature Range | Operating: -52°C to +100°C Storage: -52°C to +105°C |
| Humidity Resistance | 100% condensing (non-submersible) |
Contact Us: For custom calibration or technical support, email sales@ubestplc.com.
