Description

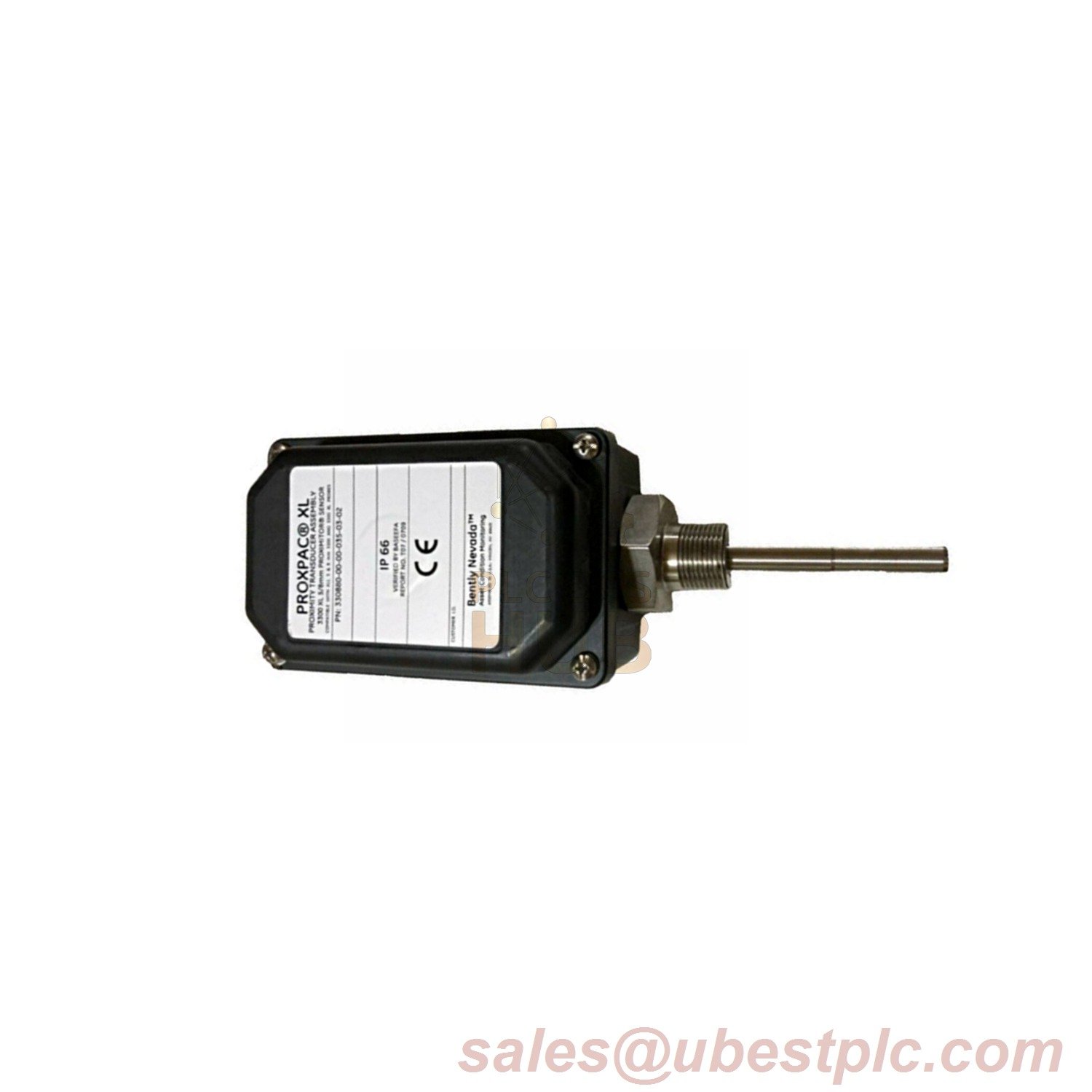

Bently Nevada PROXPAC XL Proximity Transducer
Engineered for heavy-duty industrial applications, the Bently Nevada 330881-28-07-155-03-02 features a 155mm deep penetration probe and M20 fittings for versatile mounting. With a 70mm standoff adapter and BASEEFA-certified IP66 housing, this transducer excels in high-vibration, extreme-temperature environments. Includes CSA-validated impact resistance and precision linearity for critical machinery monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-07-155-03-02 (Suffix: 28=8mm Probe, 07=70mm Adapter, 155=155mm Penetration, 03=M20 Fittings) |
| Electrical Output | 50Ω / 7.87 V/mm ±5% ISF |
| Mechanical Load | 912 N (205 lbf) axial housing strength |
| Sealing System | Neoprene O-ring + UV-resistant PPS housing |
| Vibration Isolation | Extra Soft Silicone (BASEEFA T07/0709) |
| Frequency Range | 0-10 kHz (±3 dB @ 305m cable) |
Key Advantages
- Deep 155mm probe penetration for challenging installations
- M20 threaded fittings with dual stainless steel plugs
- Withstands 7J impacts (-39°C to +115°C)
- ±0.025mm linear deviation across 0°C to +45°C
Contact: For COO or bulk orders, email sales@ubestplc.com.
