330901-22-12-10-02-00 Bently Nevada 3300 NSv Probe

Description

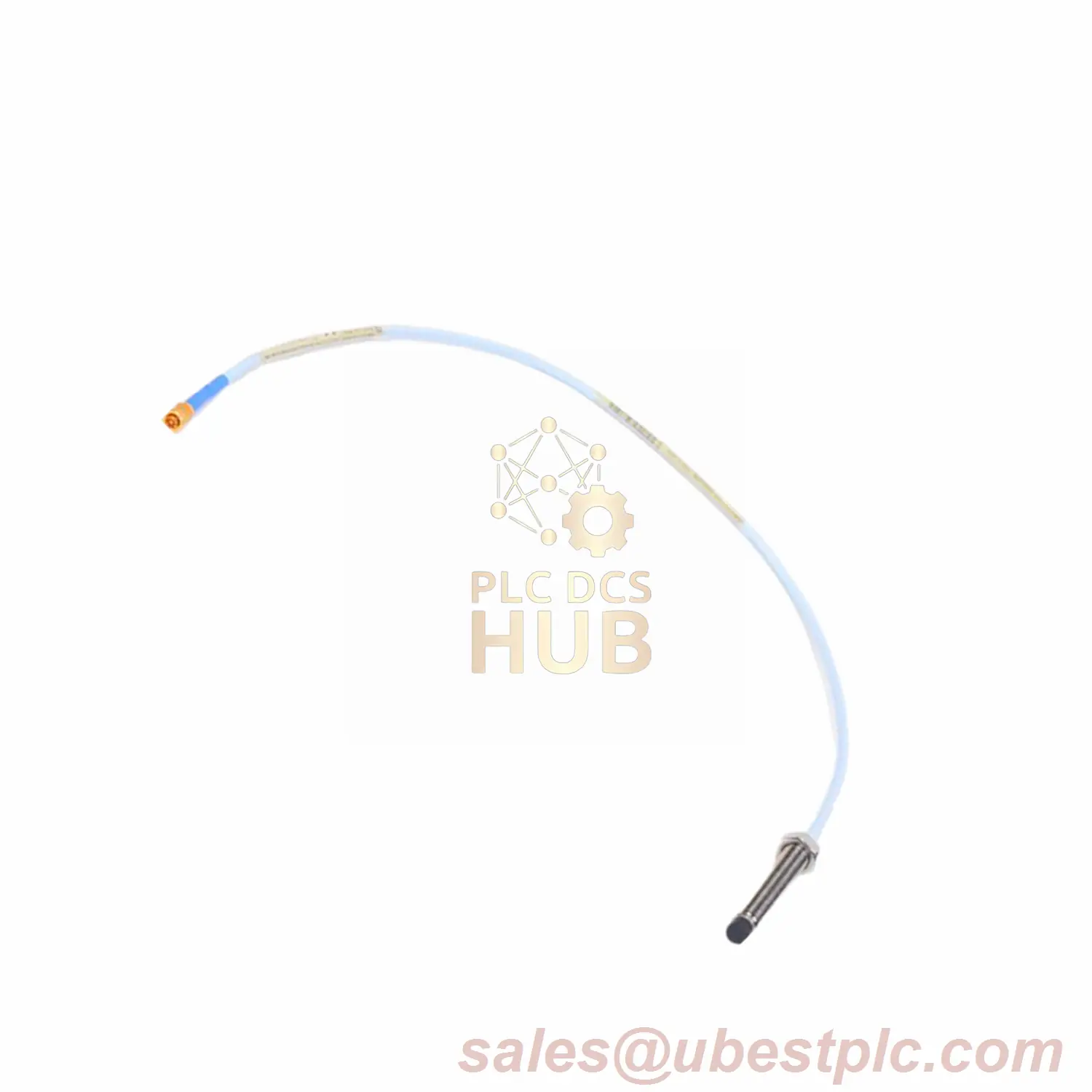

Bently Nevada 3300 NSv Proximity Probe (Product No: 330901-22-12-10-02-00)

1-Year Warranty Included | Material Quality: AISI304 SST Case & PPS Tip | Made in U.S.A

Key Features & Suffix Decoding

• Suffix -22: Unthreaded Length = 2.2 inches (55.88 mm)
• Suffix -12: Case Length = 1.2 inches (30.48 mm)
• Suffix -10: 1.0 Meter Cable (39 inches / 990 mm total)
• Suffix -02: ClickLoc Mini-Coaxial Connector
• Suffix -00: No Agency Certification Required

Technical Specifications

• Resistance: 4.2Ω ±0.5Ω @1m length
• Torque Limits: Max 7.3N·m (65in·lb) | Recommended 5.1N·m (45in·lb)
• Thread Engagement: 0.375in (9.53mm) max for 1/4-28 UNF
• Temperature Range: -52°C to +177°C (Operational)
• Pressure Seal: Viton O-ring (Non-pressure-tested)
• Weight: 14-150g (0.5-5.3oz)

Critical Notes

•  Avoid sustained exposure below -34°C (-30°F) to prevent seal failure
•  Cable options: 0.5/1/5/7 meters with FEP insulation
•  Compatible with standard 75Ω coaxial systems
