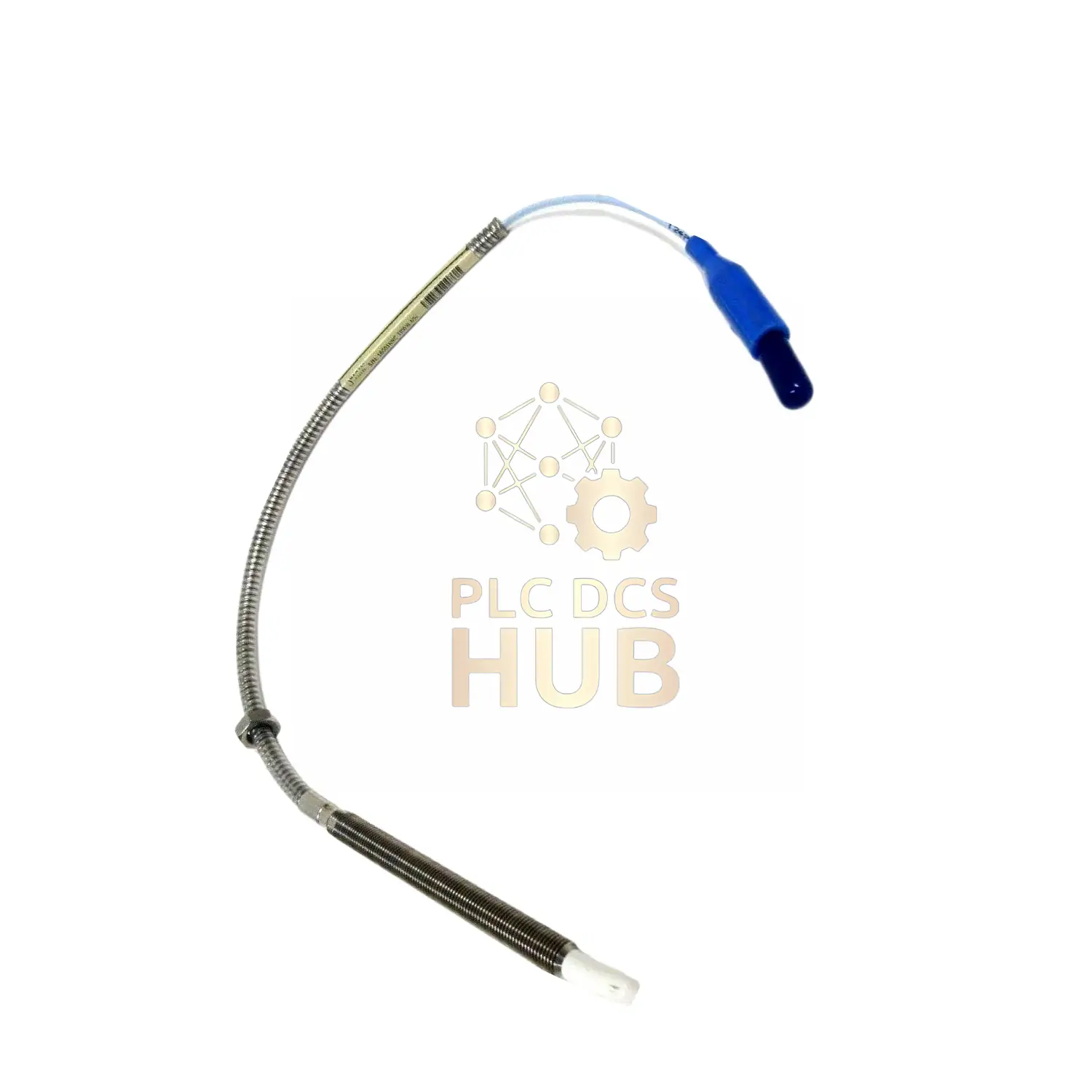

Bently Nevada 3300 NSv Armored Proximity Probe – Industrial-Grade Durability
Description
Factory-new armored probe with stainless steel protection and full warranty. Features M8X1 threading with 100mm case length for challenging industrial environments. Provides superior chemical resistance and measurement accuracy for critical machinery.
Technical Specifications
Brand: Bently Nevada
Model: 330904-00-10-05-12-00
Linear Range: 1.5 mm (60 mils)
Accuracy: ±0.06 mm deviation
Output: -1 to -13 Vdc
Temp Range: -52°C to +177°C
Resistance: 4.0Ω ±0.5Ω
Case Length: 100 mm
Installation Guide
- Optimal Gap: 1.0 mm (40 mils)
- Torque Limit: 5.1 N•m (45 in•lb)
- Min Target: Ø13mm flat surface
- Thread Engagement: 12 mm max
- Cable Bend: >25.4mm radius
Compatibility
Direct replacement for 3300 RAM probes. Electrically identical to previous models with enhanced durability. Maintains calibration with existing systems.
Certifications
Standard industrial compliance (Option 00). Viton O-ring pressure seal. No special approvals required.
Package Includes
- 330904-00-10-05-12-00 armored probe
- 0.5m FluidLoc cable with ClickLoc
- Factory documentation
Warranty & Shipping
12-month warranty. Ships worldwide via FedEx, UPS, or DHL. Express delivery available.
FAQ
Q: Cable length options?
A: Available in 0.5m, 1m, 5m or 7m versions
Q: Pressure testing available?
A: Contact for custom pressure testing services
Q: Armor material?
A: AISI 304 stainless steel protection
