Description

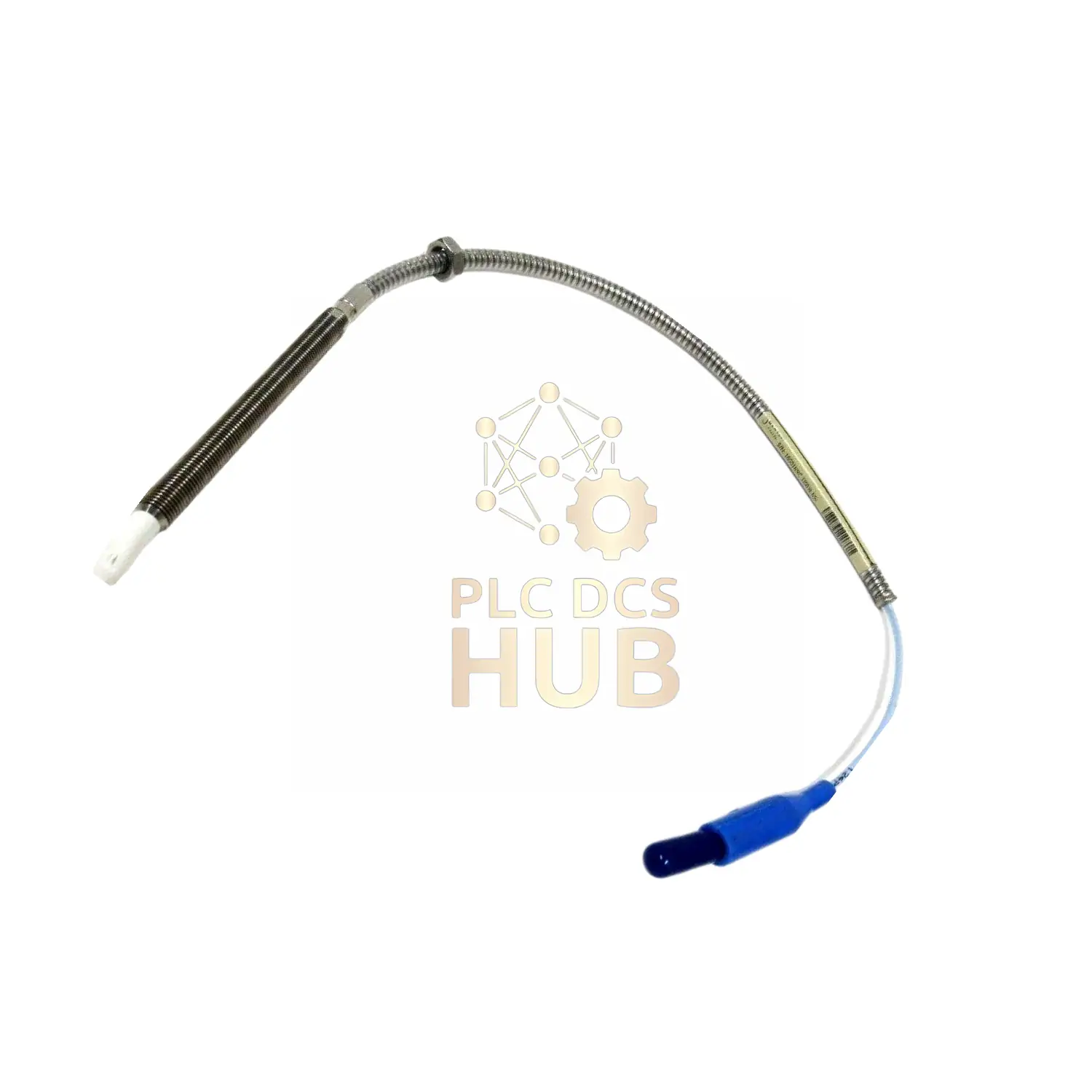

Bently Nevada 3300 NSv Extended Reach Proximity Probe
New armored sensor with 150mm case and short 0.5m cable. Factory sealed with 12-month warranty.
Special Features
- Extra-long 150mm probe body
- Compact 0.5 meter cable
- Stainless steel armor protection
- Multiple industrial certifications
Understanding Your Part Number
330904-00-15-05-01-05 means:
- 330904 – Armored probe type
- 00 – Zero unthreaded length
- 15 – 150mm case length
- 05 – 0.5 meter cable
- 01 – ClickLoc connector with protector
- 05 – Multiple safety approvals
Technical Specifications
| Measurement Range | 1.5mm (60 mils) |
| Accuracy Level | ±0.06mm (±2.3 mils) |
| Temperature Limits | -52°C to +177°C |
| Cable Type | 75Ω FEP coaxial |
| Electrical Resistance | 4.0Ω ±0.5Ω |
Installation Guide
- Position 1.0mm from target surface
- Hand tighten with max 0.56 N•m torque
- Allow minimum 25.4mm cable bend radius
- Max 12mm thread engagement
Compatibility
- Fits 3300 XL NSv monitoring systems
- Replaces older 3300 RAM probes
- Works with shielded triad field wiring
Package Includes
- Armored proximity probe
- Connector protector
Shipping & Support
- Global delivery via FedEx/UPS/DHL
- 12 month warranty
- Quick dispatch from stock
Frequently Asked Questions
Q: When should I use the 150mm case?
A: When measuring through thick machinery walls
Q: Can I use this in high pressure areas?
A: Viton seal handles pressure differences (contact for testing)
Q: What certifications are included?
A: Multiple industrial safety standards (option 05)
Q: Is the probe tip replaceable?
A: No, it’s permanently mounted to the case
