Description
Product Overview

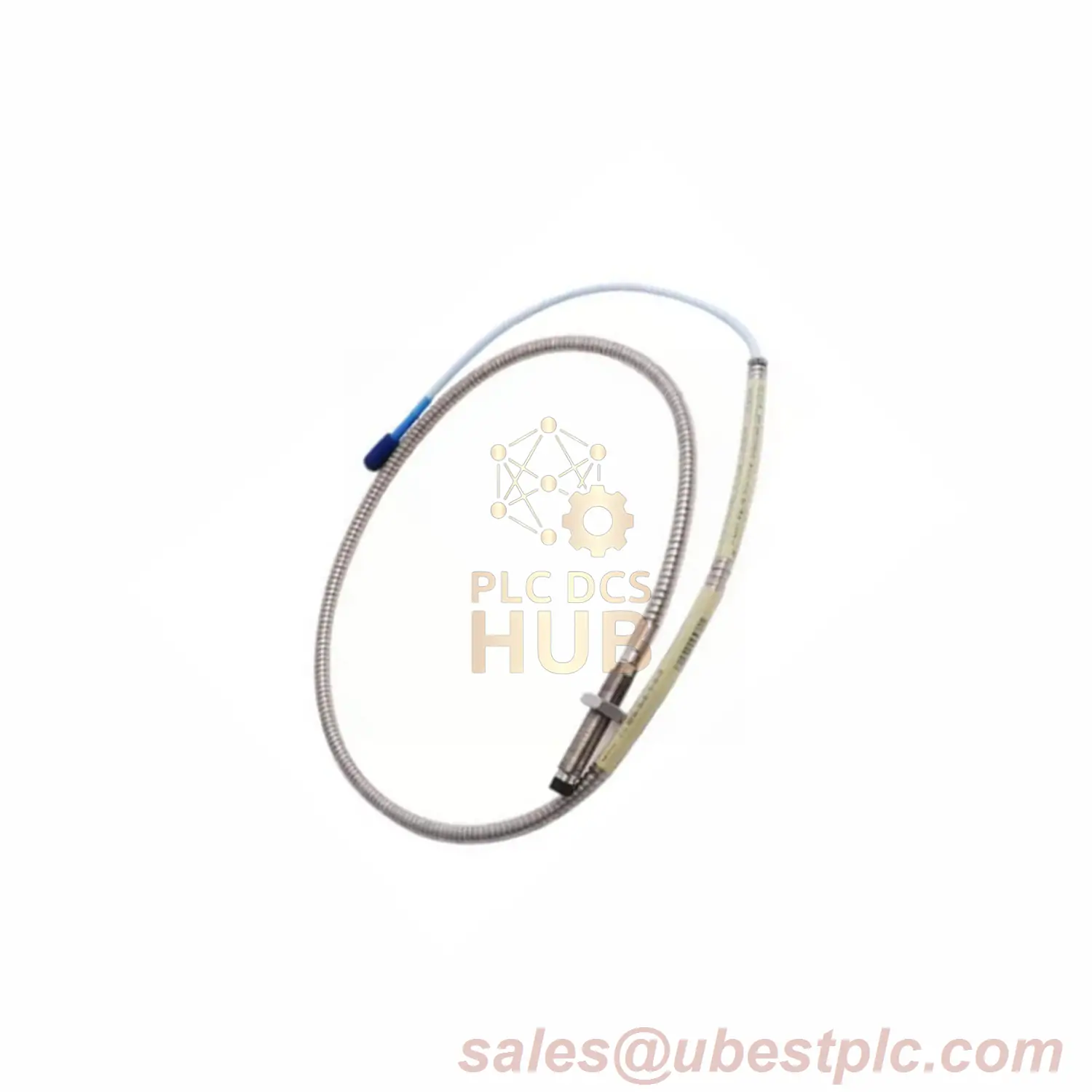

The Bently Nevada 330905-05-08-05-02-05 is a new proximity probe with a 1-year warranty. It has an M10X1 thread, 50 mm unthreaded length, and works in extreme temperatures (-52°C to +177°C). Comes with a 0.5-meter cable and mini ClickLoc connector.
Key Details for 330905-05-08-05-02-05
- Part Number Codes: -05-08-05-02-05 = 50 mm length, 80 mm case, 0.5m cable, ClickLoc connector, multiple approvals.
- Probe Resistance: 4.0Ω ±0.5Ω (0.5m cable).
- Cable Specs: 0.220Ω/m (center), 0.066Ω/m (shield).
- Works With: Older 3300 RAM probes and cables.
Performance
- Measure Range: 1.5 mm (0.25–1.75 mm from target).
- Accuracy: ±0.06 mm error, 7.87V/mm output.
- Fast Response: 0–10,000 Hz (up to 305m cable).
- Small Shafts: Works on shafts as small as 8.9 mm (best ≥13 mm).
Durability
- Materials: PPS plastic tip, stainless steel case.
- Pressure Seal: Viton O-ring (not tested).
- Bend Safely: Minimum 25.4 mm radius.
- Installation: Tighten to 7.5 N·m (max 22.6 N·m).
Contact & Warranty
Includes 1-year warranty. Questions? Email sales@ubestplc.com
