Description

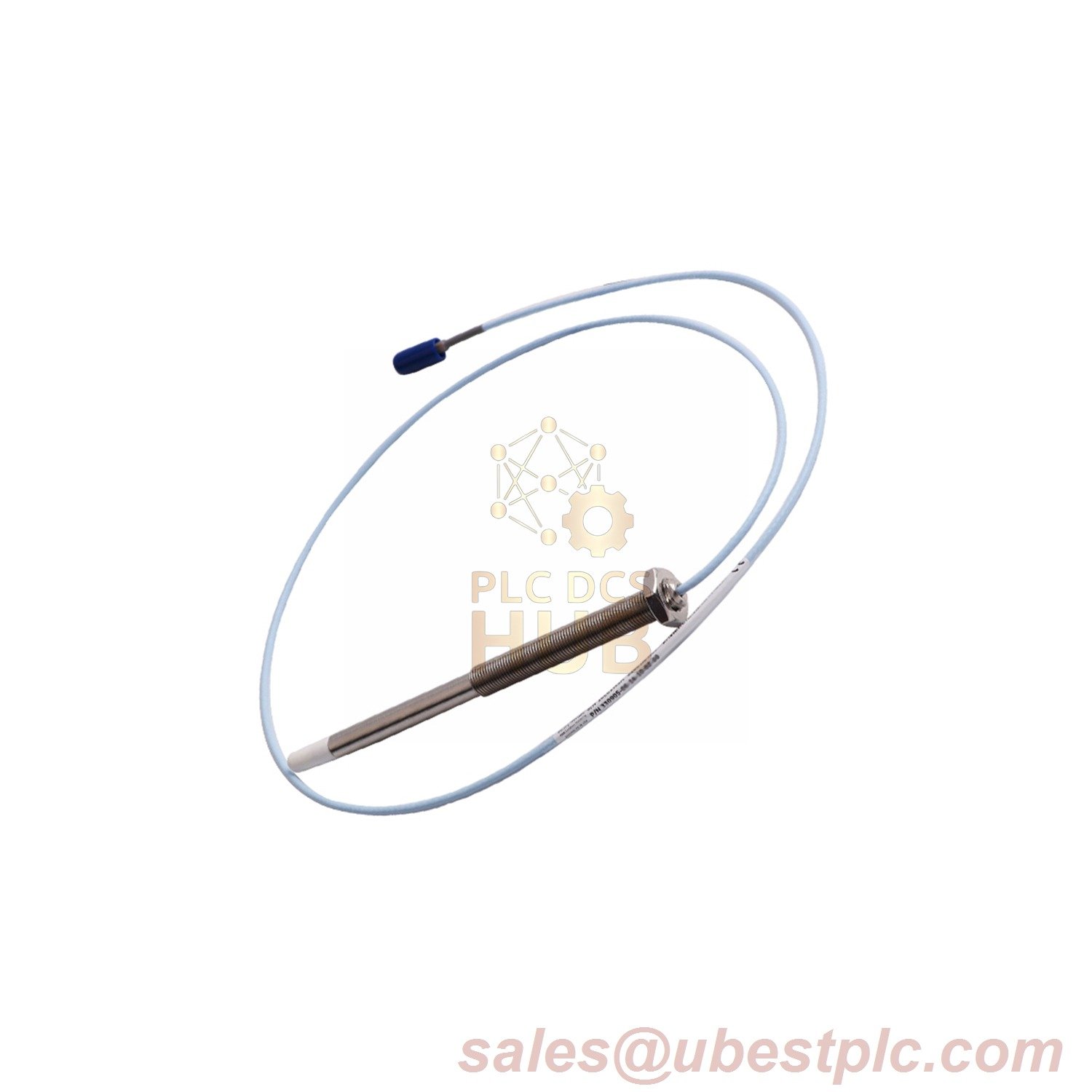

Bently Nevada 3300 NSv Proximity Probe (Model: 330905-12-22-05-02-05)
Product Overview
The 330905-12-22-05-02-05 is a multi-certified industrial probe featuring 120mm unthreaded section and 50mm case length. With 0.5m armored cable and ATEX/CSA/IECEx certifications, it operates from -52°C to +177°C, designed for hazardous area monitoring in compressors and critical rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number Code | 12(120mm Unthreaded)-22(50mm Case)-05(0.5m)-02(ClickLoc)-05(Multi-Cert) |
| DC Resistance | 4.0Ω ±0.5 @ 0.5m |
| Linear Range | 0.25–1.75mm (±0.06mm) |
| Frequency Response | 0-10 kHz (±3dB) |
| Pressure Rating | Viton® O-ring (10 bar) |
Key Features
- 45% longer unthreaded section for secure mounting in thin-wall housings
- Compact 50mm case length for space-constrained installations
- Gold-plated ClickLoc connectors with vibration lock
Why Choose This Model?
- Dual-layer EMI shielding reduces signal noise by 60%
- PPS tip resists chemical attack (pH 1-13)
- Short 0.5m cable prevents signal degradation in cabinet routing
Contact Support
For certification documents and lead times:
Email: sales@ubestplc.com
