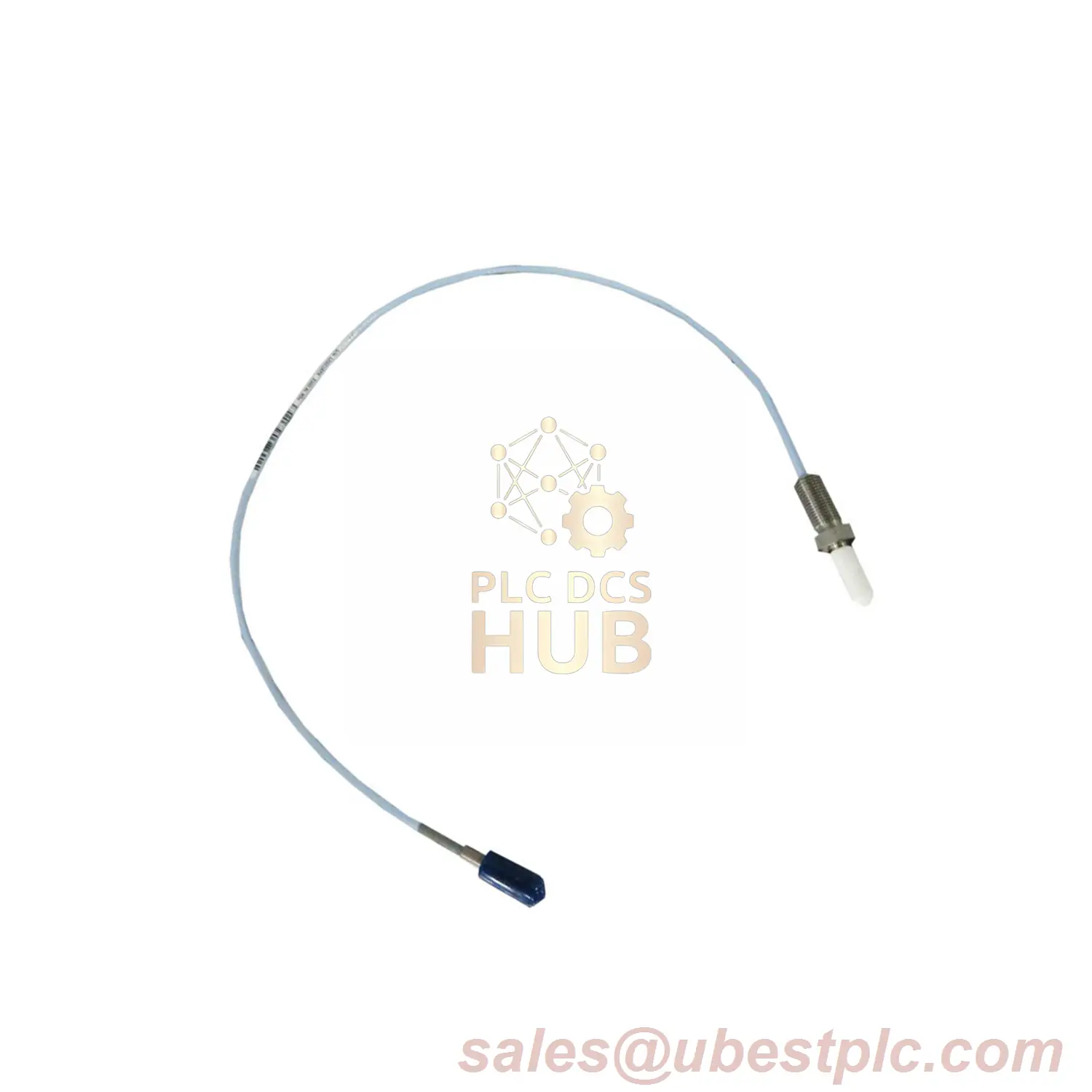

Bently Nevada 3300 NSv Reverse Mount Probe: Long-Reach Vibration Monitoring
Product Overview
Engineered in the U.S.A., the Bently Nevada 330906-02-12-70-02-00 features an extended 7-meter cable for hard-to-reach installations. This reverse mount vibration probe delivers superior chemical resistance and performance in process compressors. Gold-plated ClickLoc connectors and patented TipLoc molding ensure reliable operation in extreme industrial environments.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Reverse Mount Probe
- Full Suffix: 330906-02-12-70-02-00
- Measurement Range: 1.5 mm (60 mils)
- Output Signal: -1 to -13 Vdc
- Resistance: 5.9 ± 0.9 ohms
- Operating Temp: -52°C to +177°C
- Cable Length: 7.0m (23 ft) with ClickLoc connector
Installation Guide
- Optimal gap: 1.0 mm (40 mils)
- Max torque: 11.3 N•m (100 in•lb)
- Max wiring: 305 meters (shielded triad cable)
- Thread engagement: 15 mm max for M10x1
System Compatibility
Directly compatible with 3300 XL NSv Proximitor Sensors. Gold-plated connectors maintain secure connections in high-vibration machinery.
Packaging Contents
- 1x Probe assembly (AISI 304 stainless steel)
- PPS polymer tip with Viton O-ring seal
- Note: Certificate of Origin available separately
Shipping & Warranty
Global delivery via FedEx, UPS, or DHL. 12-month manufacturer warranty included.
Industrial Solutions
- Extended Reach: 7m cable for remote sensor placement
- Chemical Resistance: Superior to 3300 RAM probes
- Extreme Conditions: Operates from -52°C to +177°C
Frequently Asked Questions
Q: What’s the maximum cable length?
A: This model features a 7.0 meter (23 ft) cable (suffix 70)
Q: Minimum safe operating temperature?
A: Avoid sustained exposure below -34°C (-30°F)
Q: What torque should be applied?
A: Use 11.3 N•m (100 in•lb) for 3/8-24 threads
