Description

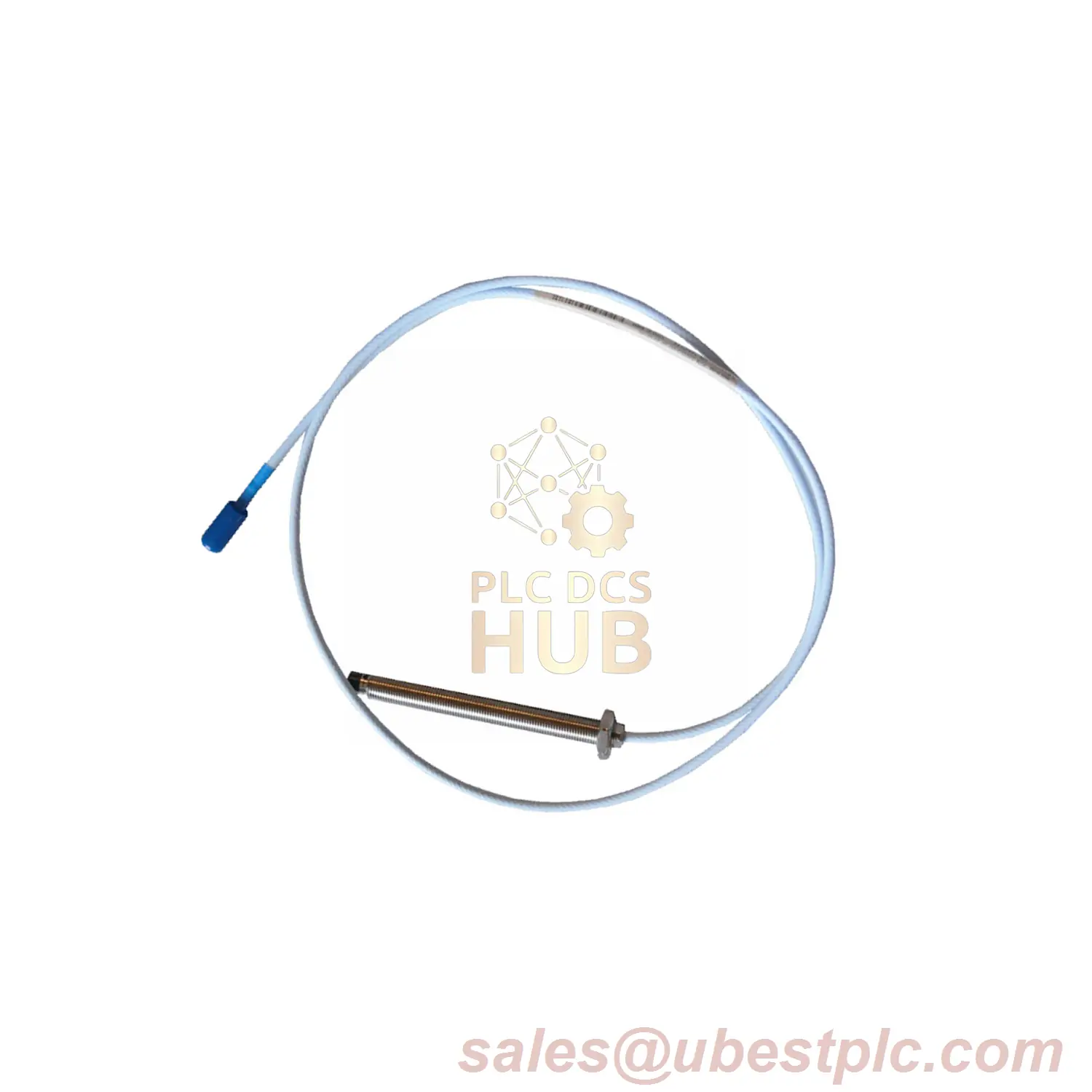

3300 NSv Proximity Probe (Model: 330908-00-36-05-02-05)
Premium-quality vibration monitoring probe designed for industrial applications, manufactured in the U.S.A with 1-year warranty.
Core Specifications
• Thread: 3/8-24 UNF (unarmored)
• Case Material: AISI304 stainless steel
• Tip Material: Polyphenylene sulfide (PPS)
• Weight: 14–150 g (0.5–5.3 oz)
Configuration Options for 330908-00-36-05-02-05
• Unthreaded Length: 00 = 0.0 in
• Case Length: 36 = 3.6 in
• Total Length: 05 = 0.5 m (20 in)
• Connector: 02 = Miniature coaxial ClickLoc + standard cable
• Approvals: 05 = Multiple agency certifications
Performance Parameters
• DC Resistance: 4.0 ± 0.5 Ω (0.5 m cable)
• Torque Limits: Max 33.9 N•m (300 in•lb) / Recommended 11.3 N•m (100 in•lb)
• Thread Engagement: ≤ 0.563 in
Environmental Ratings
• Operating Temp: -52°C to +177°C (-62°F to +351°F)
• Storage Temp: -52°C to +177°C
• Pressure Seal: Viton O-ring (not pressure-tested pre-shipment)
Support & Warranty
• Warranty: 12 months from date of purchase
• Contact: sales@ubestplc.com | +86 180 3000 5825
